SPECIFICATIONS

Antenna Type: Retractable

Application: Home

Brand Name: XIAOMI

Certification: CE

Feature 1: be3600 Gigabit Version

Feature 2: router wifi 7

Feature 3: mesh wifi 7

Feature 4: xiaomi be3600

Feature 5: xiaomi router

Feature 6: wifi 7 mesh router

Feature 7: wifi 7 router

Feature 8: wifi 7 router xiaomi

Feature 9: xiaomi be 3600 wifi 7 router

Frequency: 5 GHz

Frequency Band Class: Dual-Band

Function: Firewall

High-concerned chemical: None

Origin: Mainland China

Package: Yes

Recommended Uses: Home

Standards And Protocols: Wi-Fi 802.11g

Support Mesh: Support

Type: WireLess

Wireless Communication Standard: 802.11.a

Wireless transmission rate: 1200M

With Modem Function: No

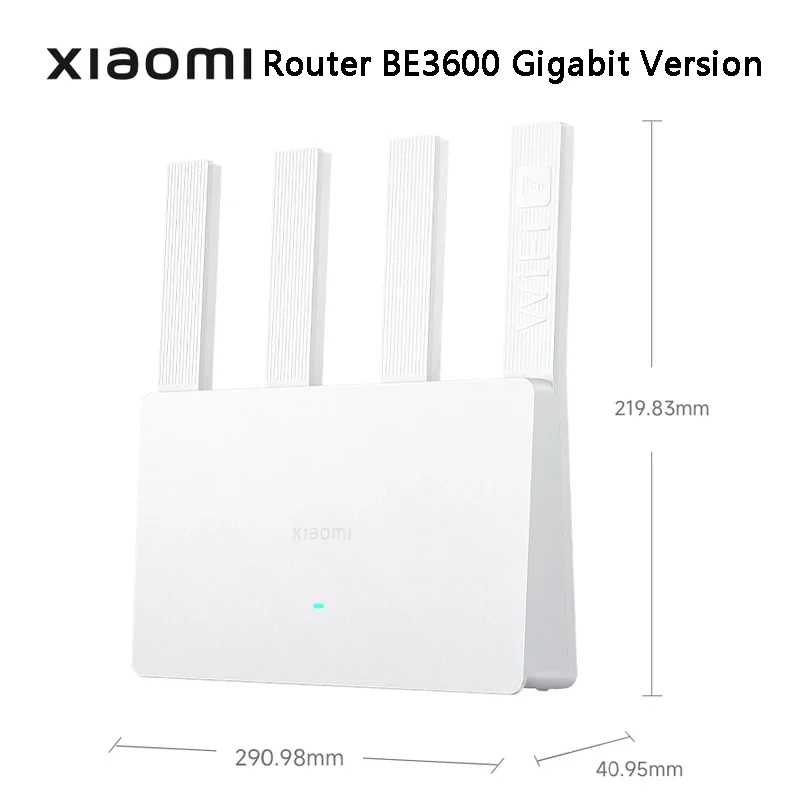

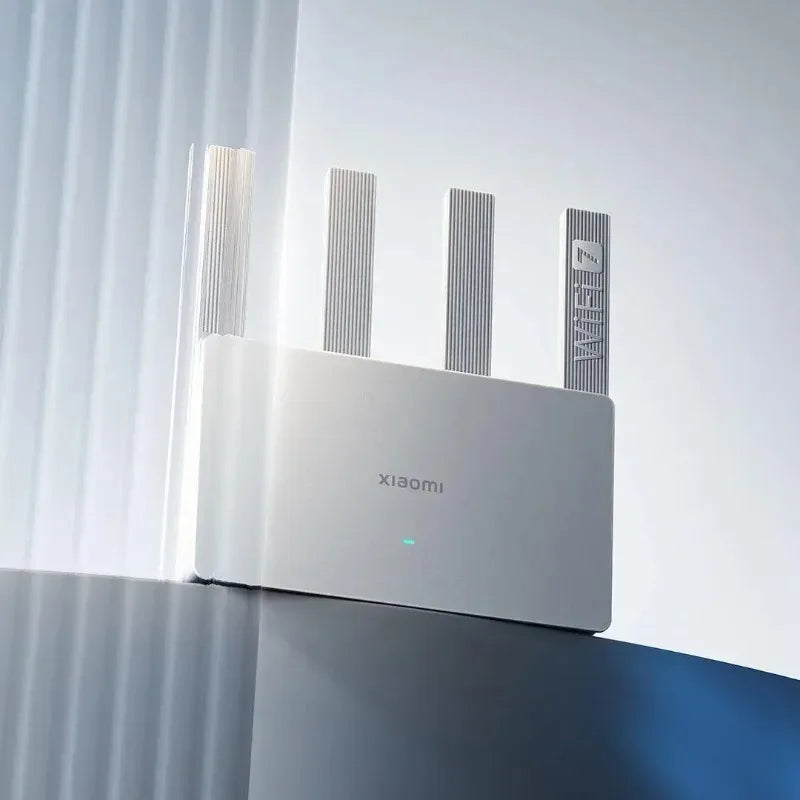

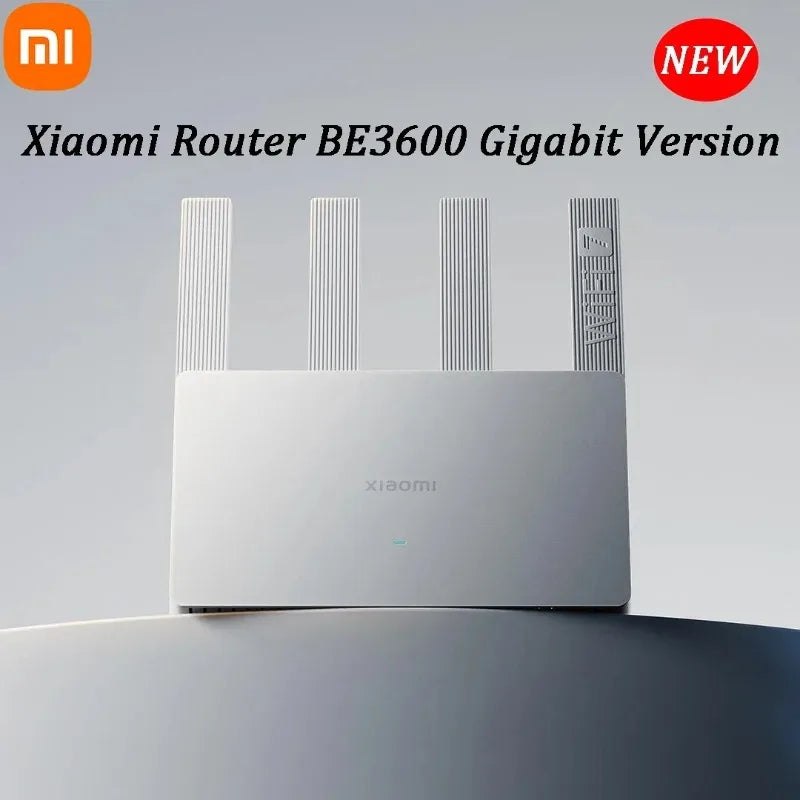

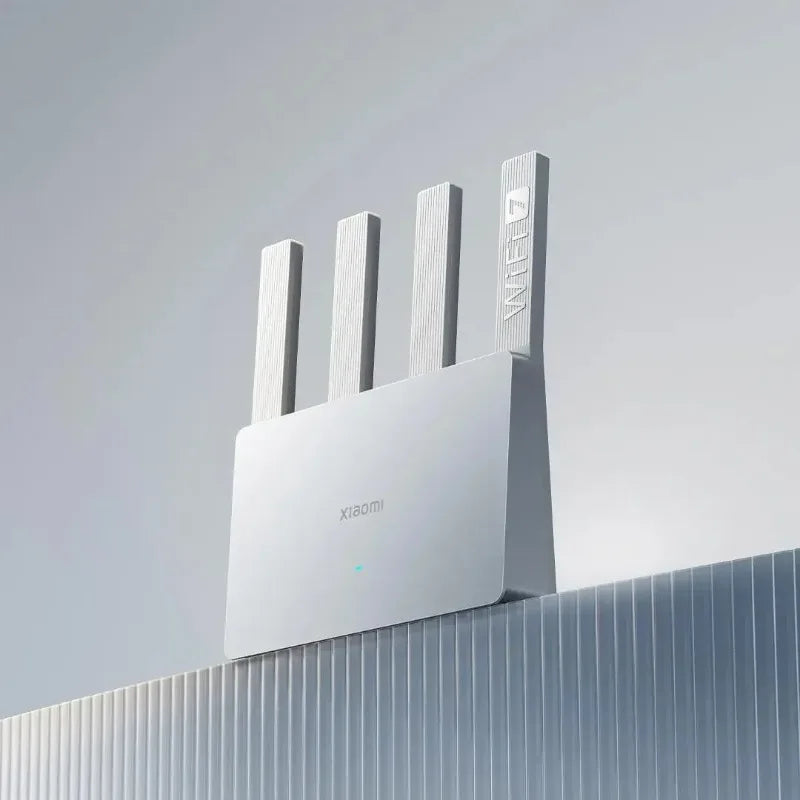

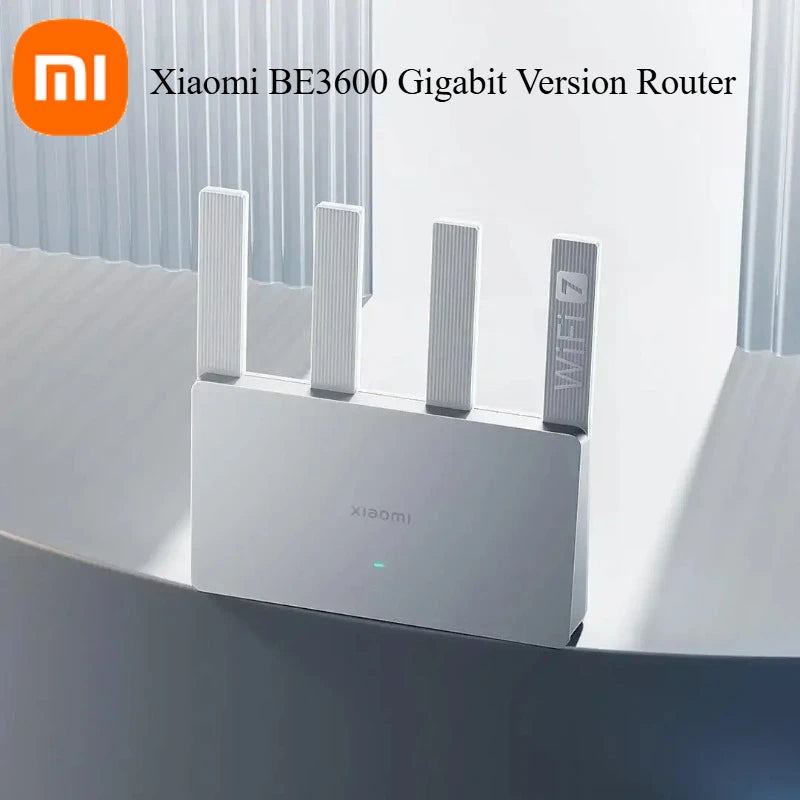

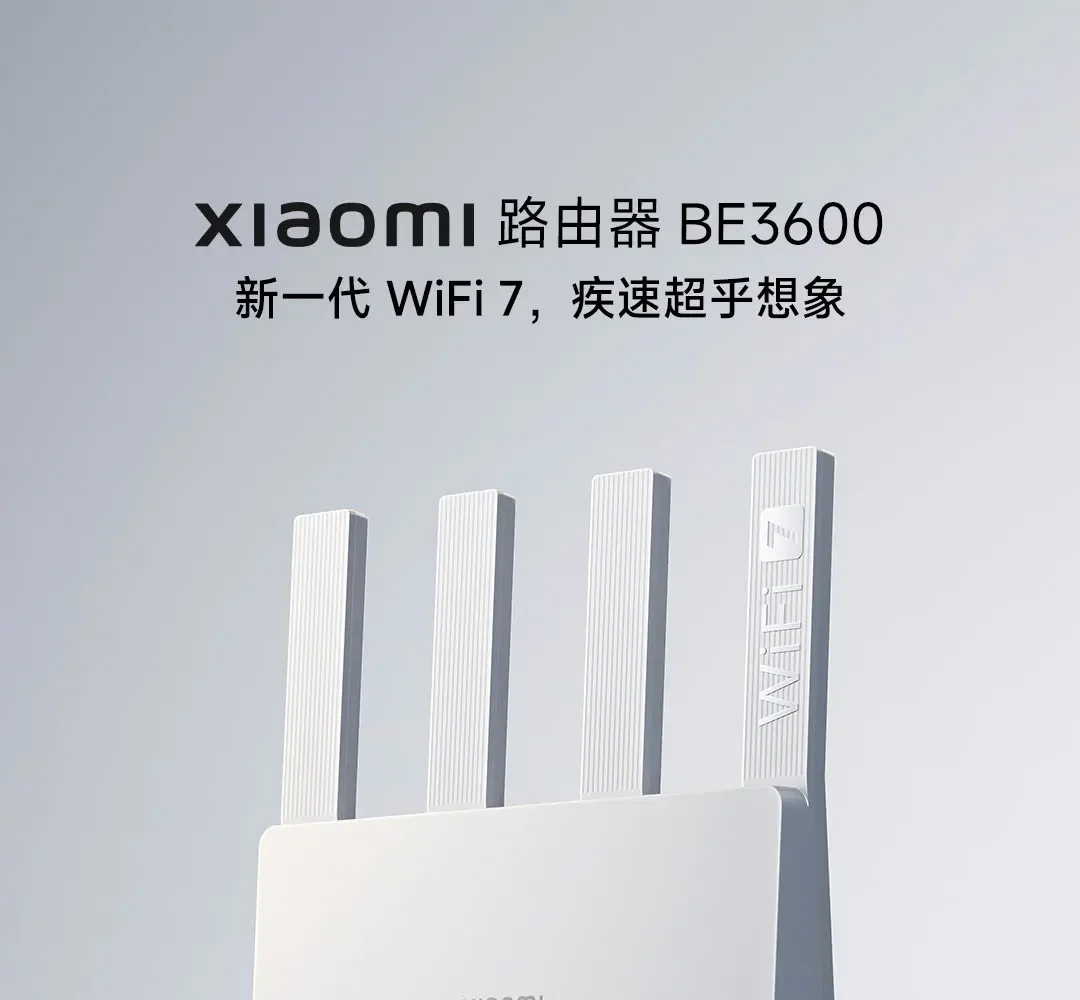

Xiaomi BE3600 Gigabit Version Router WiFi7 Mesh MLO Dual-Band End Ethernet Port Repeater VPN Networking Gaming Acceleration CN Edition



Note: Xiaomi Router BE3600 Gigabit Version is the Chinese Edition.

Production Information
Hardware configuration
Product name: Xiaomi router BE3600 2.5G version
Processor: Qualcomm quad-core 1.1GHz CPU
Memory: 256MB
2.4G Wi-Fi: 2X2(theoretical maximum speed up to 688Mbps)
5G Wi-Fi: 2X2 160MHz (theoretical maximum speed up to 2882Mbps)
Product antenna: 4 high gain WiFi antennas
Heat dissipation: natural heat dissipation

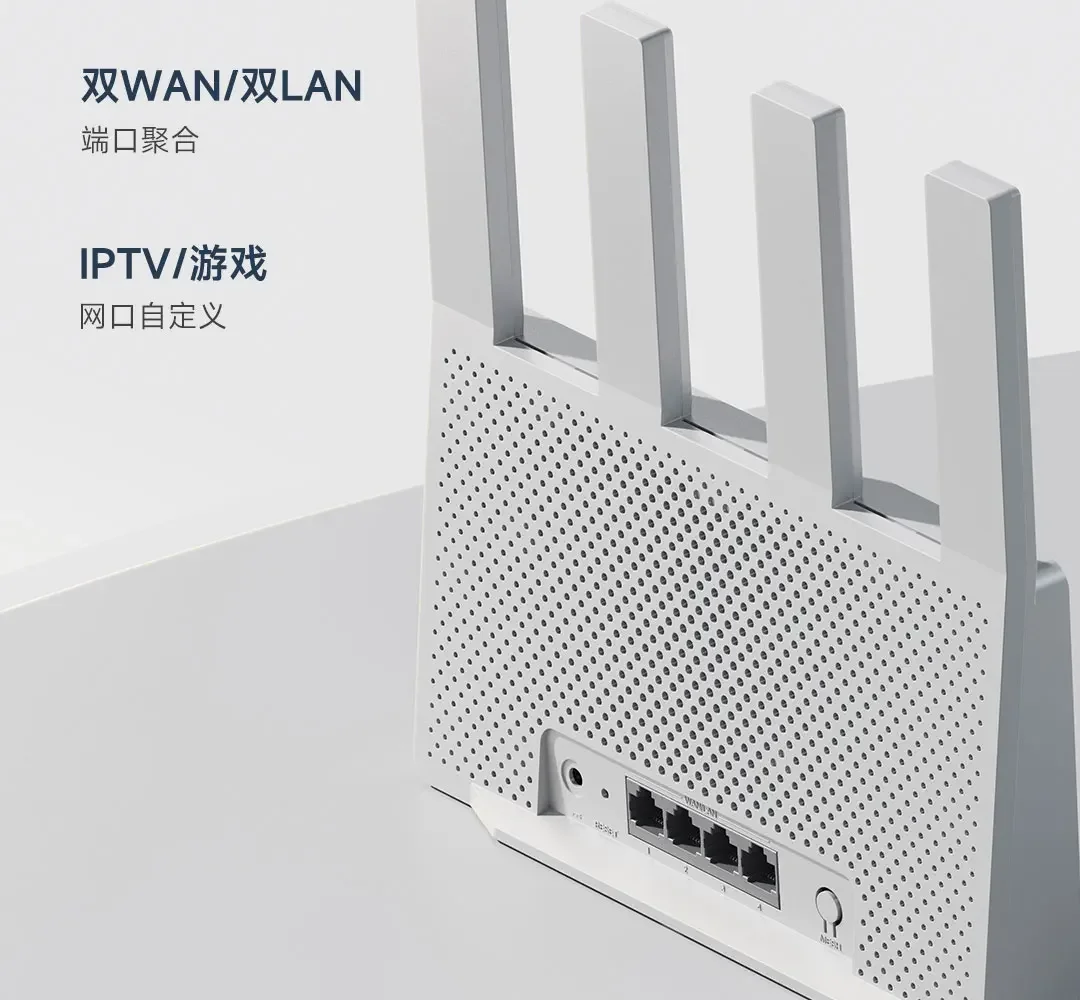

System ports: 4 x 10/100/1000M adaptive WAN/LAN port
LED indicator: 1
System reset button: 1
Mesh key: 1
Power input port: 1
Implementation standard: GB/T 9254.1-2021; GB 4943.1-2022

Wireless parameters
Dual frequency: 2.4GHz and 5GHz
Wireless channel: 2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 5
GHz Channel: 11, 12, 1336, 40, 44, 48, 52, 56, 60, 64149, 153, 157, 161, 165

Software parameters
Operation System:MiWiFi ROM
Security:WPA-PSK/WPA2-PSK/WPA3-SAE
Management application: Support Web, Mi home app (Android&iOS)

Package information:
Router BE3600*1
Chinese Manual*1
One network cable*1
Chinese Power Plug*1

Working environment
Operating temperature 0 to 40° C
Working humidity 10%~90% RH (non-condensing)
Storage temperature -40 to 70° C
Storage Humidity 5%~90% RH(non-condensing)

More Information about product

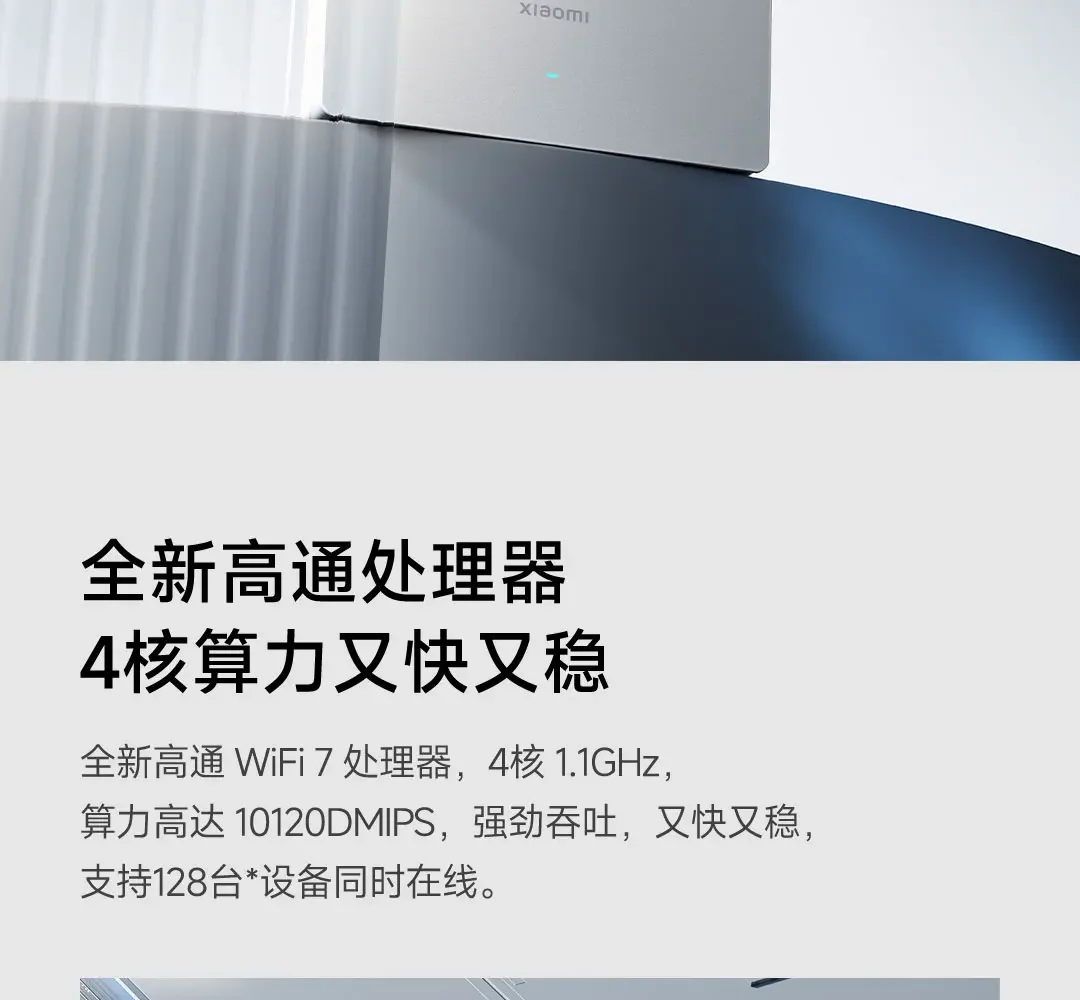

·  Qualcomm 4-core chip with computing power up to 10120DMIPS
·  MLO dual band aggregation with a theoretical peak rate of 3.57Gbps
·  OFDMA enhanced version, faster transmission and lower latency

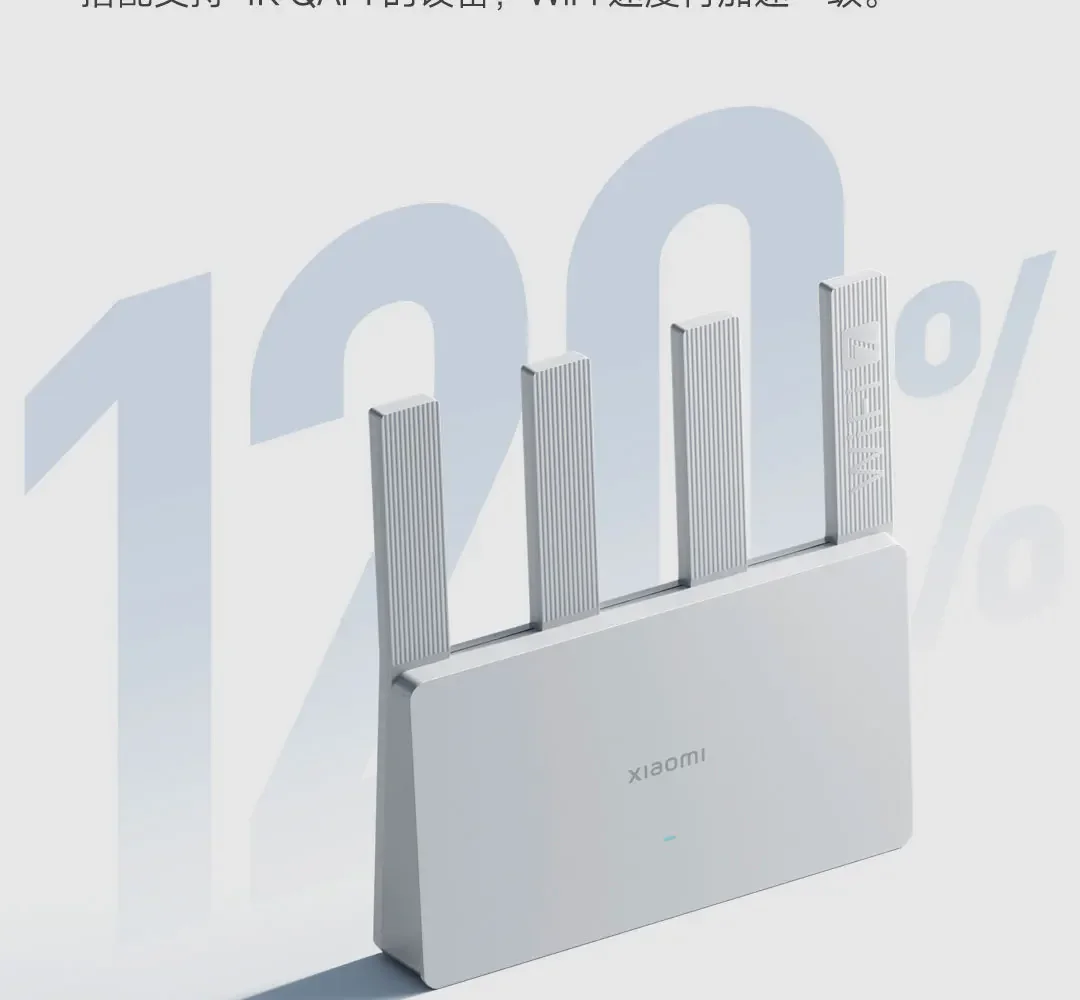

·  4K QAM, speed increased to 120%*

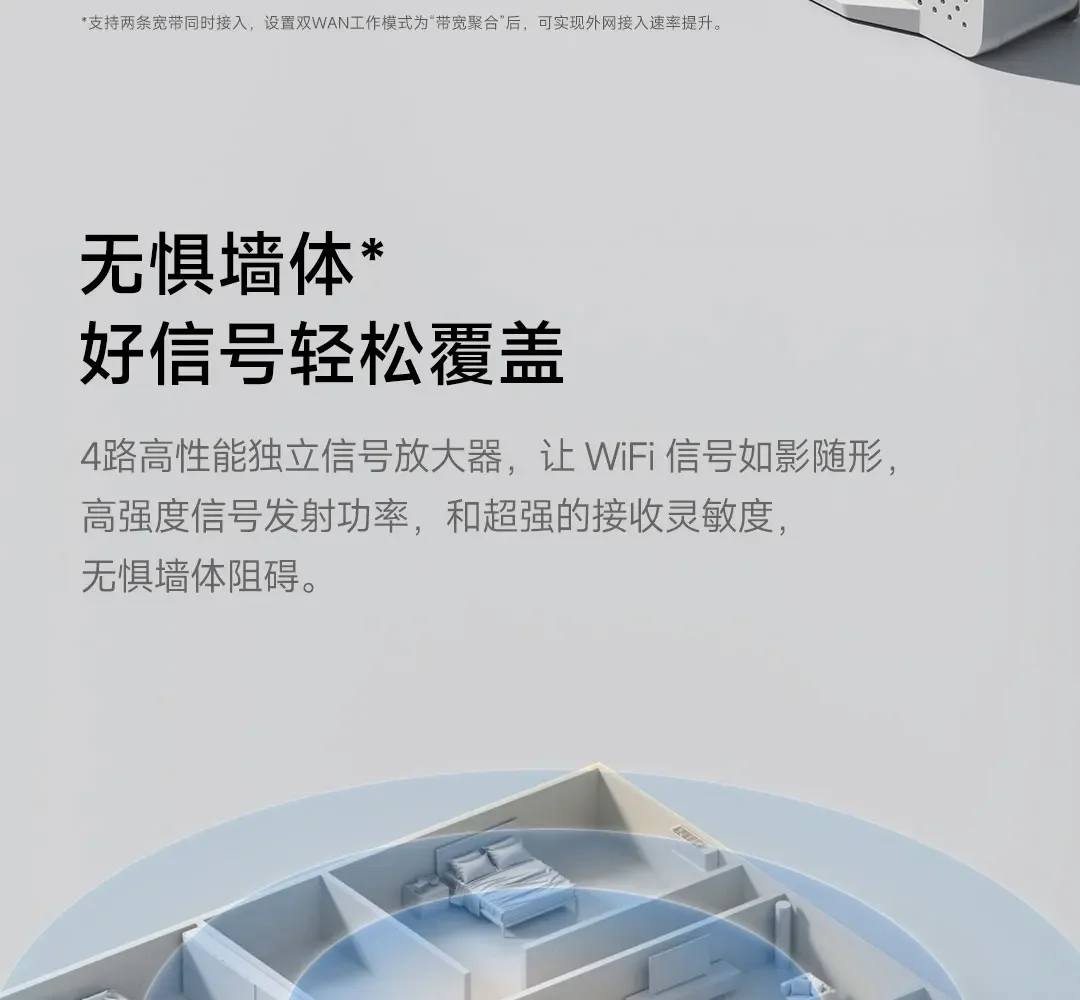

·  4 high-performance independent signal amplifiers with strong wall penetrating power

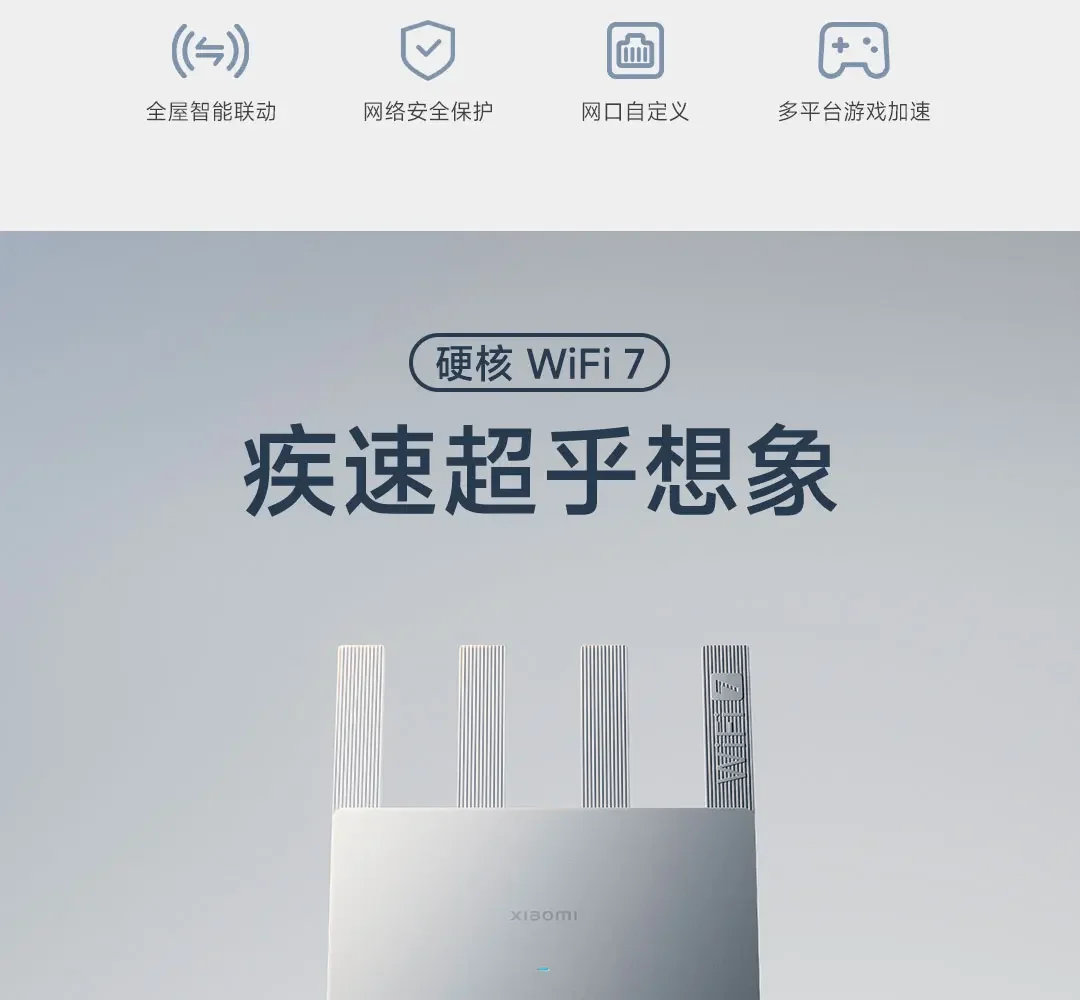

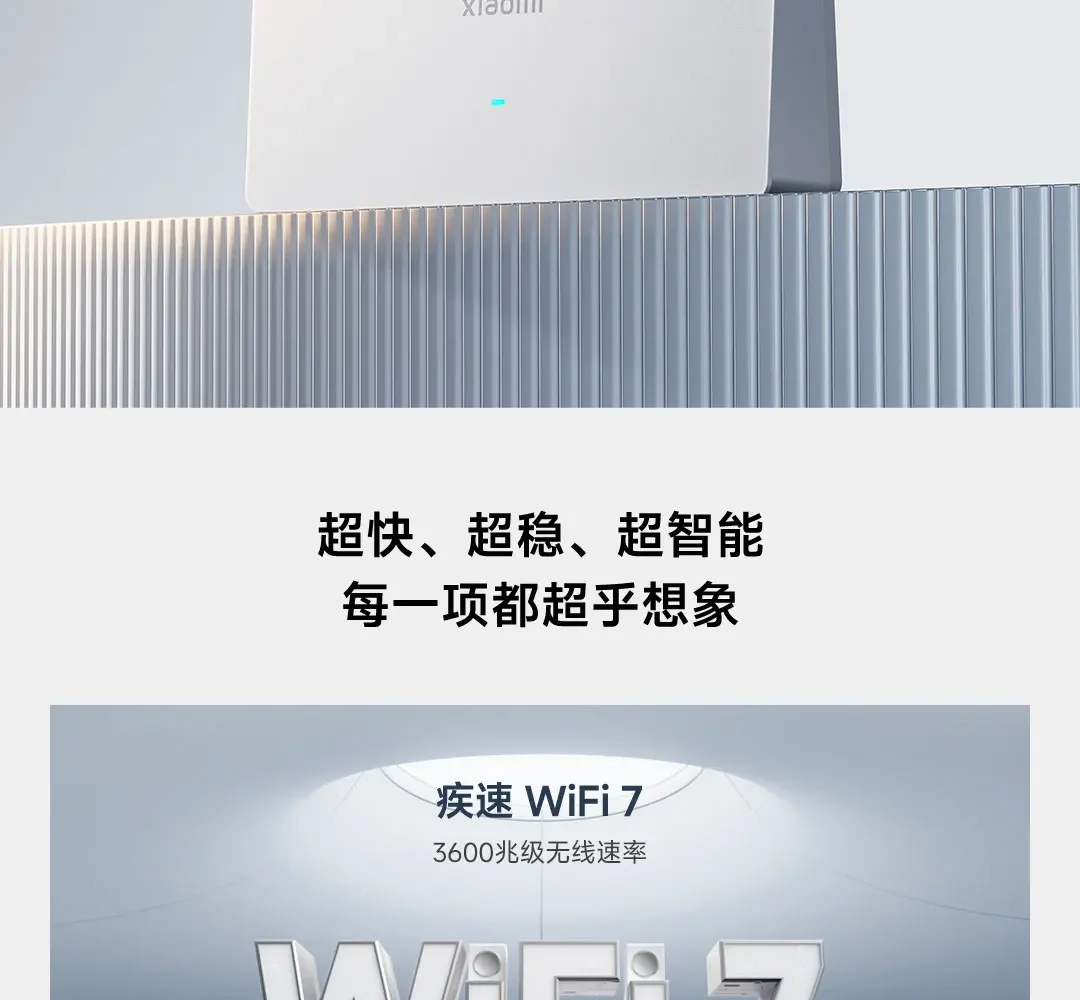

·  WiFi 7 refreshes at lightning speed, with a smooth 3600 Mbps ride*
·  New Qualcomm processor with 4 fast and stable computing power
·  Supports dual broadband aggregation, unlocking more fast gameplay

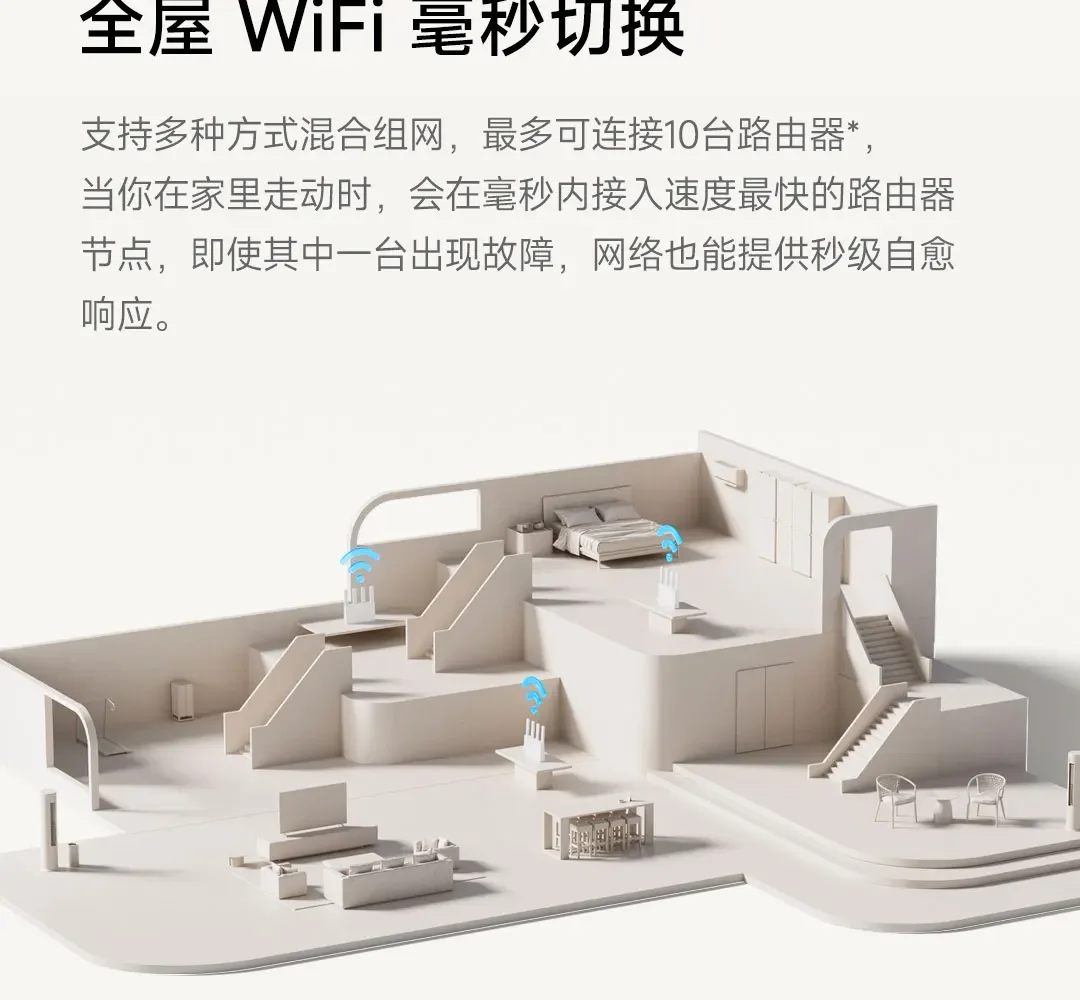

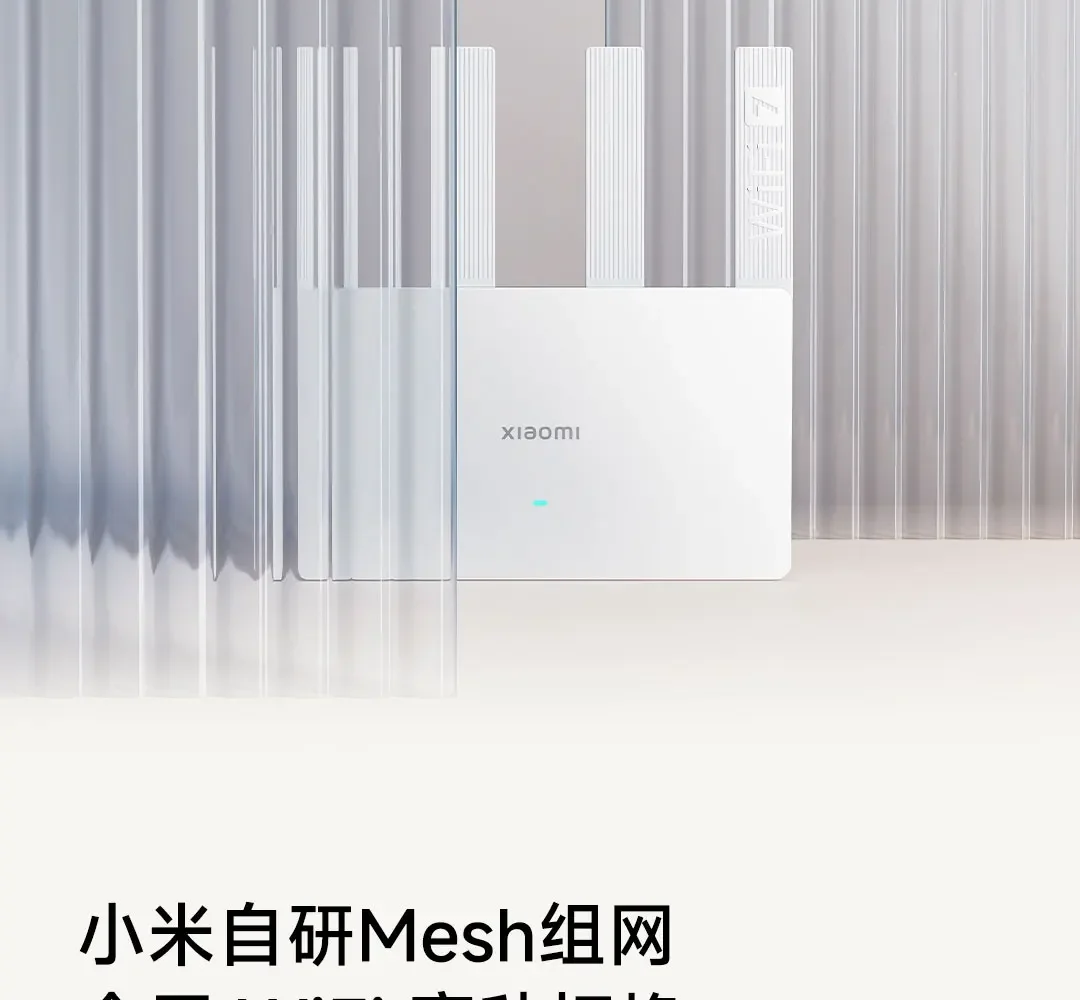

·  Xiaomi's self-developed Mesh networking, whole house WiFi millisecond switching
·  Family Safety Center, Protecting Privacy and Preventing Addiction
