SPECIFICATIONS

APP: Ubox

Alarm: PIR Motion Detection Alarm

Audio: Built In Mic and Speaker

Brand Name: Ikevision

Customized support: Online Technical Support,Customized Logo,OEM, ODM

Data Storage Options: Cloud,Micro SD card

Function: Reset,Built-In Mic,Night Vision,Wide Angle

IP Rating: Not waterproof

Lens: 3.6mm

Lens Type: HD lens F/NO 2.5 f=3.2mm Horizontal FOV 120 degrees

Low Consumption Power: Built in 2600mAh Battery, 3 hours to be charged fully

Material: Plastic

Model Number: IK-H9

Network: Support 2.4G Wifi and 4G SIM Card Network EU and Asia version

Pixels: 2 MP

Place of Origin: Guangdong, China

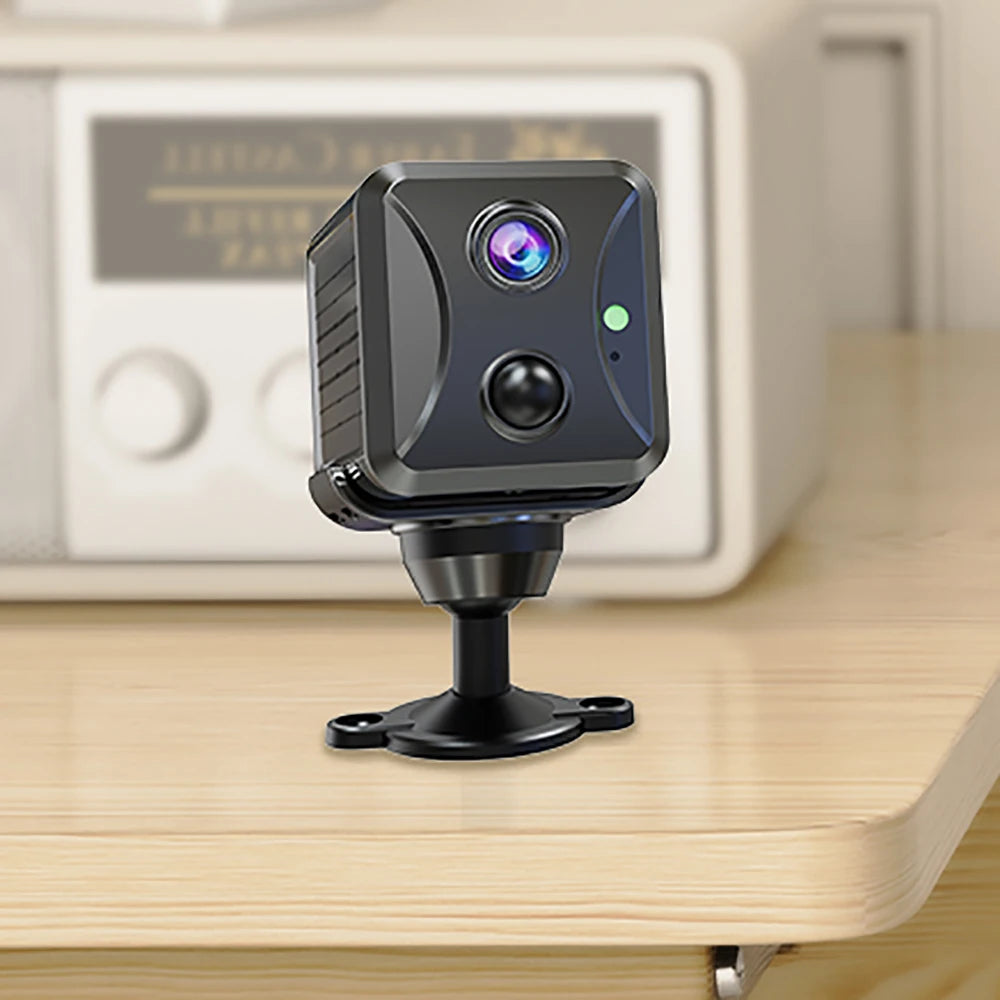

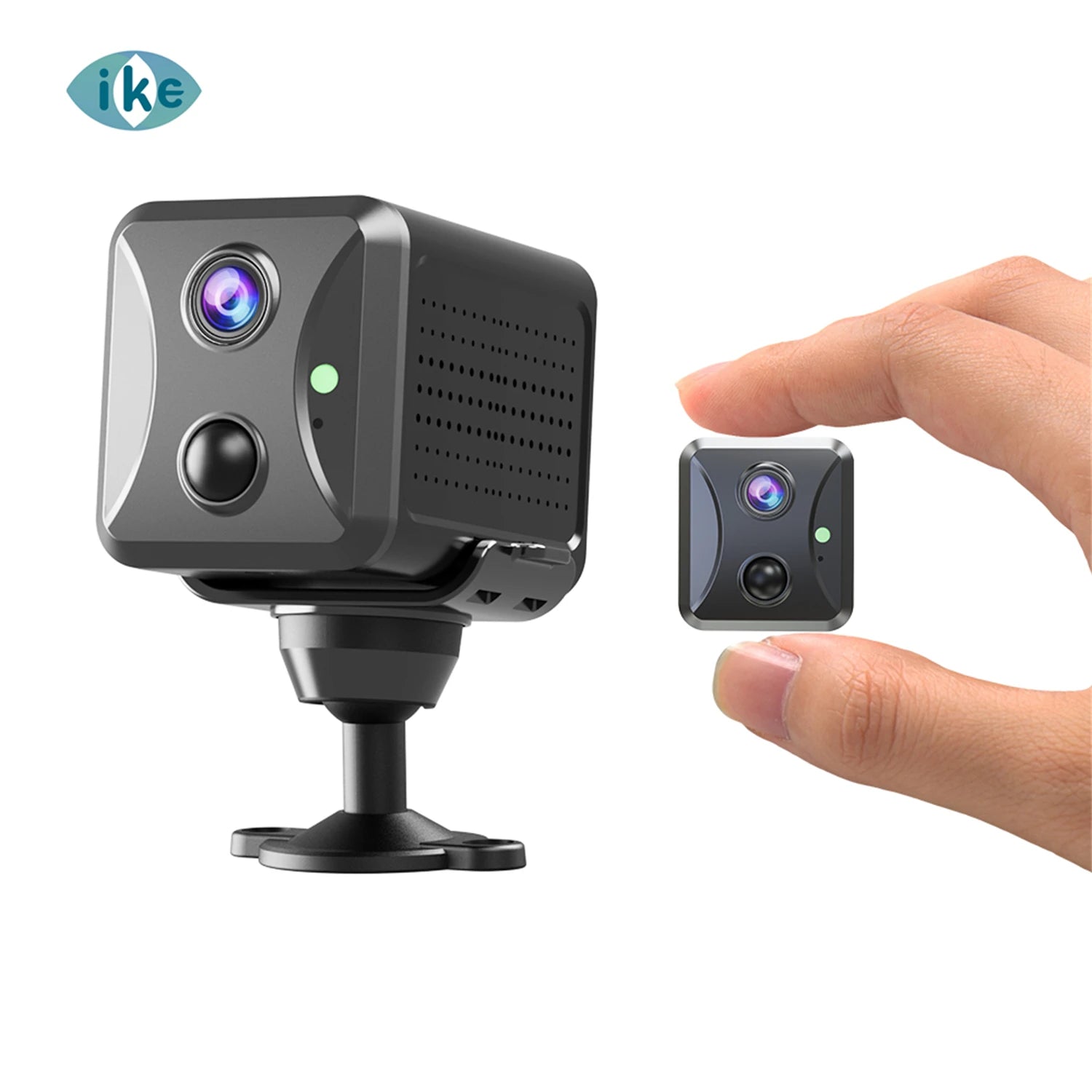

Product name: Ubox WIFI/4G Mini cameras

Recording Storage: Support Max 128G/Cloud

Resolution: 2MP 3MP Camera

Sensor: CMOS

Special Features: Night Vision,Motion Detection,Two-Way Audio,Low Power

Style: Dome Camera

Video Compression Format: H.265

Viewing Angle: 85

Warranty: 1 Year

Zoom: 5 x Digital zoom

Product Paramenters

Unique Point：WIFI/4G SIM Card LTE Battery Powered Mini Camera Standard Charging Port: Type C Lens：3.2mm, 2Mpx LEDs： 4 pcs IR leds Standby time：About 20 days (wake up 10 times a day, 15S each time) Infrared distance：850nm infrared, effective distance 10m Network configuration method：QR code distribution network PIR human detection：Support PIR detection wake(Max 5M) Battery ： built in 2400mAh Storage：TF Card （MAX 128GB) & cloud

Audio: Support two way audio

Products Description

Main Control	T31
Image Sensor	2MP 1080P COMS sensor 1/2.9
Video Streaming	1920*1080/15fps 640*360/15fps

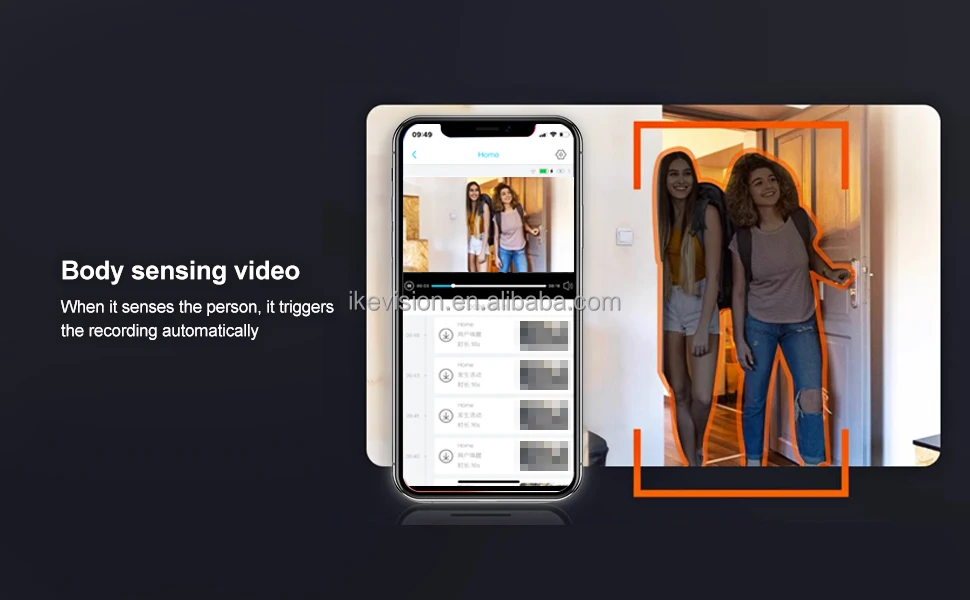

Motion Detection	PIR + Motion detection multiple intelligent detection, Effective distance: 5 meters
Night Vision Mode	950nm IR night vision
Night Vision Distance	6PCS LED Lights, Effective lighting distance:about 8 meters
Wireless Module	Low Power CAT1 4G Module
Lens	HD lens F/NO 2.5 f=3.2mm Horizontal FOV 120 degrees

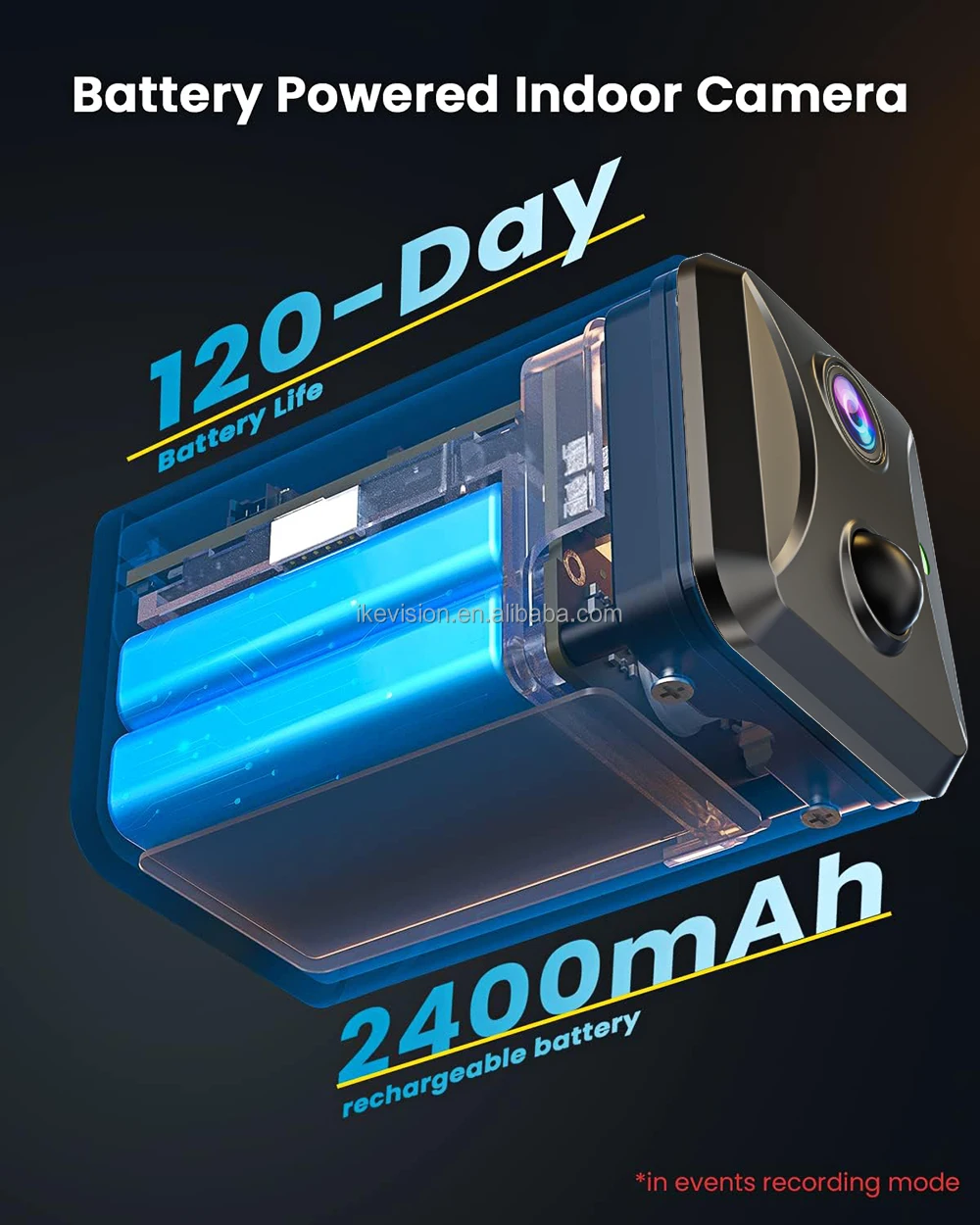

Battery	Polymer battery 2400mAH
Battery Life	Standby: about 20 days
Charge	TYPE-C USB Port, About 3 hours full charge
Wake/Sleep Time	15S/30S/60S/Always
Connection Method	QR Code + Sonic
System	Linux+rtos
Audio	Audio Encoding	AAC and G.726
		MIC	High sensitivity-38dB
Video	Video Encoding	H264/H265
Network	4G Network	TDD/FDD, China, Europe, USA, Australia
		Network Protocols	TCP/IP, HTTP, TCP, UDP, DHCP, DNS, P2P
Function	Event Alarm	Support
		Button	Power switch + Reset button
		Indicator Light	Blue & Red LED
		Storage	Support TF Card 4GB-128GB and Cloud Storage

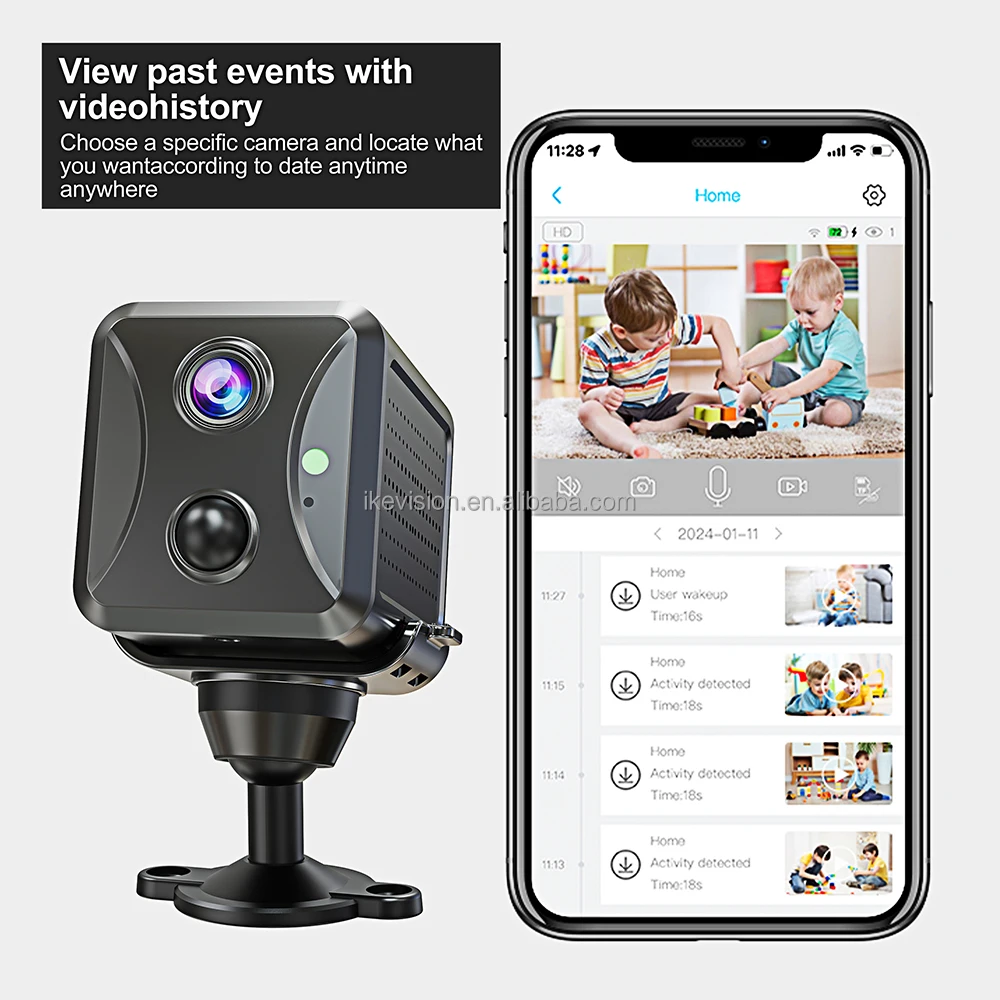

		Video Playback	Event List Playback and Cloud Storage Playback
		Waterproof	No
		Two-way intercom	Support
		APP	Ubox, iOS10.0, Android5.0
Working Environment	Temperature	-20℃ ~+60℃
		Humidity	≤80%RH

Details Images

Marketing Campaign

Company Profile

Shenzhen Ikevision Technology Co.,LTD was found in 2016. Our factory is a leading manufacturer, Wholesaler and trading company for Security Camera Industry, and home smart products. We mainly deal in Security Cameras, Solar CCTV, Alarm System. These are widely used in the fields of home, office, wearhouse, farm areas.

The core value of our company is that: Technology for everyone, Quality for First.With years' development in software and hardware.we believe that we can supply best products and customized service to
our customers worldwide. Believe we can keep good cooperation with you and grow up together.

FAQ

1. What is your payment terms?

Alibaba Credit insurance ,T/T, Western Union or Paypal is Acceptable.

2. How does your factory do regarding quality control?
Quality is the priority. All products have CE/ RoHS certificates, and 100%QC inspection before shipment.

3. Can I get samples to test before place an order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

4.What is our Shipping & Trade terms?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc. Delivered time:2-3 business days for sample, 20-25 days for mass order. Trade terms: EXW, FOB , CIF etc.

5. What is our Warranty and Certificates?
Our warranty is 12 months, if you have any problem during using, pls feel free to contact us. We have CE, ROHS, FCC certificates.
