SPECIFICATIONS

Brand Name: NoEnName_Null

Display Mode: 500:1

High-concerned chemical: None

Model Number: ER-TFT028-4.2

Origin: Mainland China

Resolution: 320*240

Type: TFT

is_customized: Yes

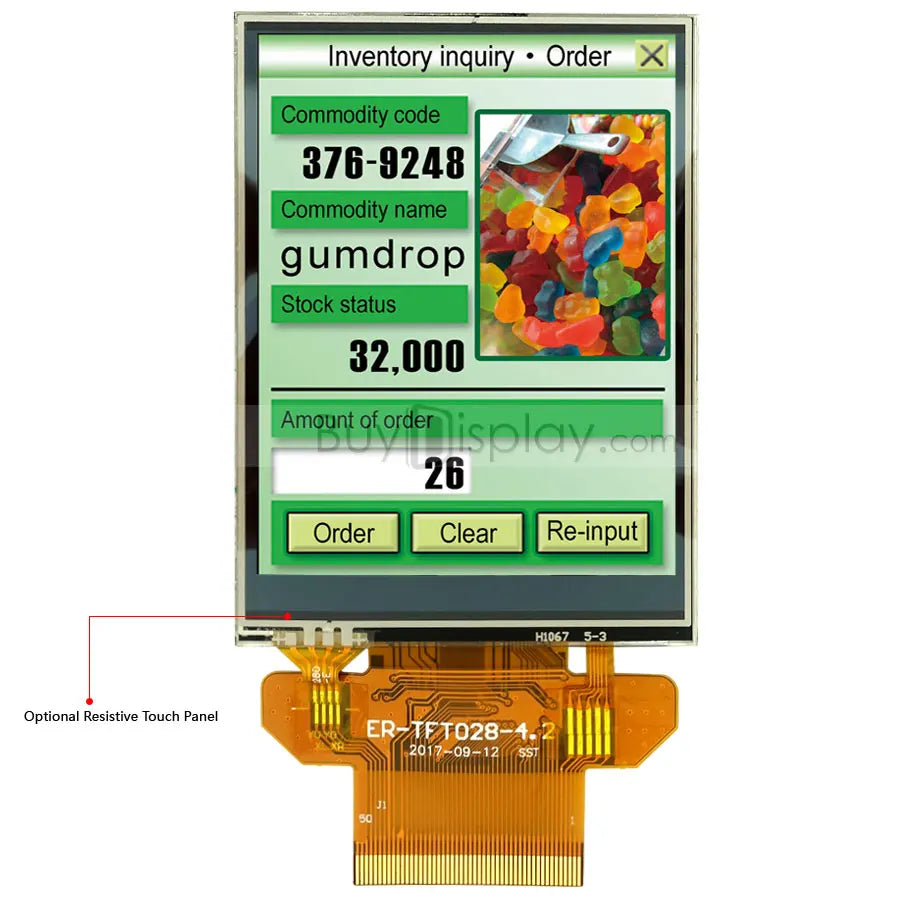

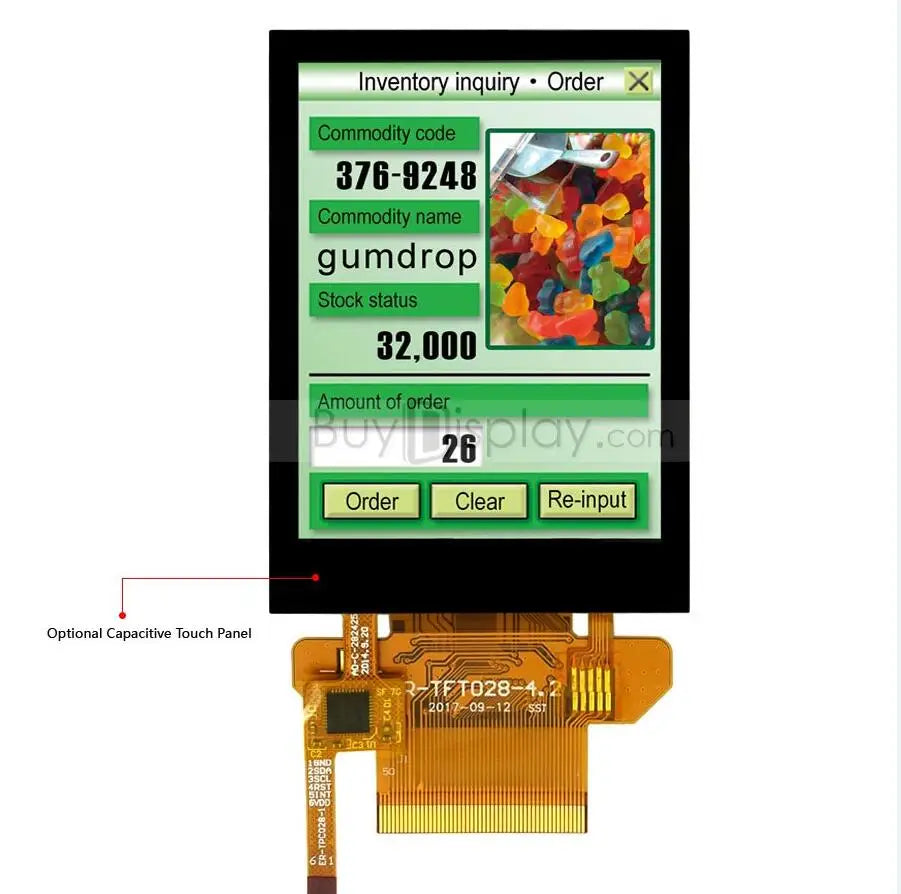

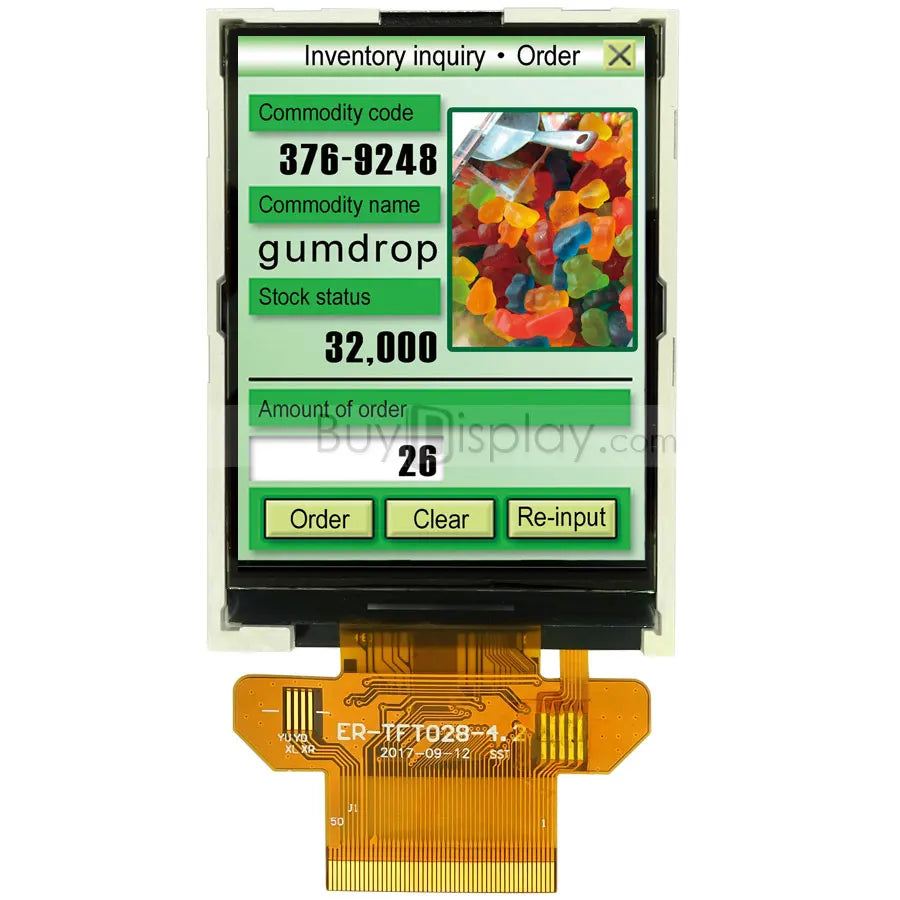

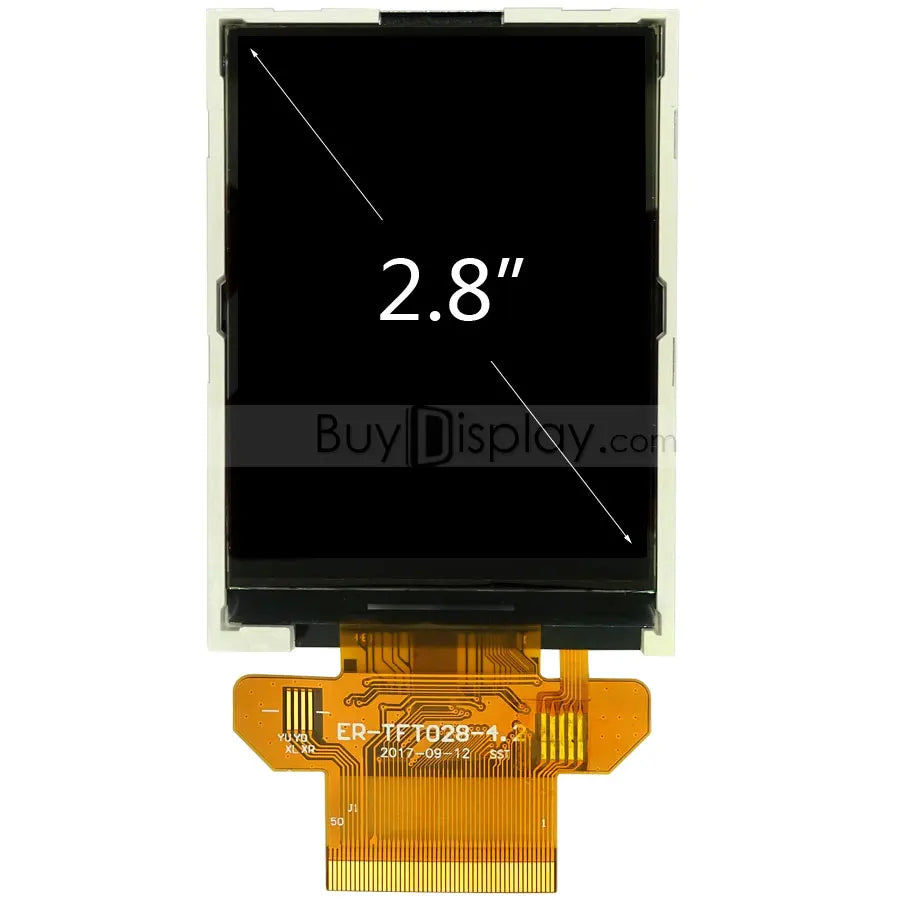

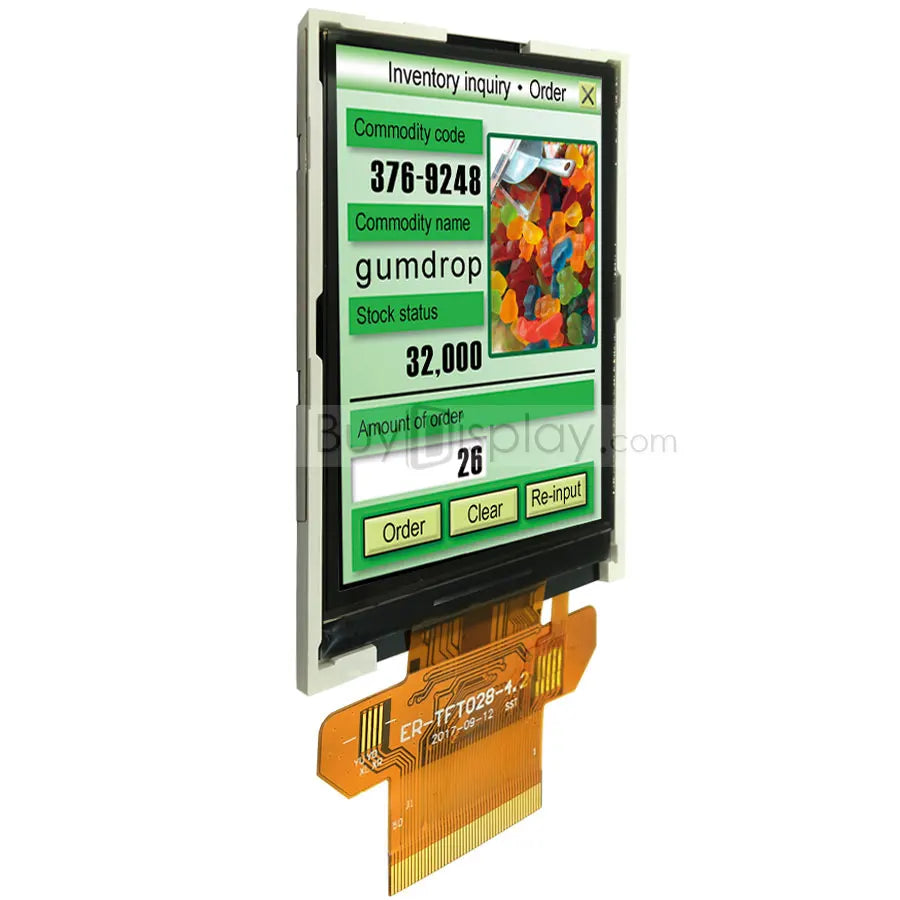

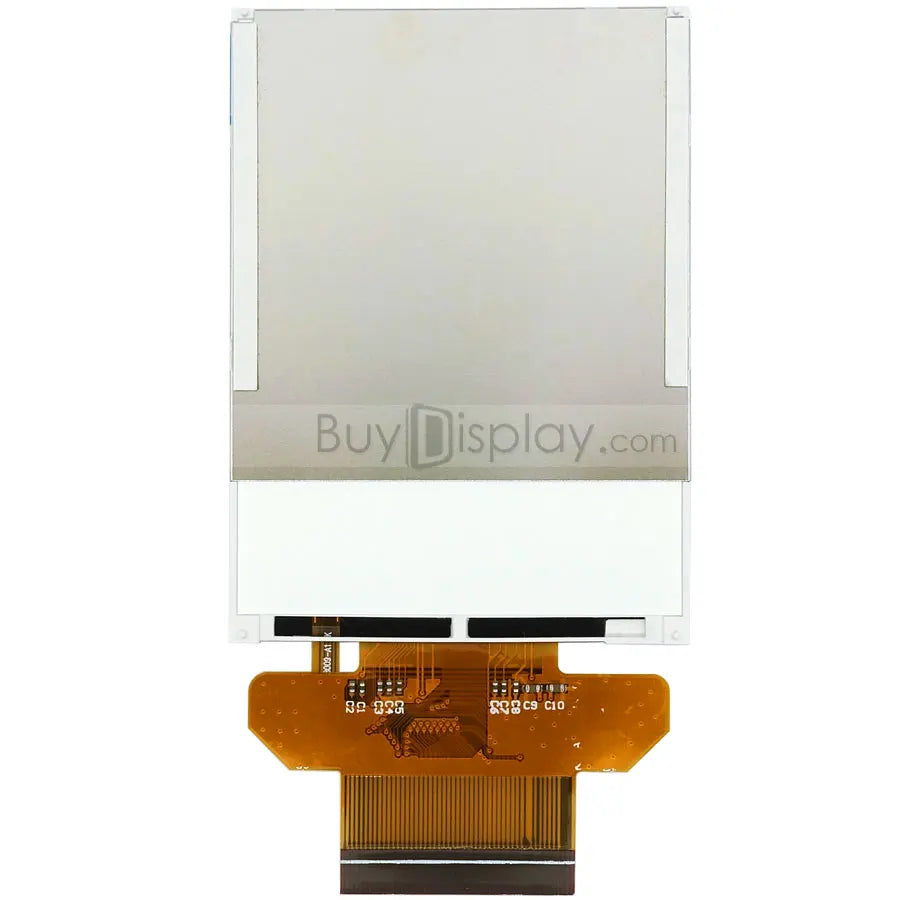

ER-TFT028-4 is 240x320 dots 2.8" color tft lcd module display with ILI9341 controller and optional capacitive touch panel and 4-wire resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit,18-bit parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn't just leave you with a datasheet and a "good luck!".Here is the link for 2.8"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

What's included in the package ?

Number	Standard Accessory Name	Quantity
1	2.8 inch 240x320 pixels TFT LCD Display+ 50P Zif Connector	1

Datasheet for TFT LCD ,Controller,Connector

Format	Documents Name	Language	Update Date	Size

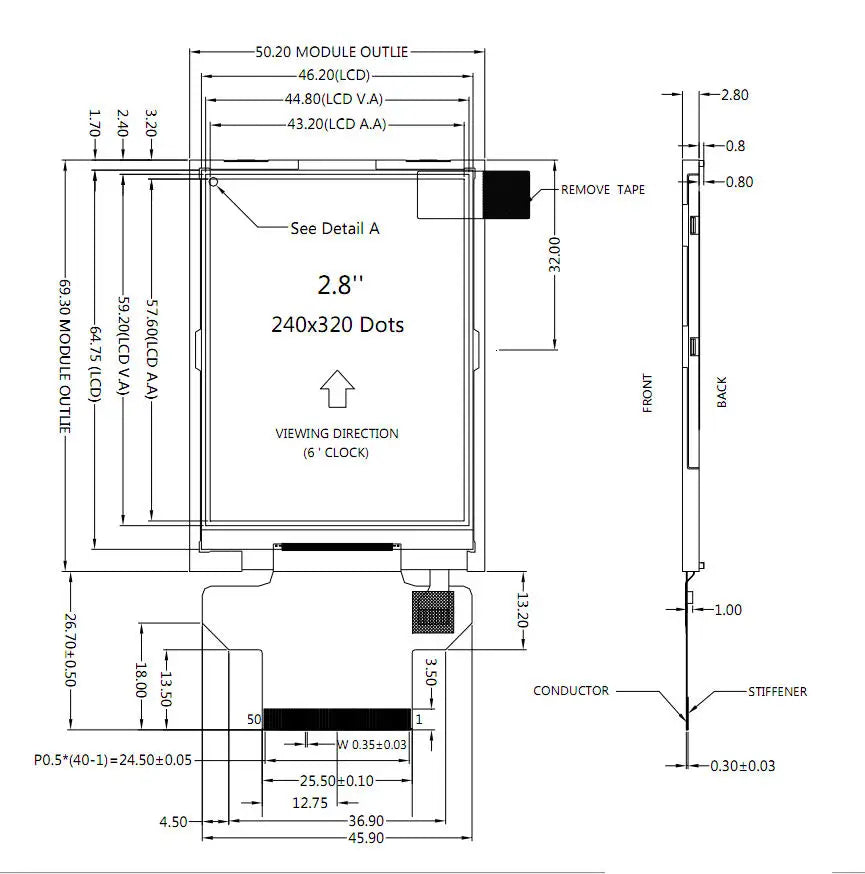

	2.8 inch 240x320 Dots TFT LCD Display Datasheet	English	Apr-20-2017	915K
	ER-TFT028-4.2_3D Model	English	Sep-08-2023	314K
	50 Pins 0.50mm Pitch ZIF Connector Drawing	English	Jul-26-2012	657K

Datasheet for Touch Panel,Controller,Connector

Format	Documents Name	Language	Update Date	Size
	2.8 inch 4-Wire Resistive Touch Panel Drawing	English	Feb-29-2017	230K
	2.8 inch Capacitive Touch Panel Outline Drawing	English	May-22-2015	230K
	Capacitive Touch Panel Controller FT6206 Datasheet	English	Oct-20-2012	1.1M
	6 Pins 0.5mm Pitch ZIF Connector (FPC Connector) Datasheet	English	Jun-10-2014	272K

Tutorial - 8051 Microcontroller Demo Code

Format	Documents Name	Language	Update Date	Size
	8080 16-bit Parallel Interface w/Resistive Touch Demo Code	English	Jun-12-2014	27K
	8080 8-bit Parallel Interface w/Capacitive Touch Demo Code	English	Jun-12-2014	27K
	8080 8-bit Parallel Interface Demo Code	English	Jun-12-2014	27K
	8080 16-bit Parallel Interface Demo Code	English	Jun-12-2014	27K
	8080 18-bit Parallel Interface Demo Code	English	Jun-12-2014	27K
	4-Wire SPI Serial Interface Demo Code	English	Jun-12-2014	27K
	ER-TFT028-4 with Resisitive Touch Interfacing Document	English	Jun-21-2014	387K
	ER-TFT028-4 with Capacitive Touch Interfacing Document	English	Jun-21-2014	387K
	8051 Microcontroller Development Board & Kit for ER-TFT028-4	N/A	N/A	N/A
