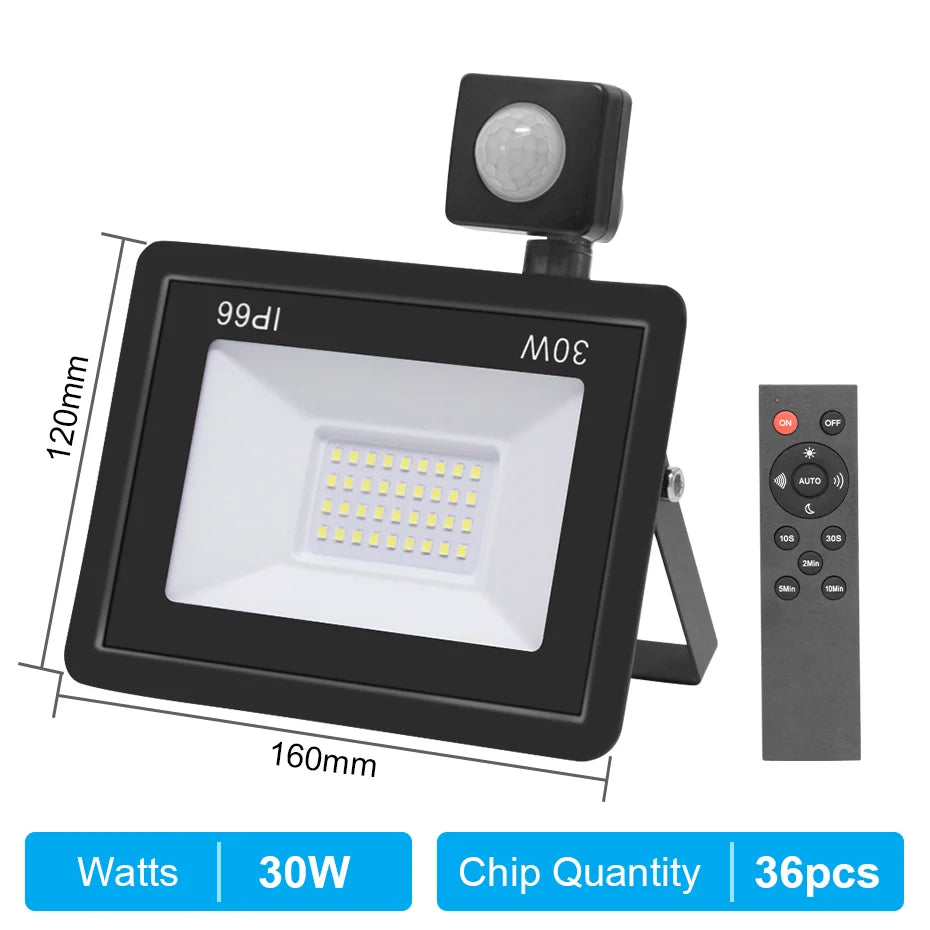

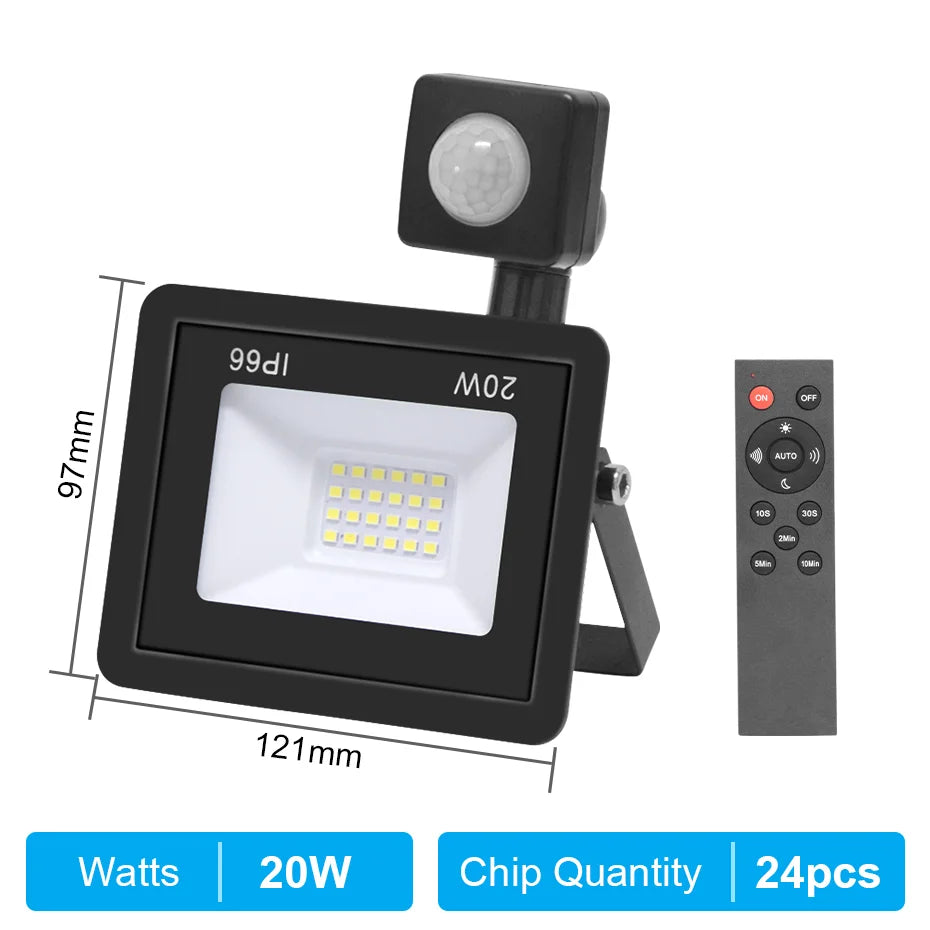

Product Description:

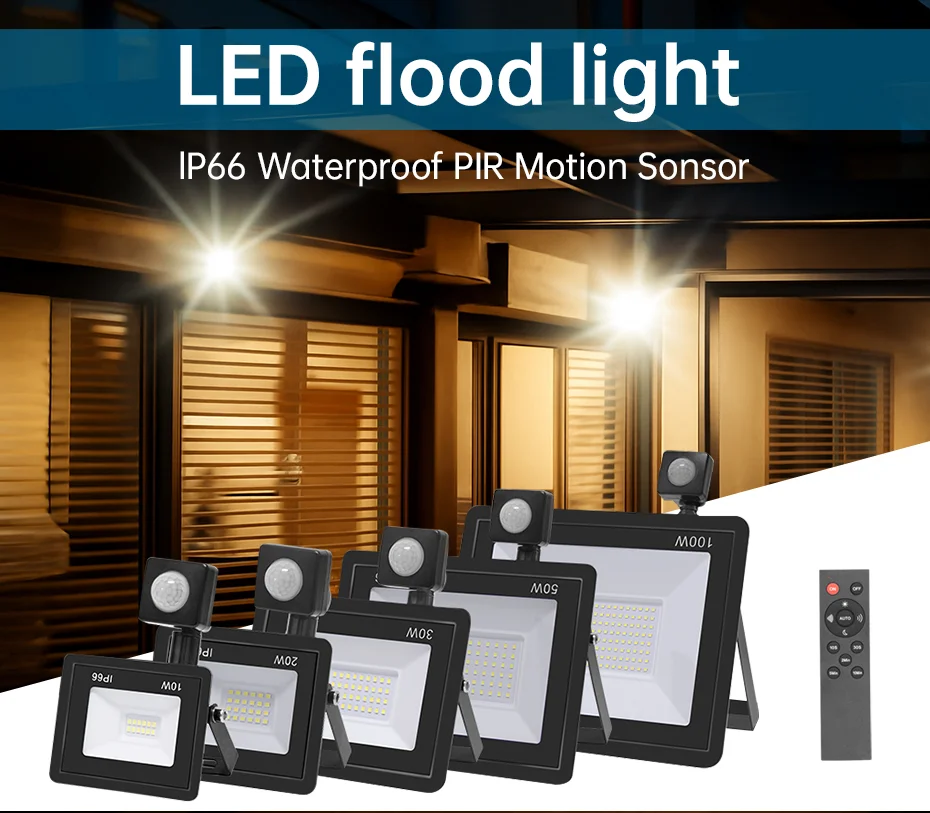

Name: Motion Sensor Flood Light

Voltage: AC175V-265V

Power: 10W/20W/30W/50W/100W

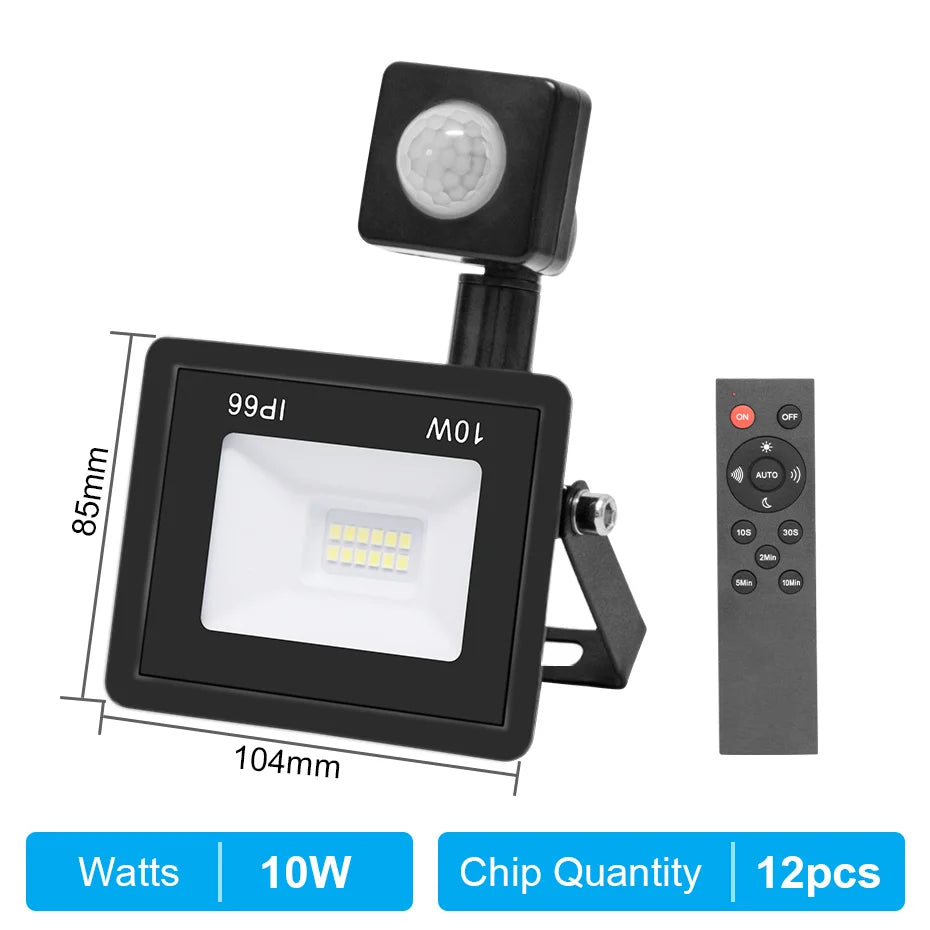

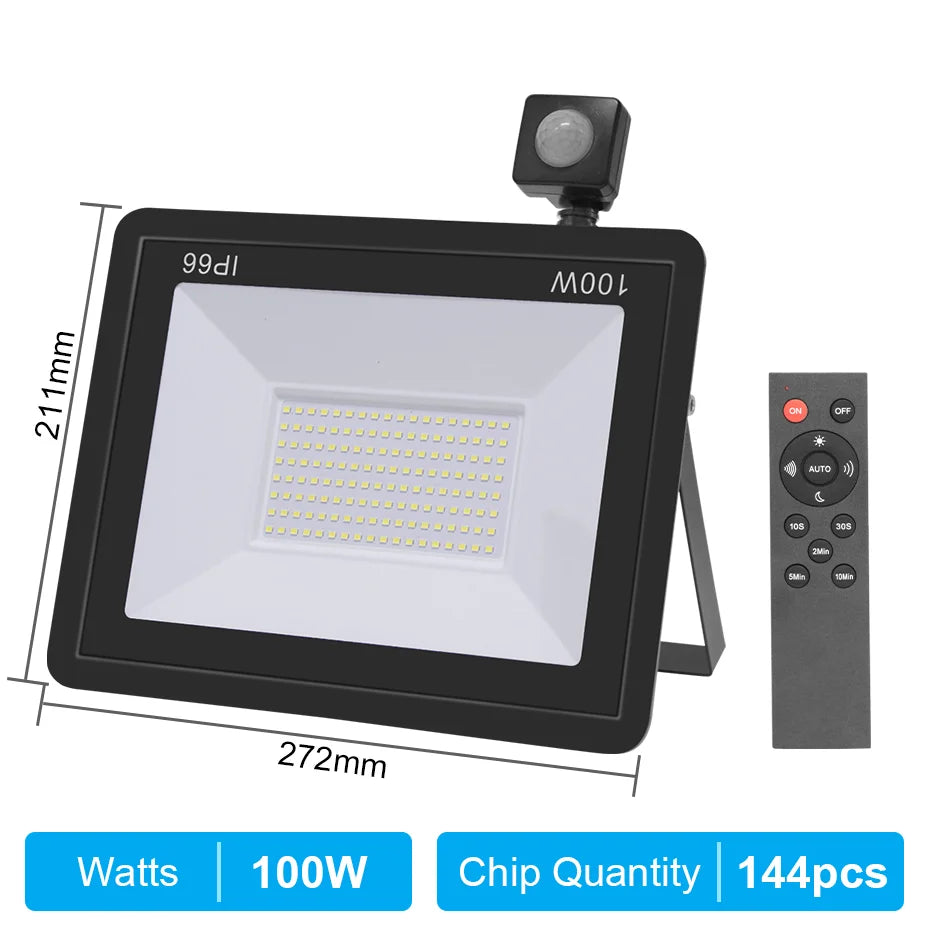

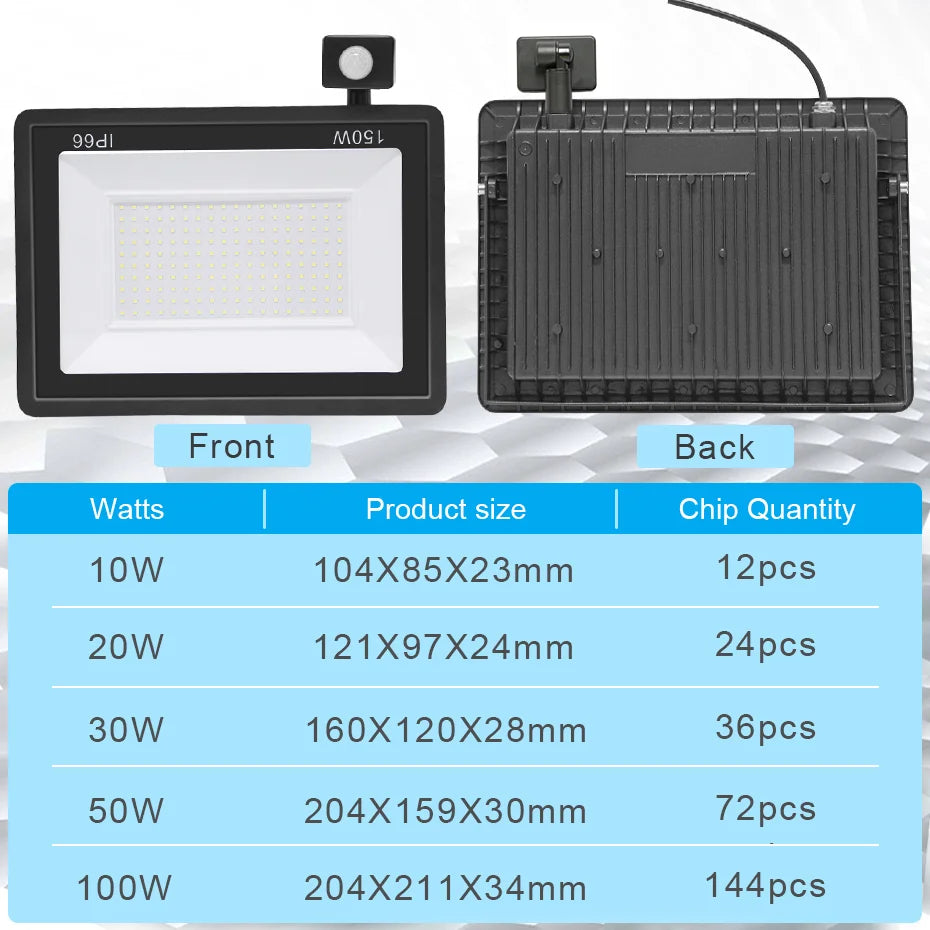

Chip Quantity: 12 /24 /36 /72 /144

Waterproof Grade: IP66 (Can not put into the water)

Led Chip Model: SMD 2835

Color Rendering Index: Ra80

Light Color : White 6000K

Beam Angle: 120°

Lifespan:50,000 Hours

Working temperature:~20°C–50°C

Housing Material: Aluminum + Explosion proof glass

With Infrared Remote Control (Not including battery)

Lumens: 10W(900Lm)

            20W(1800Lm)

            30W(2700Lm)

            50W(4500Lm)

          100W(9000Lm)

How to use:

1.Firstly, fix the bracket on the surface and fix it with screws.

2.Then connect the mains cable to the wiring port.

3.Finally fix the bracket at the desired angle with screws.

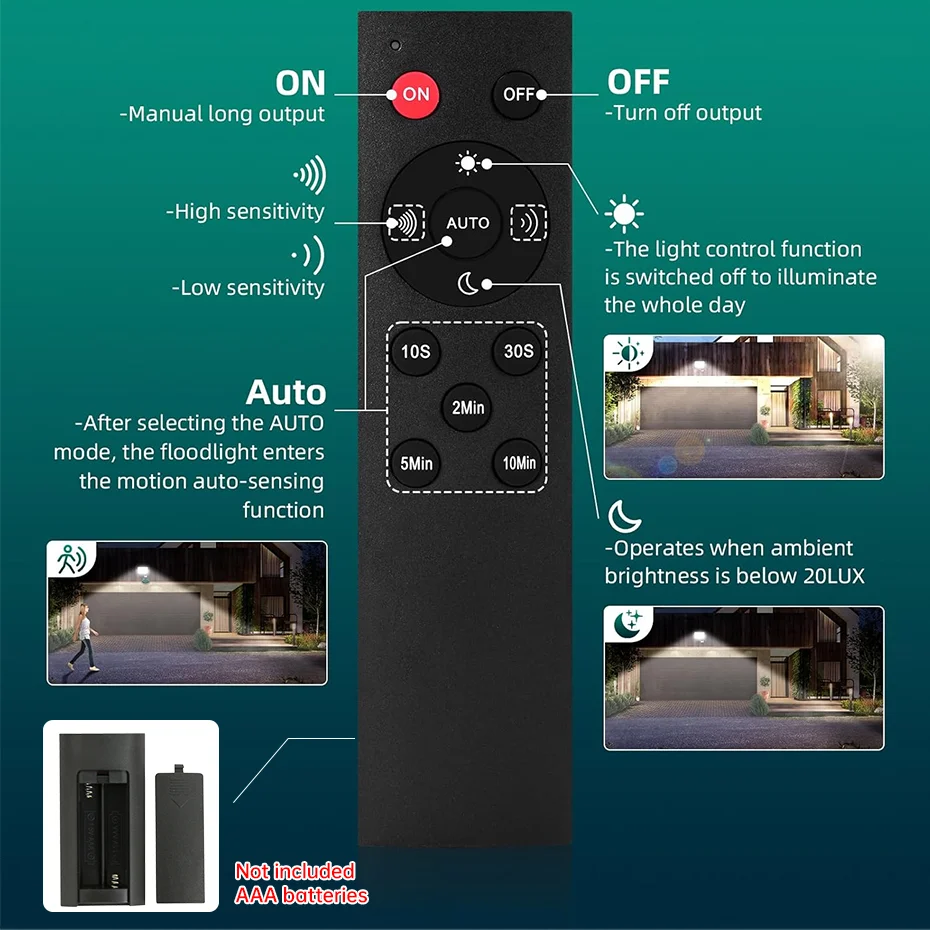

4.Press the "ON" button to enter the constant light mode; "OFF" key is off mode.

5.Press the "AUTO" key to enter the sensor mode:In this mode, press the "sun" key to enter the day mode (all day work).Press the "moon" key to enter the night mode (only work in the night).

6.Sensing time can be 10S, 20S, 2Min, 5Min, 10Min. Press the corresponding time button to light up the corresponding time.

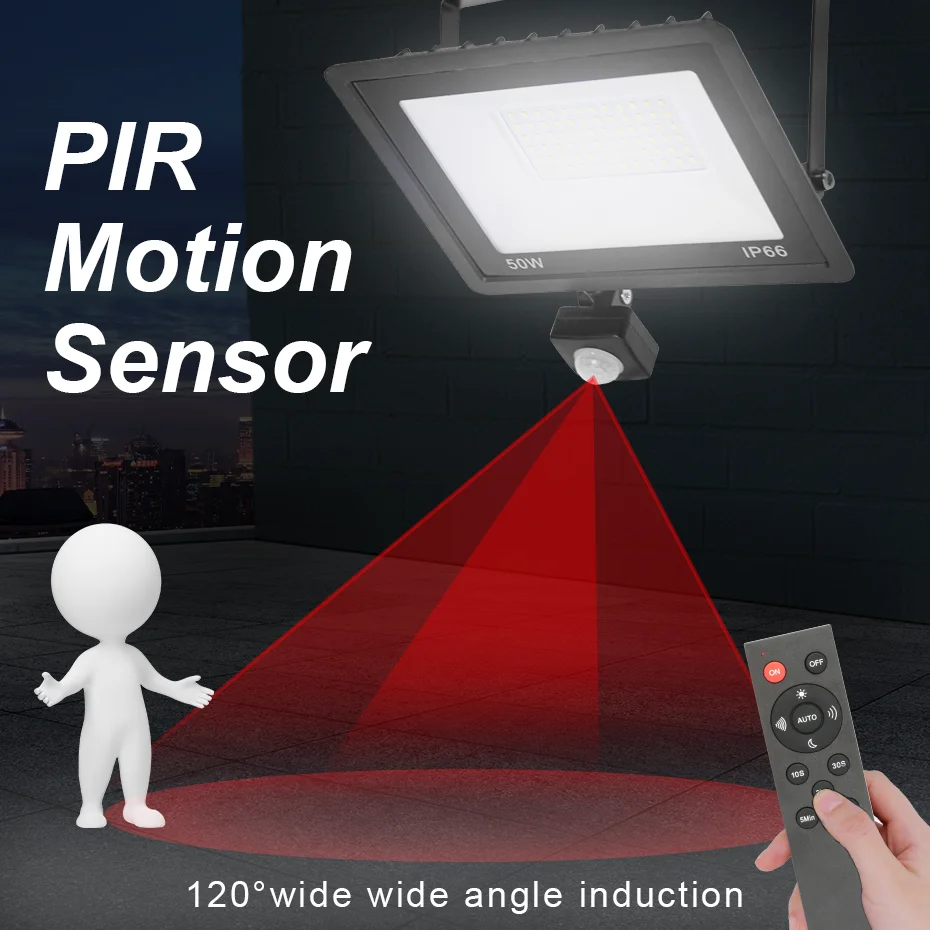

7.Sensing distance is about 2-8 meters:Press the "ripple" button the right to set the minimum sensing distance (about 2 meters).Press the "ripple" button on the left to set the maximum sensing distance (approximately 8 meters).

Features:

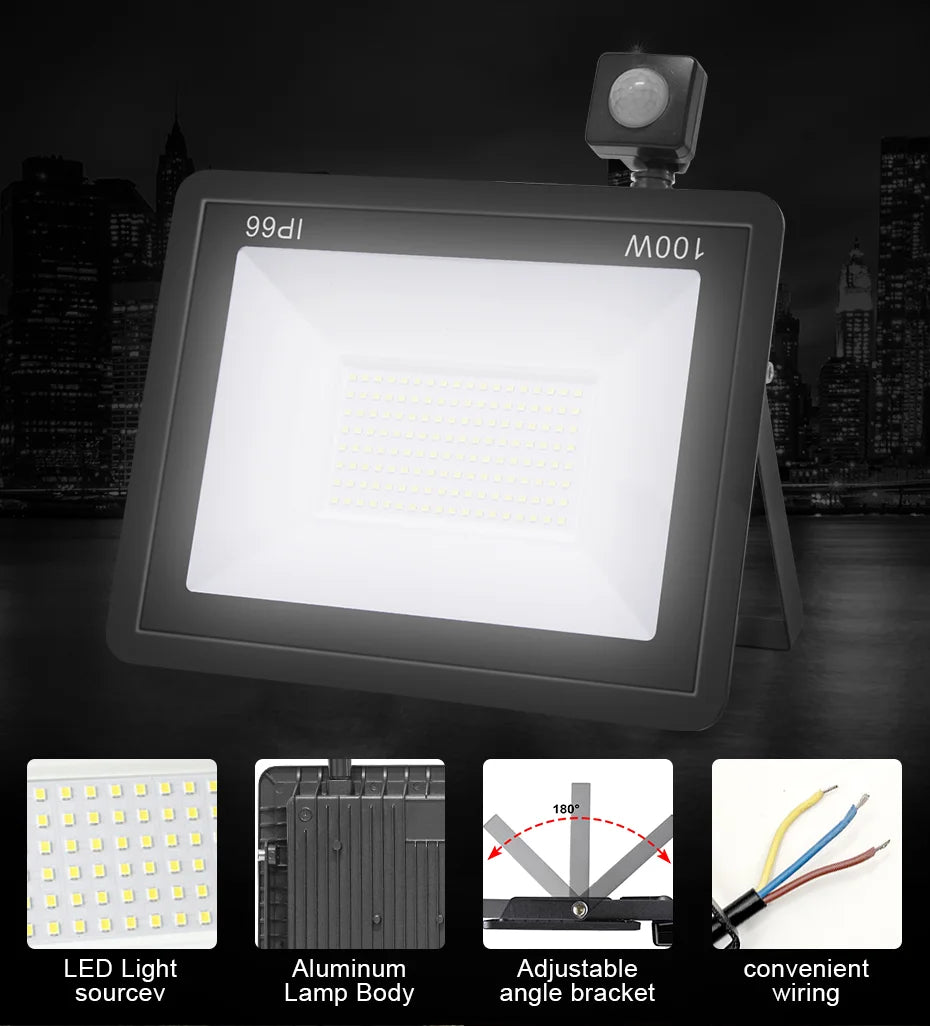

[Super bright/energy saving chip]

Using high quality 2835 lamp beads as the light source of the floodlight, using 100W power can produce up to 9000LM brightness; high quality body sensor LED floodlight can completely replace the traditional halogen lamp and save more than 85% of electricity, saving your electricity bill.

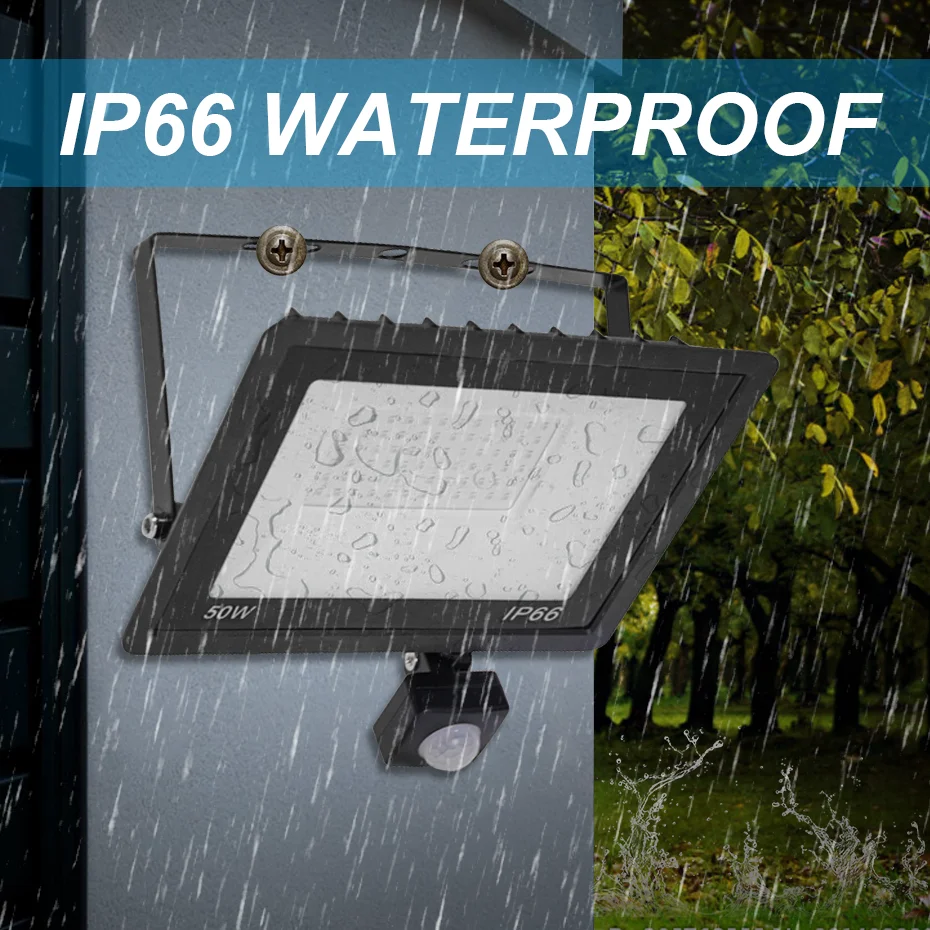

[IP66 Waterproof]

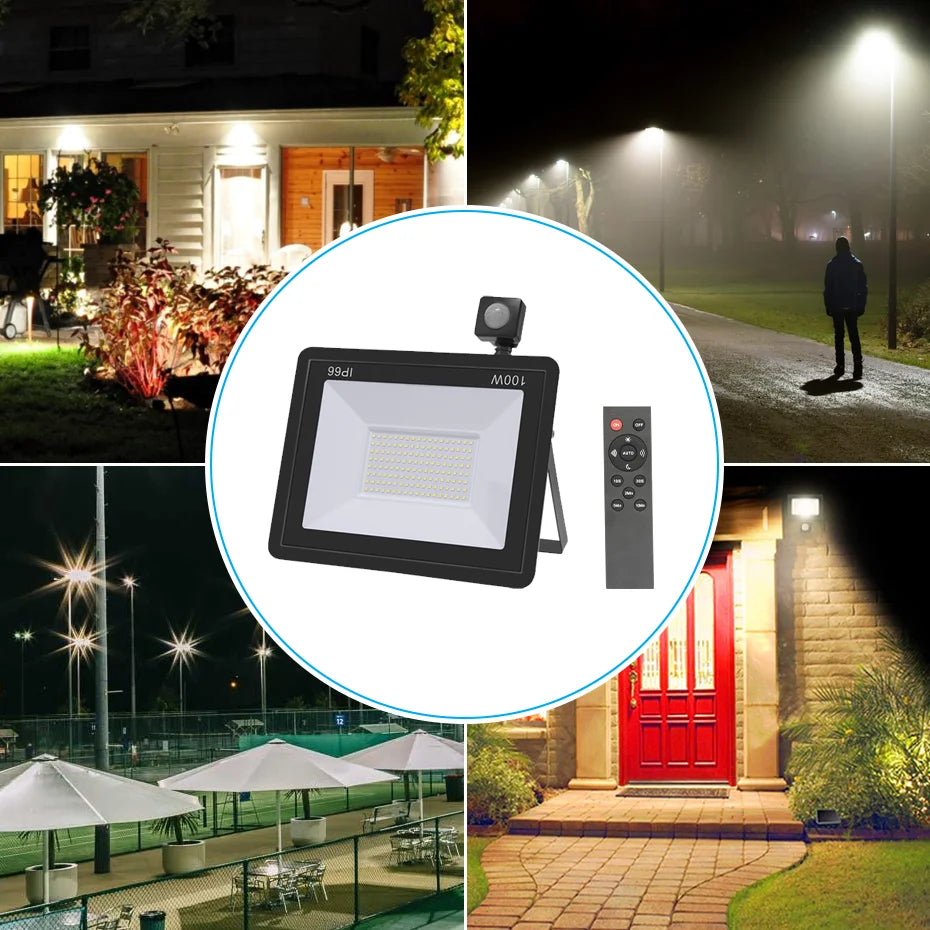

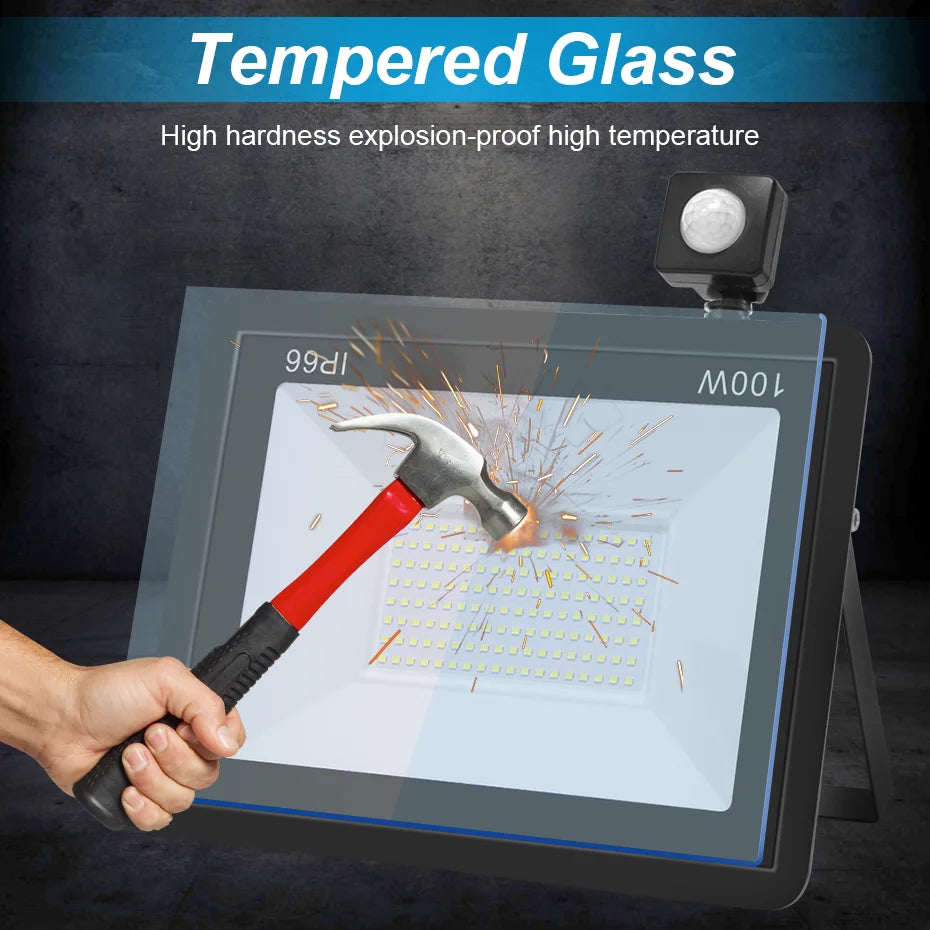

Using die-cast aluminum housing and tempered glass LED floodlight,Waterproof rating of IP66;This ensures that your floodlight will work well in rainy, sleet and snowy conditions, making it the ideal outdoor security light for your garden, yard, garage, dock, stadium, tunnel, etc.

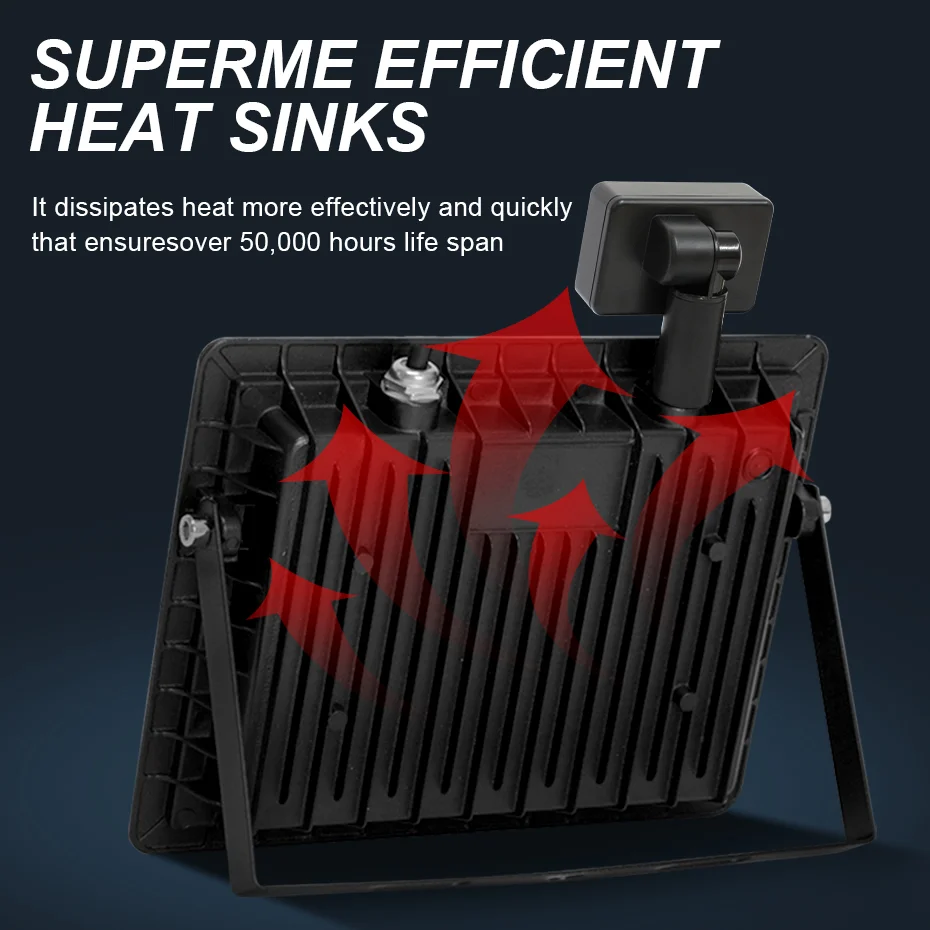

[Efficient heat dissipation]

Designed with high quality heat sink and high strength tempered glass;Up to 50,000 hours of life;Extended product life and safety; unique fine-grain tempered glass optical design for softer light; effectively avoid overheating, over current or short circuit.

[Easy Installation]

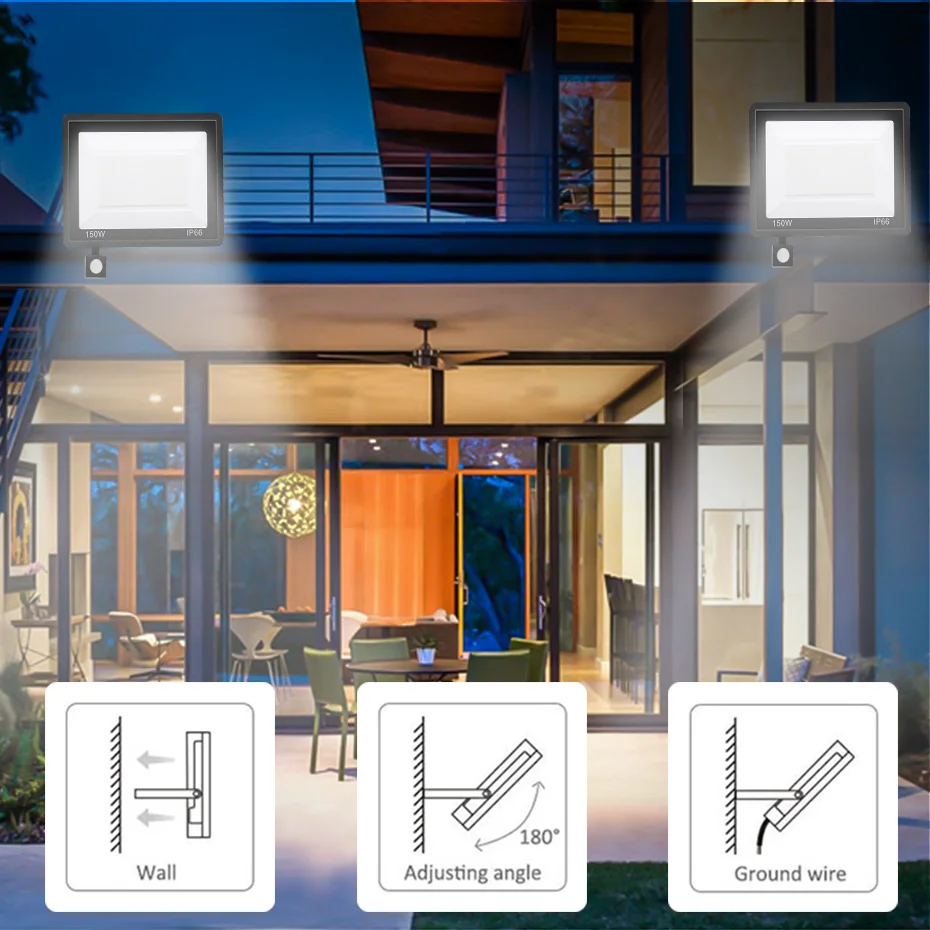

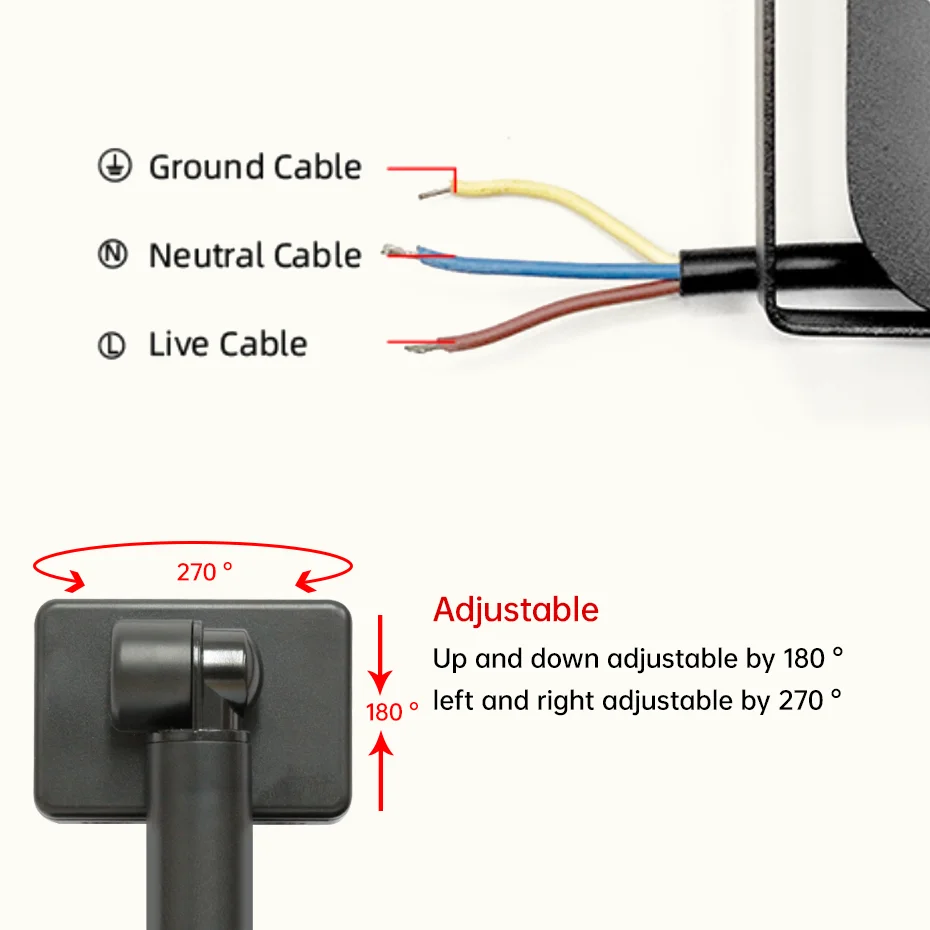

Adjustable metal bracket, can be applied to the wall, entrance, ceiling and other flexible installation methods by in different angles, it is recommended not to install on the ground, which will affect the induction effect; wiring color code: yellow wire - ground, brown wire - Live wire, blue wire - neutral wire.

[Induction+Remote Control]

Paired with a high-performance infrared remote control, it can achieve remote control of sensing floodlights within a range of 8-10 meters, no longer limited to a single sensing mode. Can enter all-weather sensing mode or sensing automatic mode (power-saving mode). You can also set the light to turn off at different times after the person leaves the sensing area. Make your sensor's floodlight function more intelligent and versatile.
