SPECIFICATIONS

Battery Included: Yes

Brand Name: NoEnName_Null

Communication: NFC

Configured For: Smartphones

High-concerned chemical: None

Origin: Mainland China

Panning Angle: -77° - 255°

Rolling Angle: 360

Titling Angle: -224° - 100°

Type: handheld gimbal

of Axes: 3-Axis

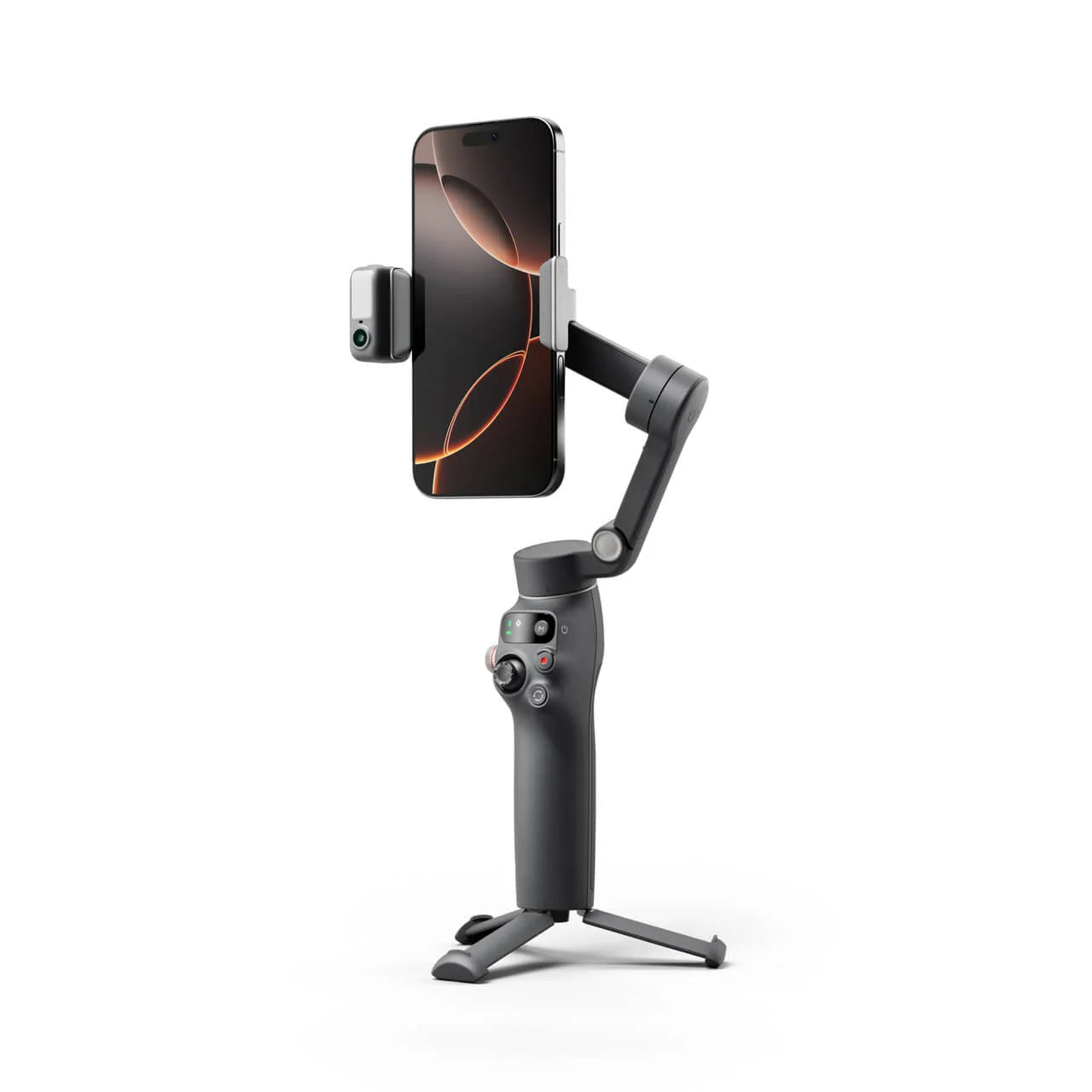

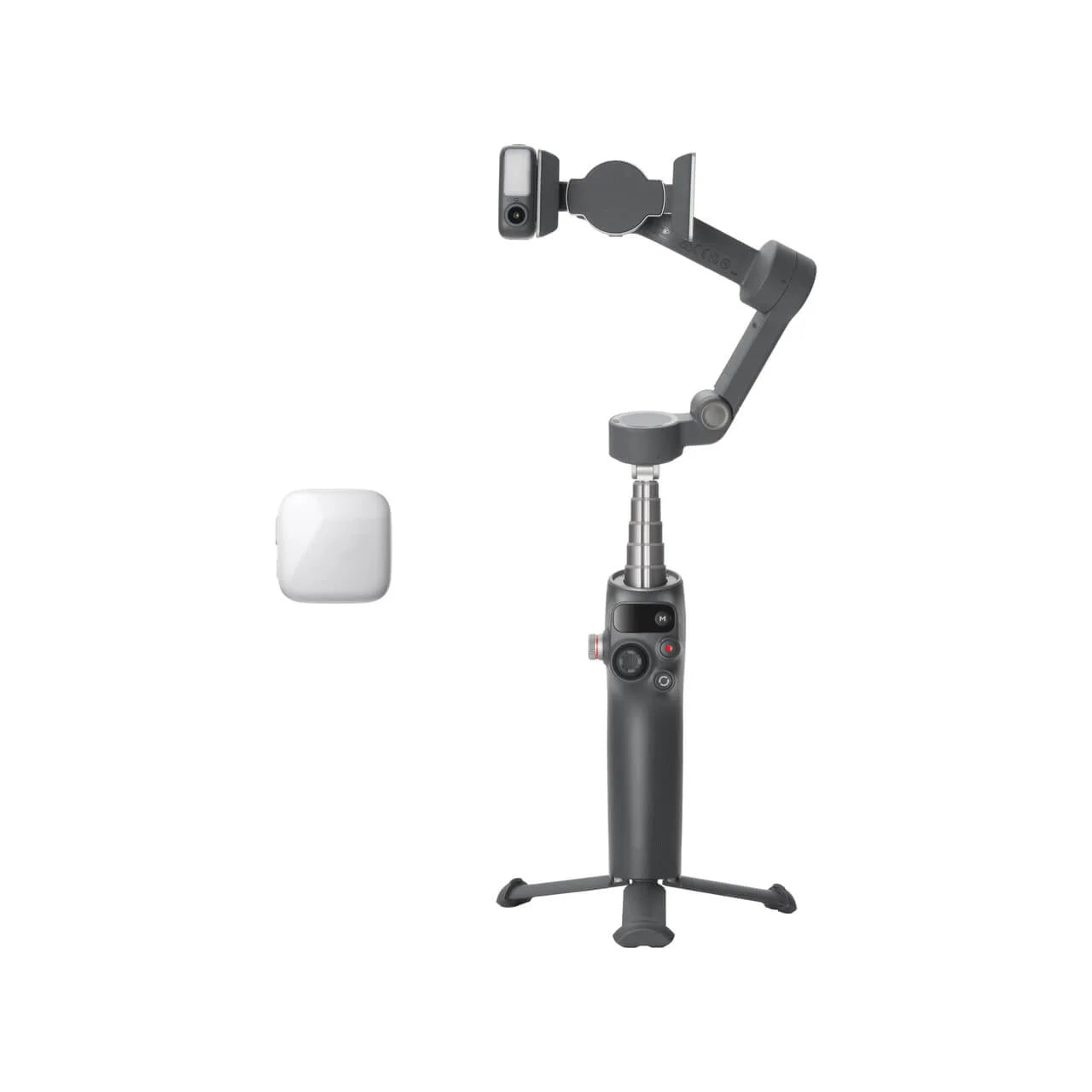

Osmo Mobile 8 Follow and Fill Light and Sound Supports 360° Horizontal Unrestricted Rotation

Technical parameters

General

"Size"

Unfolded: 288 mm in length, 107 mm in width, 96 mm in height

Folding: 190 mm in length, 95 mm in width, and 46 mm in height

Weight

Gimbal + built-in tripod + magnetic phone holder + multi-functional tracking module: approximately 370 grams

The data is from the laboratory and the measured values are obtained in a specific test environment. There may be actual differences. Please refer to the actual delivery for details.

Extension rod

Built-in extension rod

Maximum stretching length: 215 millimeters

Applicable mobile phone weight

170 grams to 300 grams

Applicable mobile phone thickness

6.9 millimeters to 10 millimeters

Applicable mobile phone width

67 millimeters to 84 millimeters

Bottom interface

1/4 "-20 UNC threaded hole

Battery

Type

Li-Po 1S

Capacity

3350 milliampere-hours

Energy

12.06 watt-hours

Charging ambient temperature

5℃ to 40℃

Operating ambient temperature

0℃ to 40℃

Working hours

About 10 hours

(Reference values measured when the pan-tilt is leveled and stationary without additional accessories)

When the intelligent following function of the multi-functional tracking module is enabled and the supplementary light is not turned on, the working time is approximately 5 hours. When the intelligent following function of the multi-functional tracking module is enabled and the fill light is adjusted to the brightest, the working time is approximately 4 hours. If a gimbal is used to charge a mobile phone, it will shorten the battery life of the gimbal itself.

Charging time

About 2.5 hours

(Measured with a 10-watt charger)

PTZ charging interface

USB-C

Charge the mobile phone

Support

holder

Control the rotation Angle

Translation: 360° unlimited positions

Rolling: -67° to 245°

Pitch: -20° to 40°

Structural rotation range

Translation: 360° unlimited positions

Rolling: -77° to 255°

Pitch: -224° to 100°

Maximum controlled rotational speed

120°/s

Wireless mode

Model

Bluetooth 5.3

Software

App

Mimo

Tripod

"Size"

Built-in tripod

Length: 67 millimeters

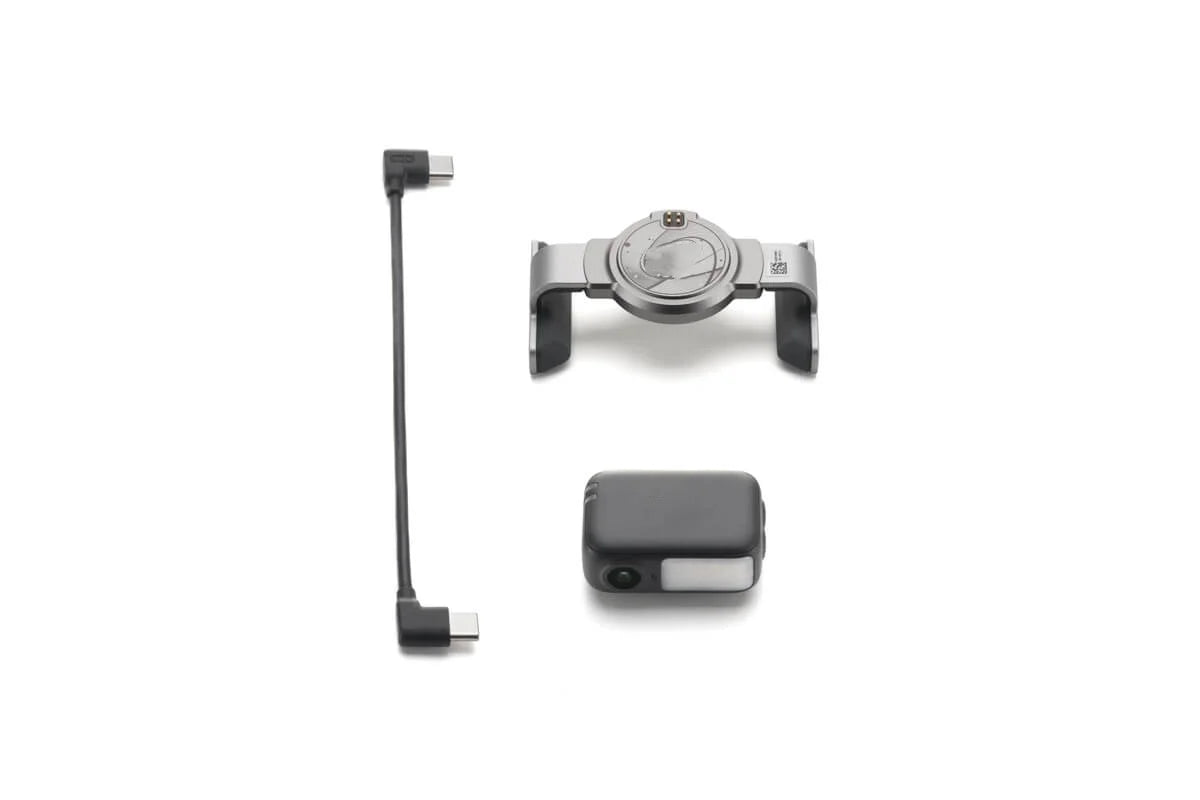

Multifunctional tracking module

GFSK

2Mbps

GFSK Transmission Power (EIRP

<16 dBm

GFSK operating frequency

2.4000 GHz to 2.4835 GHz

Bluetooth Protocol

Bluetooth 5.3

Bluetooth Transmission Power (EIRP

<16 dBm

Bluetooth operating frequency

2.4000 GHz to 2.4835 GHz

Illuminance of the fill light

40 lux

The data represents the maximum brightness value at a distance of 0.6 meters from the subject and is for reference only.

Color temperature of the fill light

From 2500 K to 6000 K
