SPECIFICATIONS

Material: Plastic

Quantity: 1 pcs

RC Parts Accs: Speed Controllers

Technical parameters: value 3

brand name: HOBBYWING

compatible brand: HOBBYWING

place of origin: China,GuangDongChina

private mold: Yes

Product Description

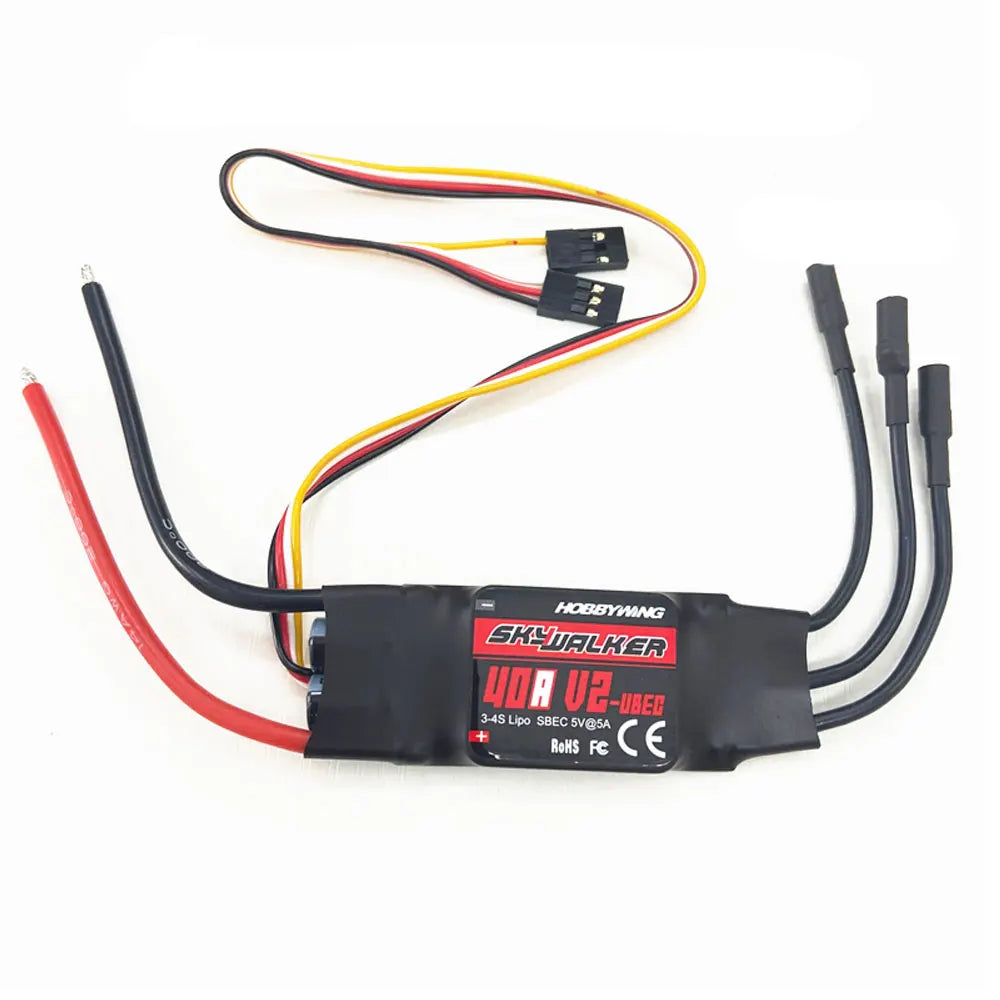

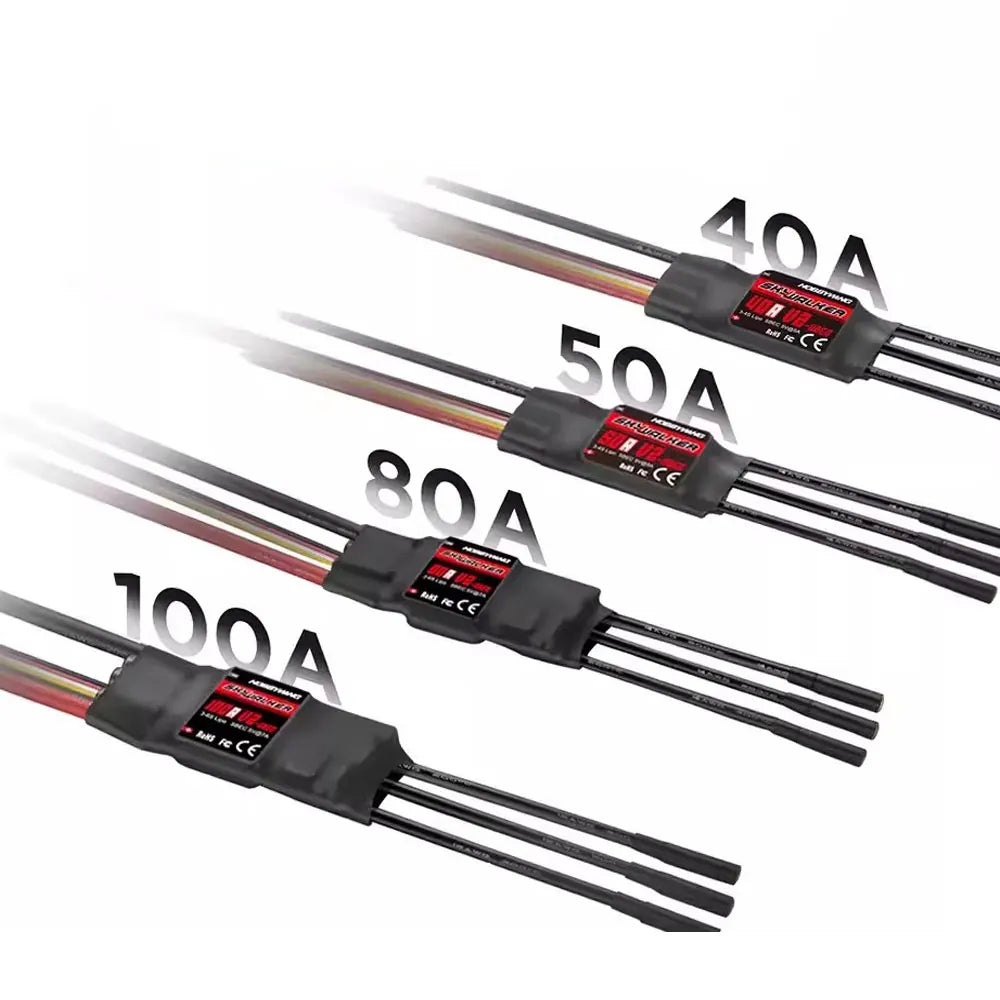

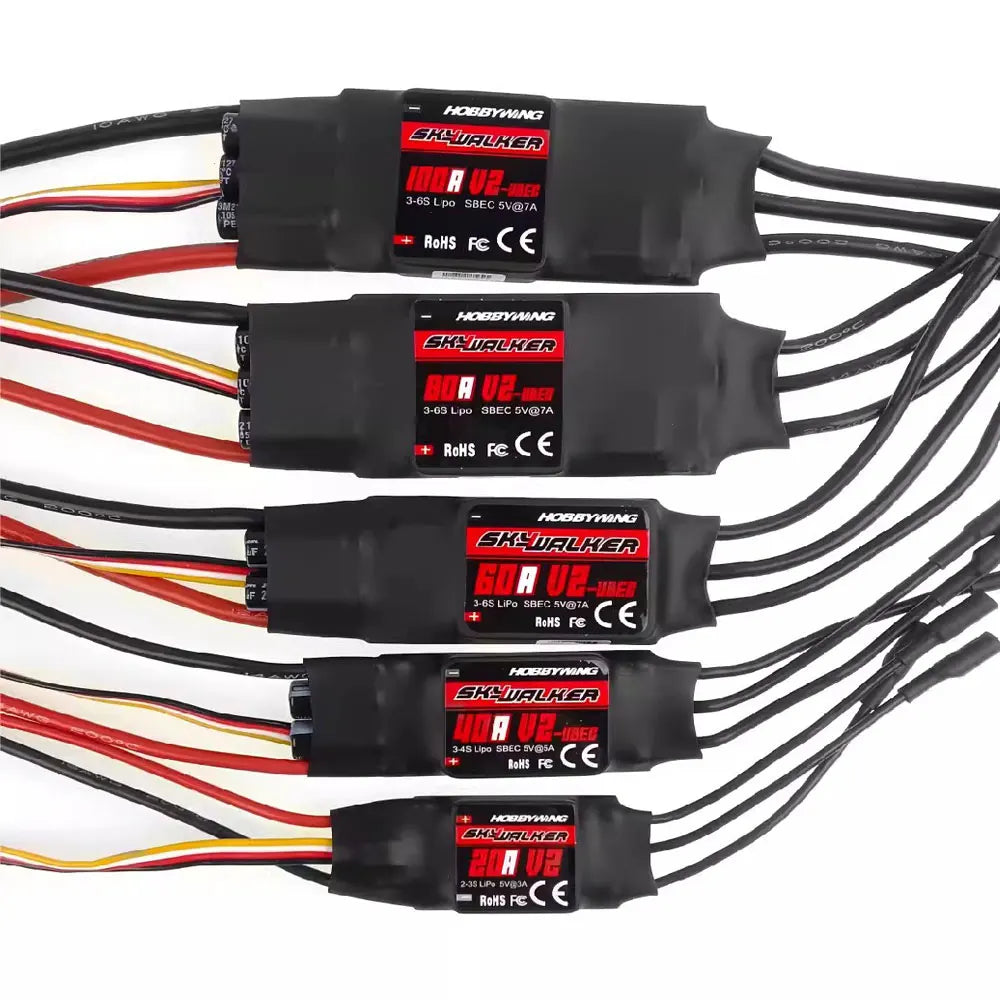

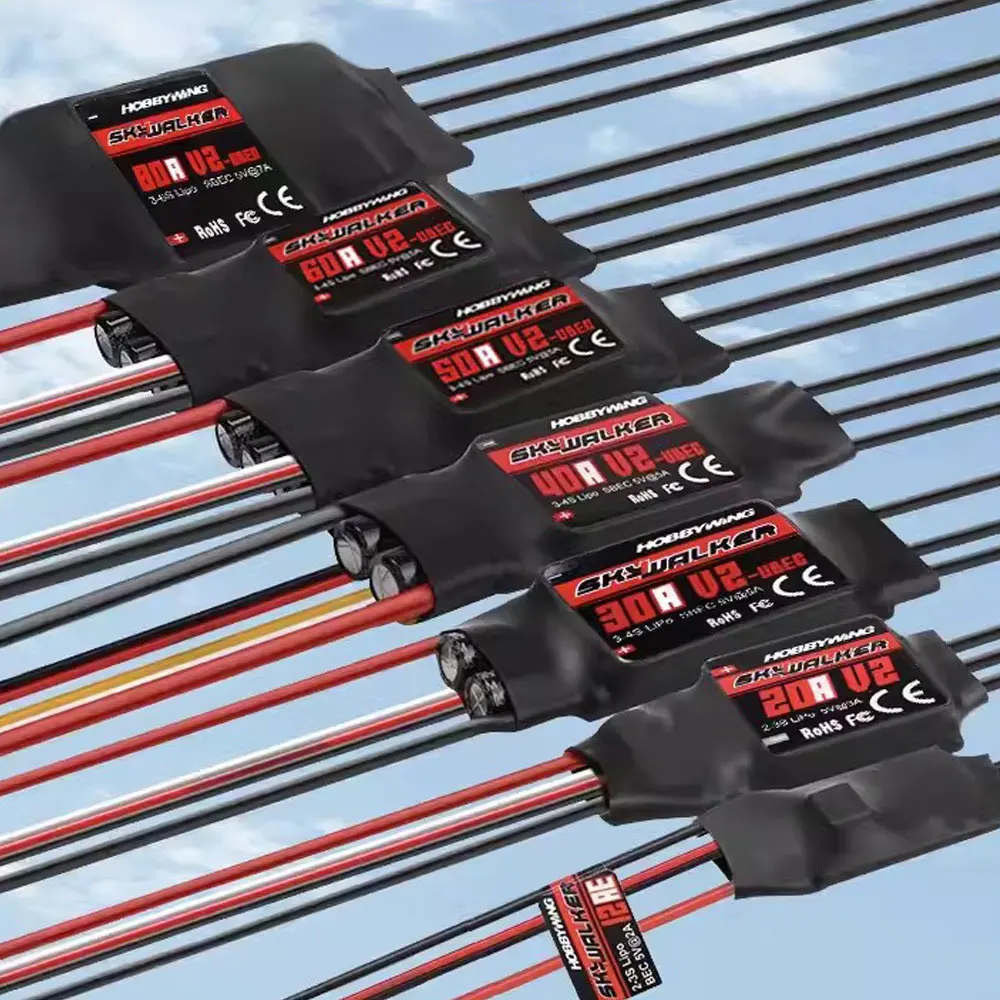

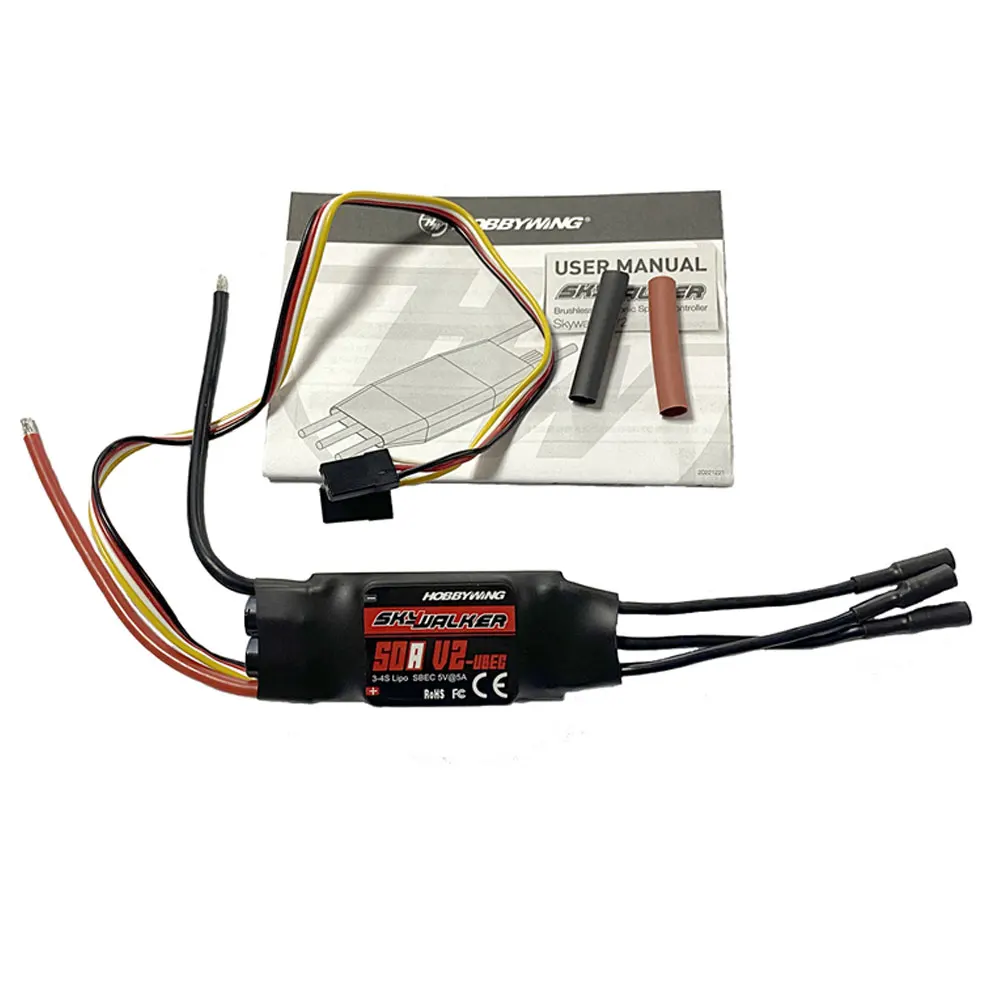

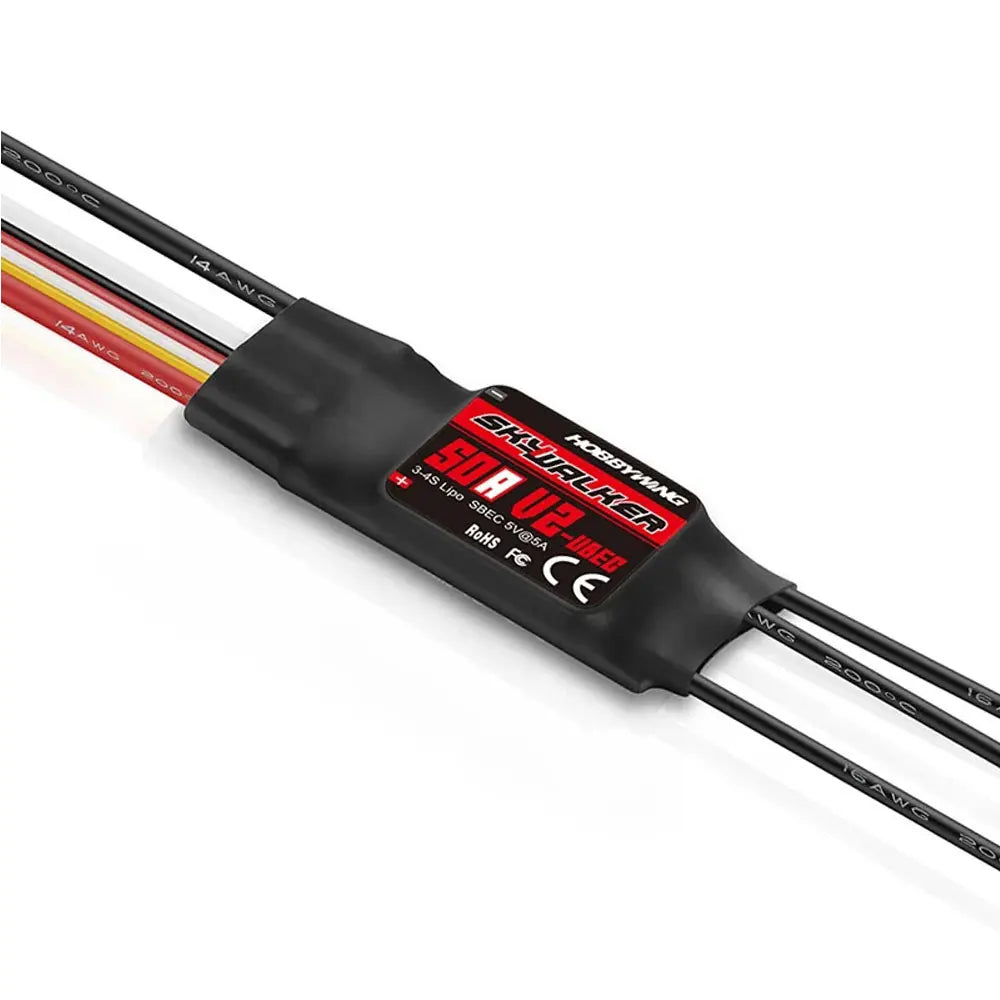

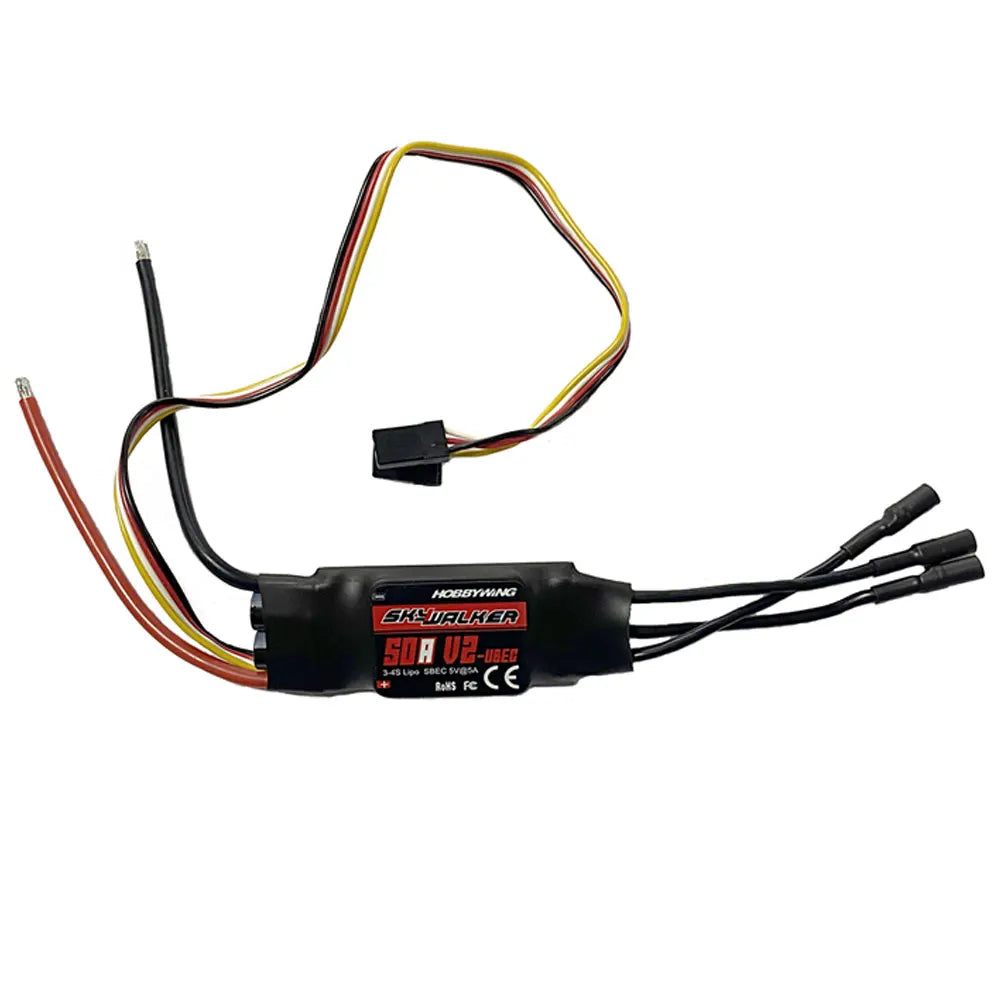

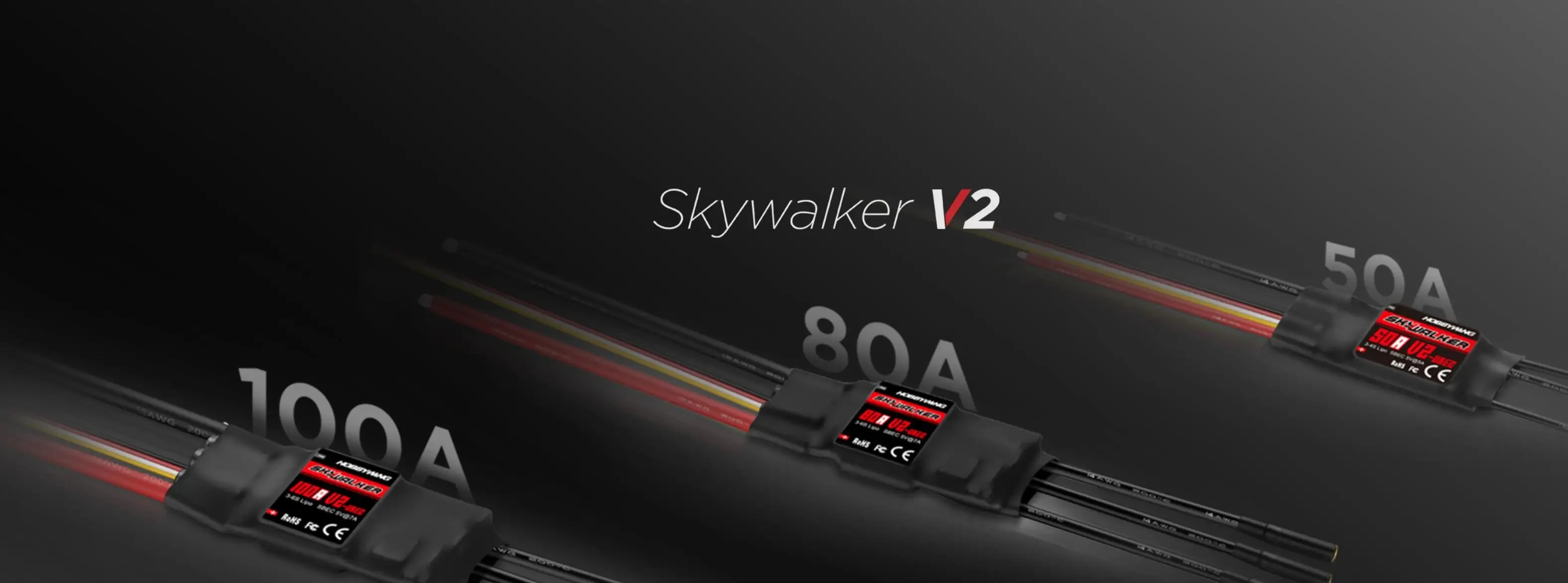

Item: Hobbywing Skywalker 20A 30A 40A 50A 60A 80A 100A V2 series ESC Speed Controler Parameters: 20A: Model: Skywalker-20A Continuous Current: 20A Burst Current (>10s): 25A BEC Mode: Linear BEC Output: 5V2A BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo) Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH) Net Weight: 19g Dimension (L x W x H): 42 x 25 x 8mm Cable length: 25cm Package size: 12.5 * 11 * 2.5cm 30A: Constant Current: 30A Peak Current:40A(10s) Voltage: 2-3S lixx BEC: Yes BEC Output: 5V/2A Color: black Programmable:Yes Size: 70*25*8mm (not including cable length) Net Weight:38g 40A V2: Model: Skywalker-40A V2 UBEC Continuous Current: 40A Burst Current (>10s): 55A BEC Mode: Linear BEC Output: 5V5A BEC Output Capability: 5 Servos (3S Lipo) / 4 Servos (3S Lipo) Battery Cell: 3-4S (Lipo) Net Weight: 35g Dimension (L x W x H): 68 x 25 x 8mm Backward thrust:YES 50A V2: COntinuous output: 50A V2 UBEC Burst current: 60A@10S Power input: 3-4S Lixx/11-12S Nixx 5V/5A BEC output, switch mode Refresh rate: 50Hz-432Hz Max. rotation speed: 2-Pole 210000rpm/min; 6-Pole 70000rpm/min; 12-Pole 35000rpm/min Dimension: 68*25*12mm Weight: 43g Backward thrust:YES 60A: Item Name: Hobbywing SkyWalker 60A UBEC ESC Constant Current: 60A Burst Current (>10s): 80A BEC Mode: switch mode BEC Output: 5V at 3A Battery Cell: 3-6 cells Lipo,or 11-18 cells NiHH Refresh Rate: 50Hz-432Hz Dimension: 77 x 35 x 14 mm Weight: 63g Maximum speed: 210000 RPM (2 poles motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor) 80A V2: Item Name: SkyWalker 80A V2 UBEC Type: Brushless ESC,Regular voltage Cont./Peak Current: 80A/100A Input: 3-6S LiPo,11.1-18s Ni-MH BEC Output: Switch Mode--5V,7A Input Wires: Red-12AWG-150mm*1,Black-12AWG-150mm*1 Output Wires: Black-14AWG-100mm*3 Input Connectors: NO Output Connectors: NO ESC Programing via: Transmitter,LED Program Card,Program Port (Program/Throttle Wire) Firmware Upgrade: Not Supported Size: 85.0x36.0x9.0mm Weight: 79g Backward thrust:YES 100A V2: Item Name: SkyWalker 100A V2 UBEC Type: Brushless ESC,Regular voltage Cont./Peak Current: 100A/120A Input: 3-6S LiPo,11.1-18s Ni-MH BEC Output: Switch Mode--5V,7A Input Wires: Red-12AWG-150mm*1,Black-12AWG-150mm*1 Output Wires: Black-14AWG-100mm*3 Input Connectors: NO Output Connectors: NO ESC Programing via: Transmitter,LED Program Card,Program Port (Program/Throttle Wire) Firmware Upgrade: Not Supported Size: 85.0x36.0x9.0mm Weight: 92g Backward thrust:YES Features: High Quality & Reliability Good quality comoponents guarantees the high quality and reliability of SkyWalker series of aircraft ESC. Programmable Parameters With a LED program card, then you can program relevant parameters on your Skywalker to your personal preference. Multiple Protections Multiple protection features include abnomal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC. Package Included: Hobbywing SKYWALKER V2 series ESC x1
