SPECIFICATIONS

Brand: DITRON

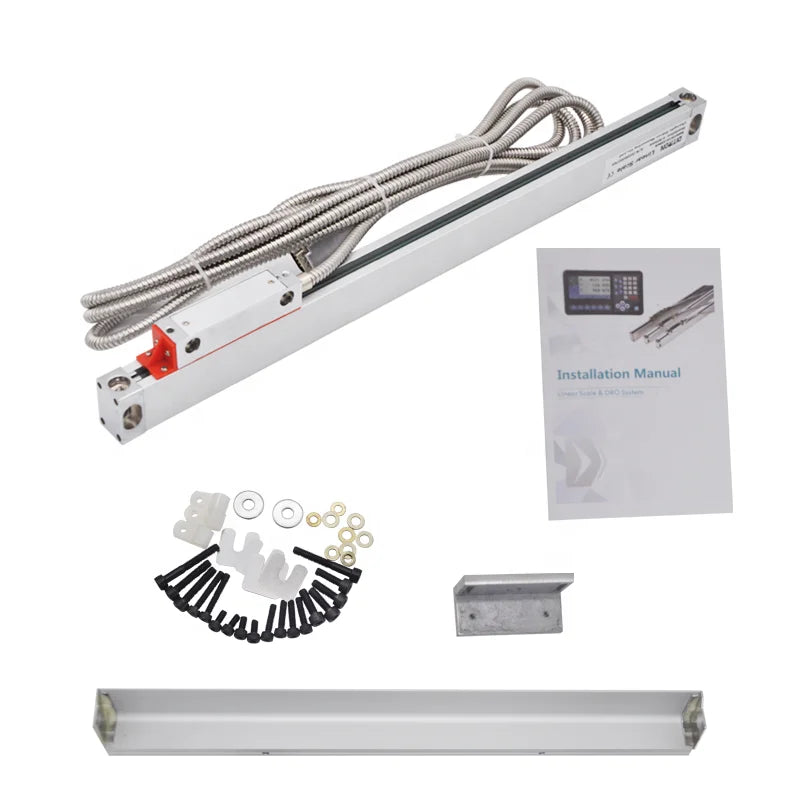

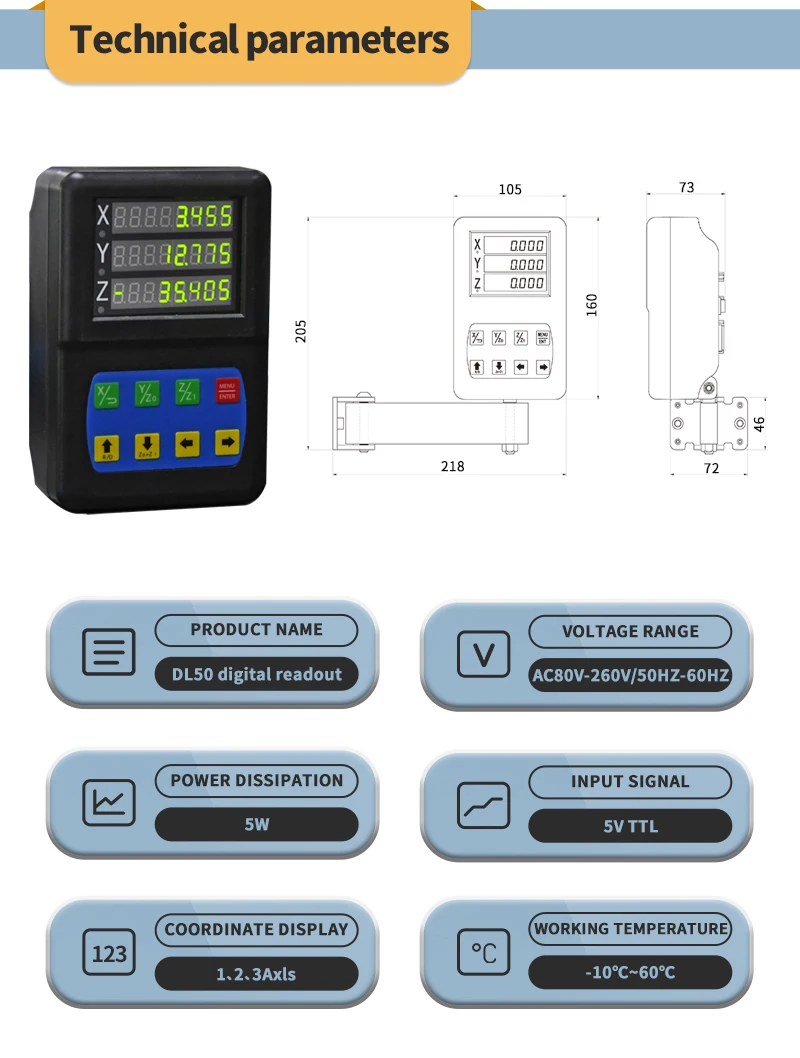

Display Case Size (mm): 105X160X73

Display Screen: LED

Input signal: TTL/RS422

Material of Case: Plastic

Max. Coordinate Axes: 2 ,3 axis

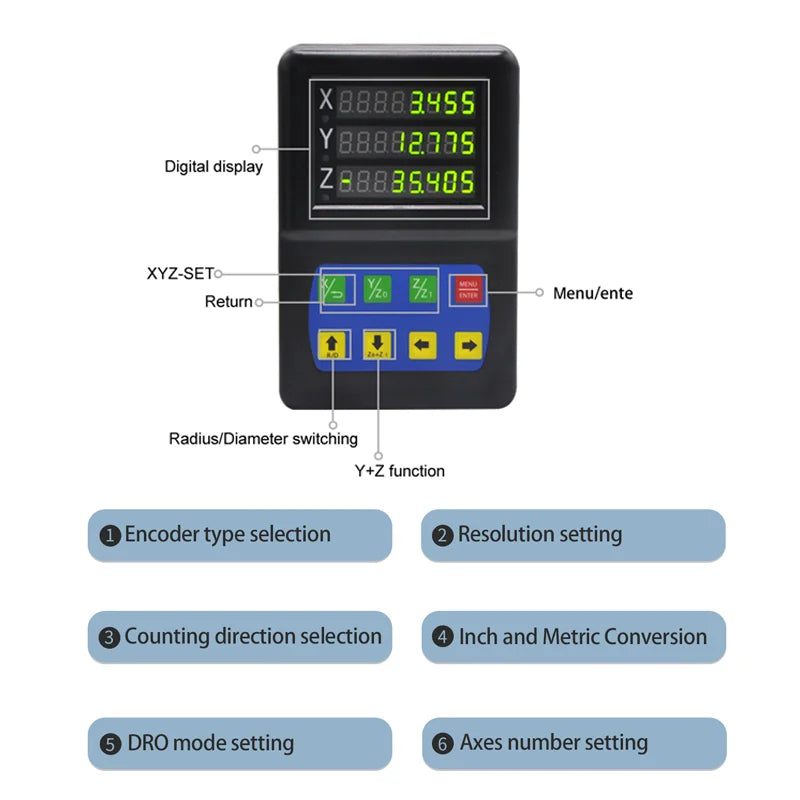

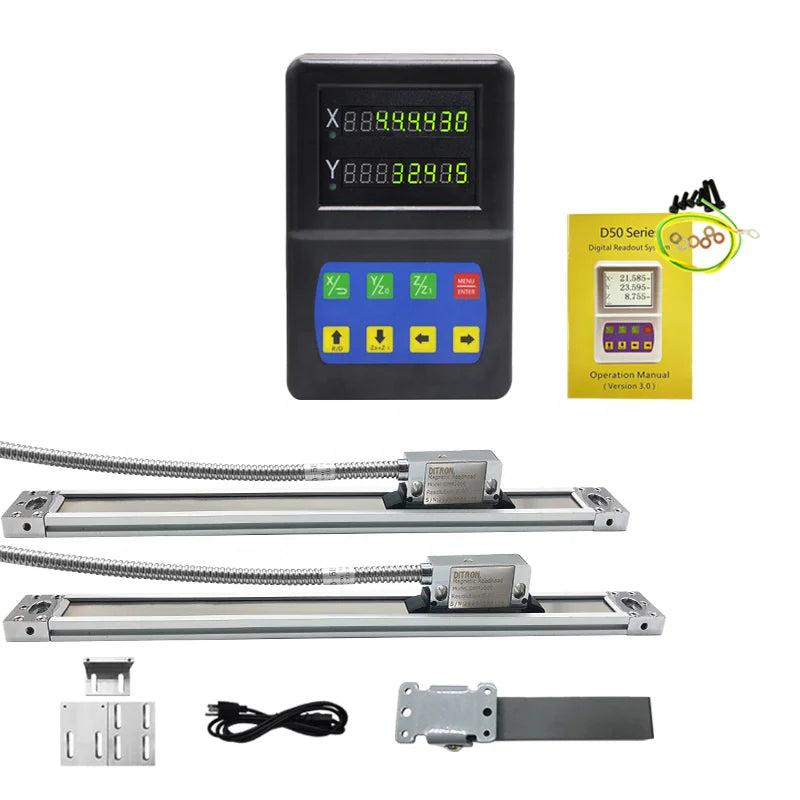

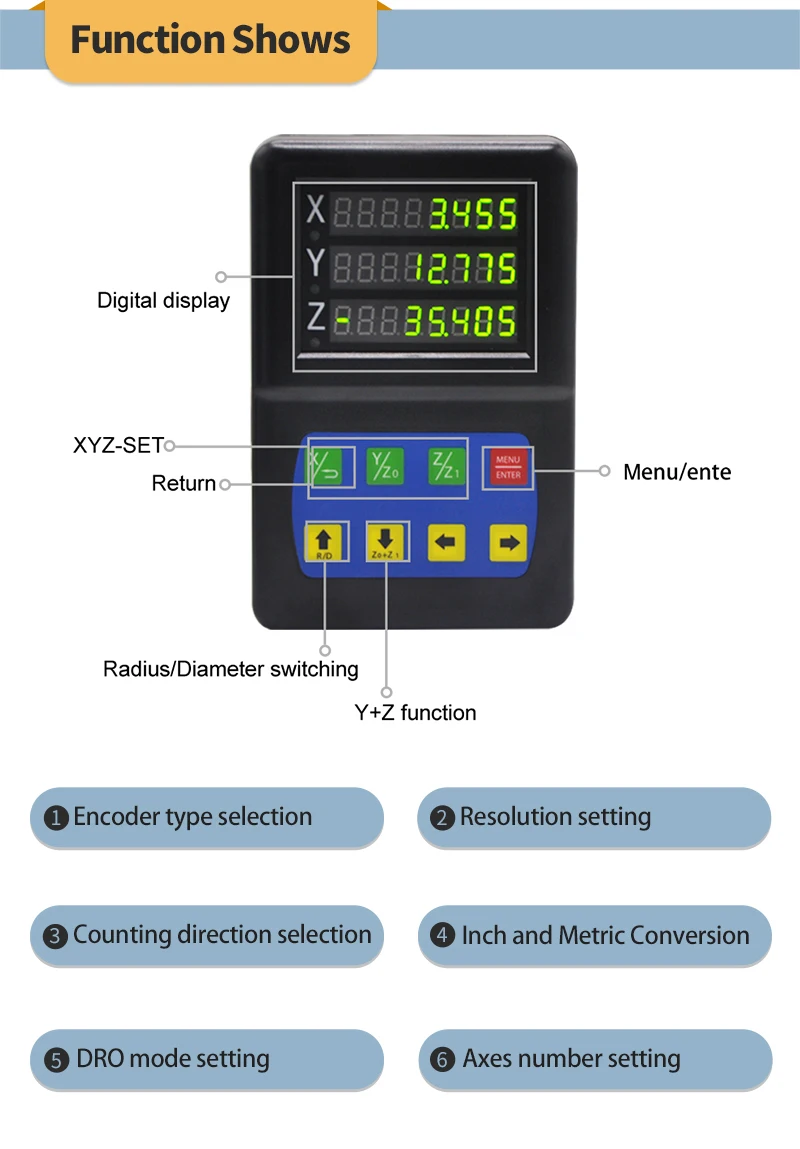

Operating keyboard: Membrane Keys

Power Dissipation: 5W

Voltate range: AC 80~260V (50~60HZ)

Working temperature: '-10~60℃

brand name: Ditron

customized support: OEM,ODM,OBM

material: Zinc Alloy

place of origin: Sichuan, China

warranty: 3 years

Detailed Images

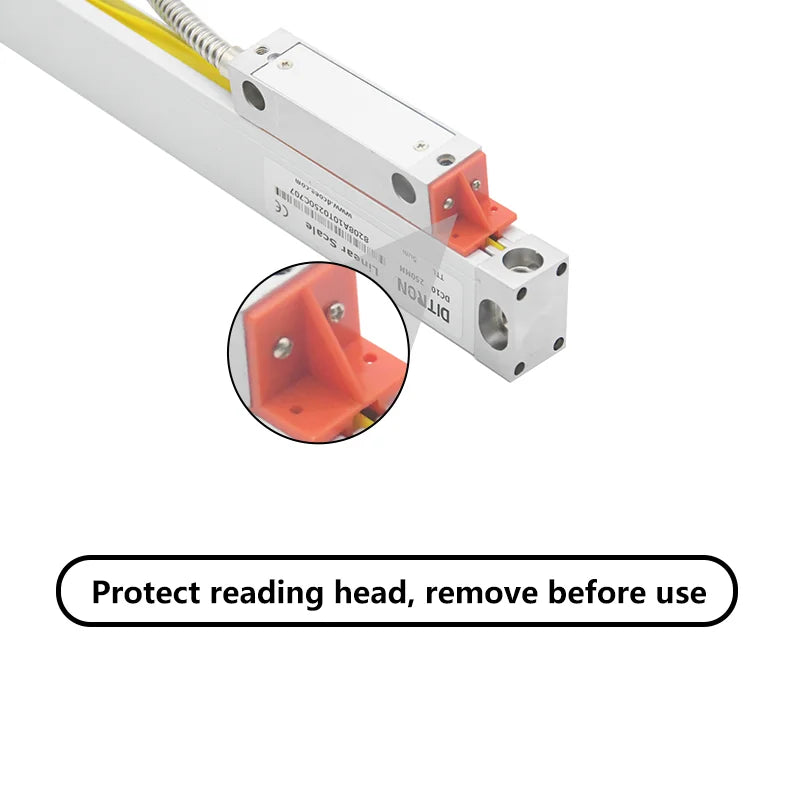

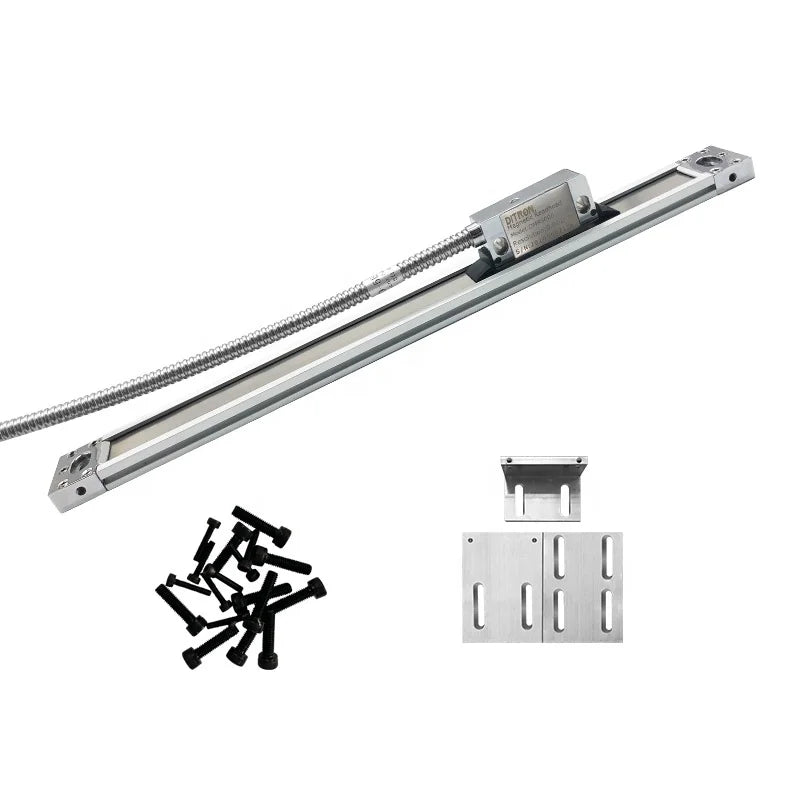

Magnetic Scale Technical Parameters:

1.Voltage: 4.7V to 7.5V(The range of anti-pole and over-

voltage protection:-20V-+20V)

2.Supply current:

Cable Voltage-drop:~4.8mV/m-without load

~12.5mV/m-with 120Ω load

3.Output signal:RS422,TTL

4.Signal Level:UH≥2.5V at-IH=20mA

UL≤0.5V at IL=20mA

5.Temperature: working:-10℃-+80℃

6.Storage:-40℃-+85℃

7.Resolution:0.01mm,0.005mm,0.001mm

8.Accuracy:±0.02mm/M

9.Repeat Accuracy:1 pulse

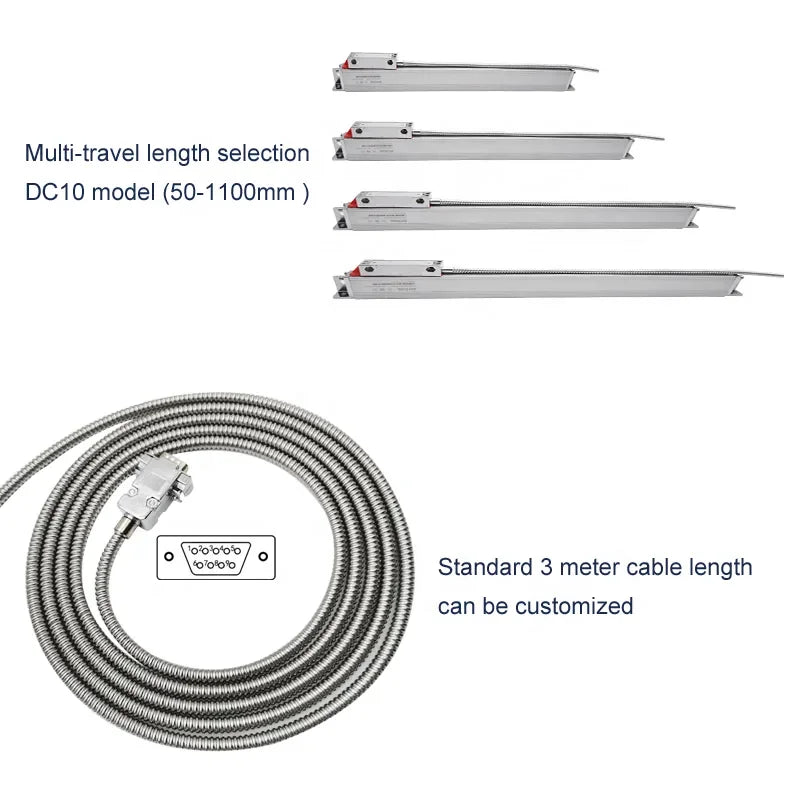

10.Maximum cable length:200M

Features:

1.Rated to IP67 protection class.

2.Automatic gain control technics, reduced the requirement for installation. The gap between the reader and tape can be 3mm

3.Protection of the anti-pole of the power and wrong wire connection(voltage<5.5V)

4.High Speed,can reach 150 Meters/Minute for the resolution of 5 micrion

5.Clear indication LED light(Red&Green).easy for installation and adjustment.
