SPECIFICATIONS

Battery Included: No

Brand Name: NoEnName_Null,Sihovision

Brightness: 400nits(1000nits sunlight readable Optional)

CPU: Intel Celeron J4125 2.0GHz quad core fanless

Certificate: CE FCC RoHS

High-concerned chemical: None

OS: Win7/8/10 Linux Ubuntu Debian etc.

Origin: Mainland China

Place of Origin: Guangdong, China

Products Status: Stock

Touch screen type: 10 point capacitive touch

Type: Panel PC

View Angle: 80°/80°/80°/80° (R/L/U/D)

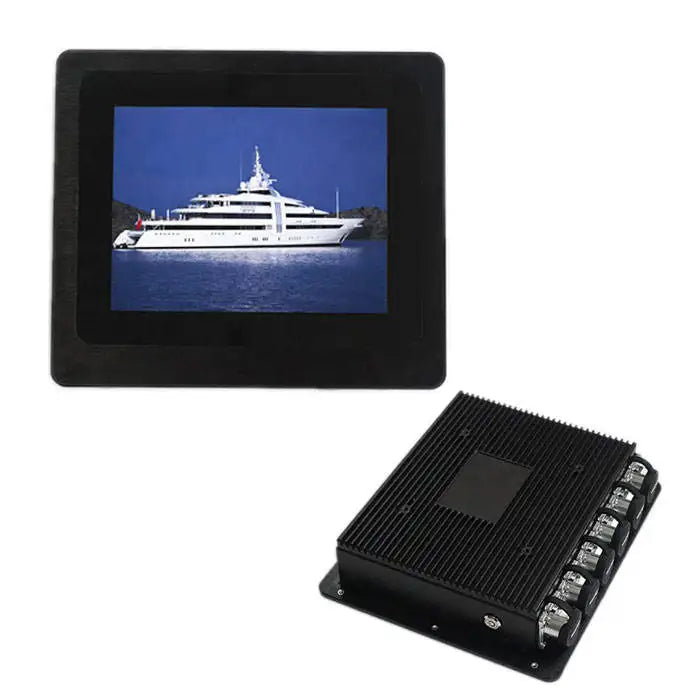

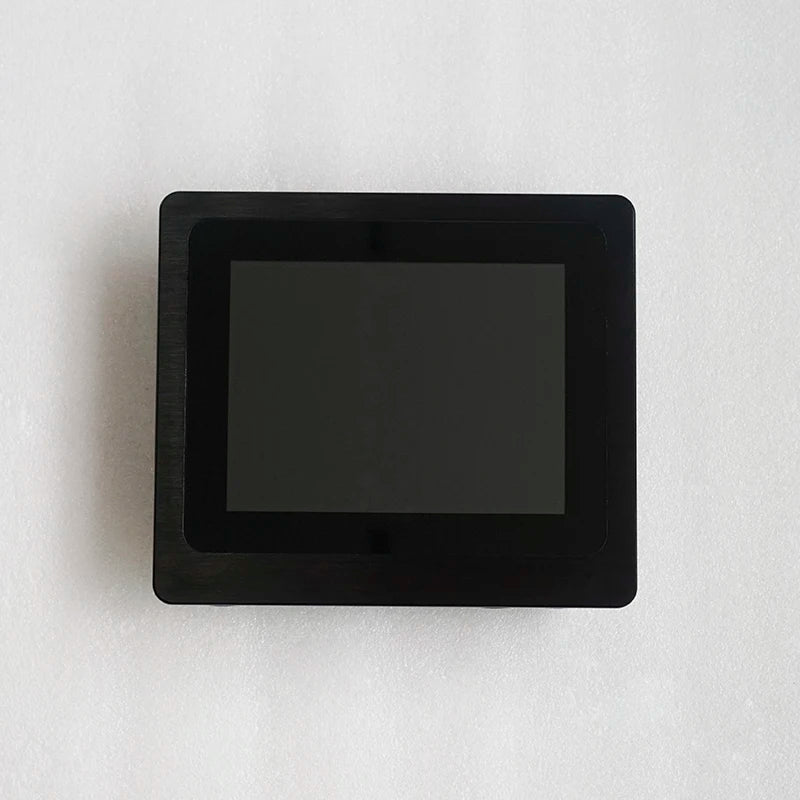

SIHOVISION 8 inch waterproof ip65 all in one computer 1000 nits capacitive touchscreen industrial pc panel

Product Description

Feature

1. Front bezel aluminum alloy brushed metal craft, seamless design, Full IP67 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, desk stand mouting etc.

Specification

Model:SC08W
PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
Chipset	Intel ValleyView SSA-CUnit
Memory	2G DDR3 (4G, 8G optional)
Hard Drive Capacity	32G SSD
Hard Drive Optional	SSD: 64G,128GB, 256GB
		HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1×Realtek RTL 8111E Gigabit Ethernet controller

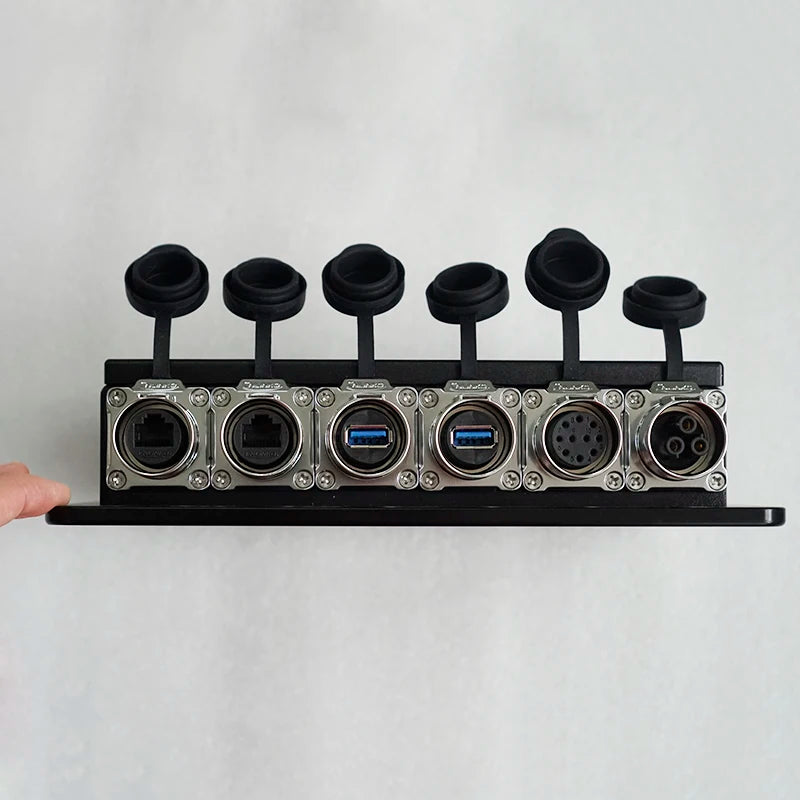

I/O Interface	2x USB, 2x COM RS232, 2x RJ45
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size	8"
Resolution	1024*768
Aspect ratio	4:3
Support Color	16.7M colors
Brightness (cd/m²)	400 nits (1000cd/m2 sunlight readable optional)
Response time	5ms
Contrast ratio	1000:1
View angle	80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type	Project Capacitive Touch (10 points)
Touch Interface	USB (RS232 optional)
Touch response time	2ms
Luminousness	90%
Surface Hardness	7H
Working life	>50 million times
Touch options	( 5 wire resistive touch, IR touch optional)
Power Supply

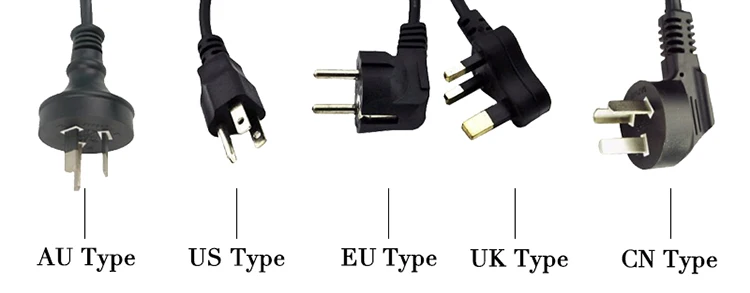

External Power Supply	AC 100 - 240V
Working voltage	DC 12V
Power consumption	≤45W
Enclosure
Material	Aluminum Alloy front bezel + High strength cold rolled steel back case
Color	Silver, Black, white, color can be customized

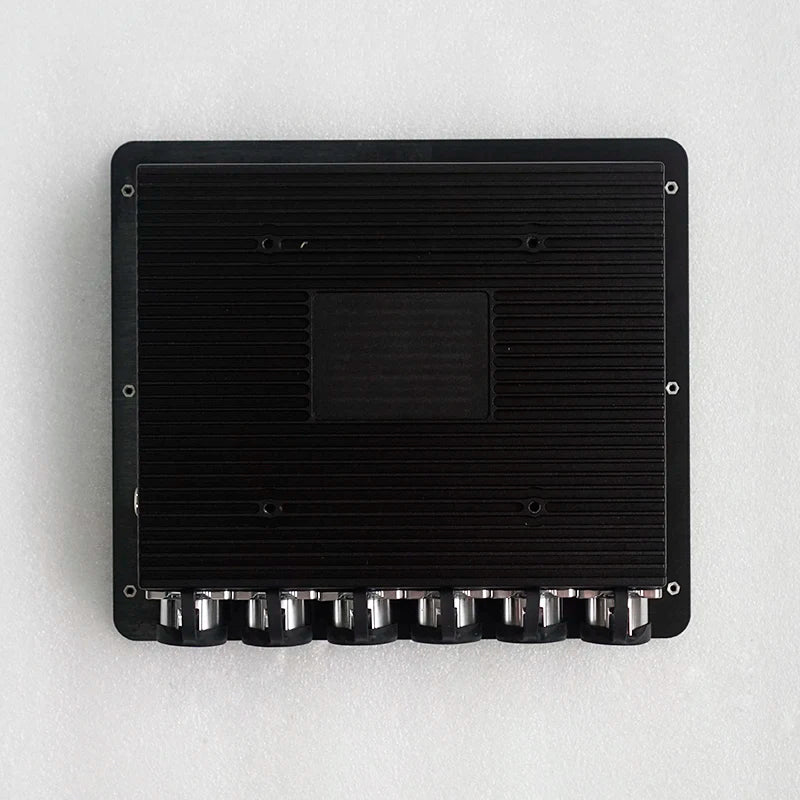

VESA mounting	100×100mm
IP grade	Full IP67 waterproof
Operating Environment
Temperature Range	operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight	3 kg
Gross weight	4.5 kg
Product Dimension	23.1*20.02*5.5 cm
Packing size	43 *38*19 cm

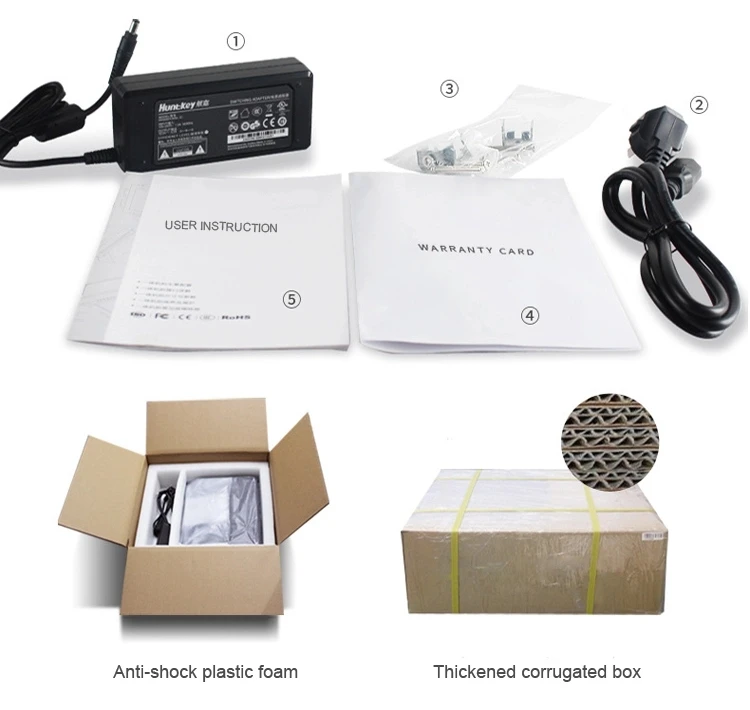

Accessories	Power adapter, 1* waterproof USB cable, 1* waterproof RS232 cable, 2* waterproof RJ45 cable
Other
Mounting (options)	wall mounting
		Open frame (optional)
		desk stand holder (optional)
Warranty	1 year warranty

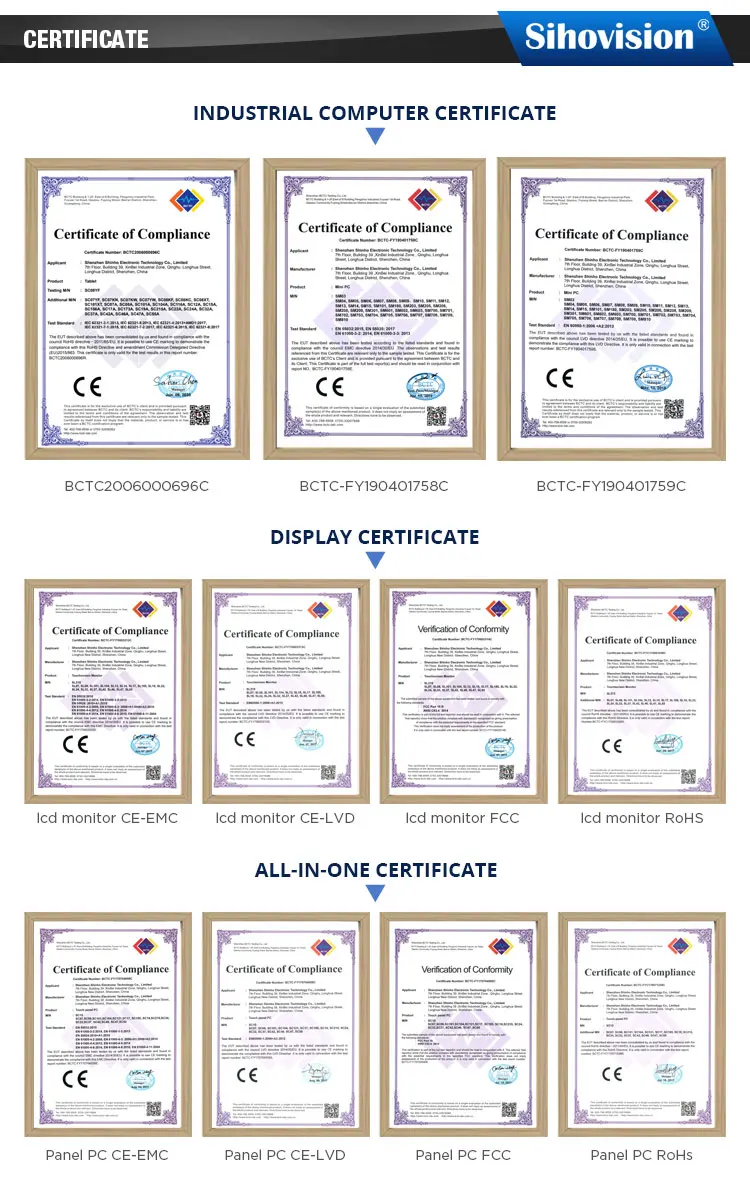

Certificates	CE, FCC, RoHS

Packaging

PACKING

Small product will be packed in strong export carton box, stuffed with foam.

Large product will be packed in wooden case to avoid damage during shipping.

OEM / ODM EXPERIENCE | Professional 6 Years+
