SPECIFICATIONS

Application: 5V1A/5V2A Wireless Power Module

Brand Name: NoEnName_Null

Condition: New

Dissipation Power: 5V1A/5V2A Wireless Power Module

Model Number: 5V1A/5V2A Wireless Power Module

Operating Temperature: 5V1A/5V2A Wireless Power Module

Origin: Mainland China

Package: 5V1A/5V2A Wireless Power Module

Supply Voltage: 5V1A/5V2A Wireless Power Module

Type: Voltage Regulator

is_customized: Yes

About with or without charging protection

(Wireless charging does not have charging protection this statement, because wireless charging only provides a power supply, does not support QI, can not charge the phone, only power supply module)

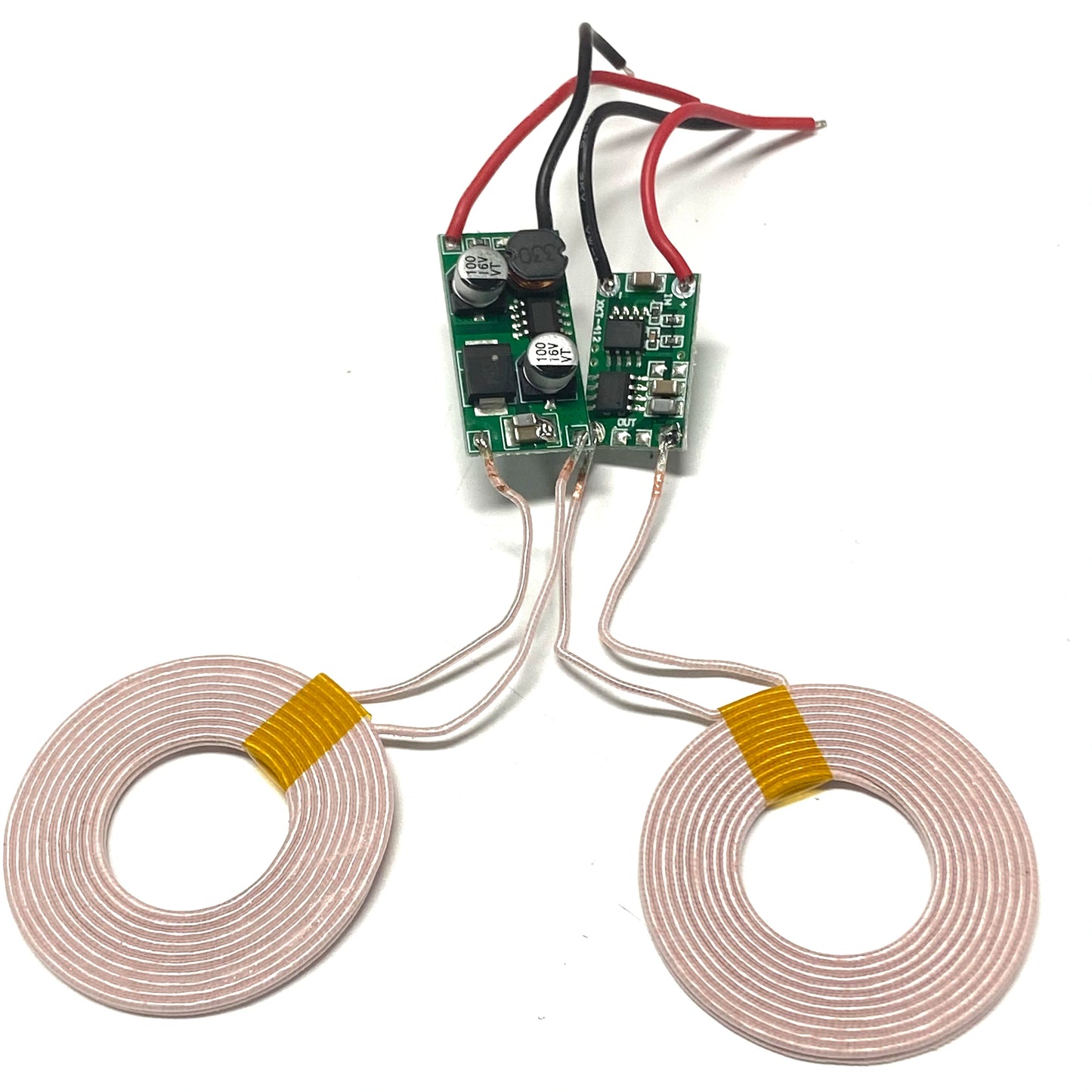

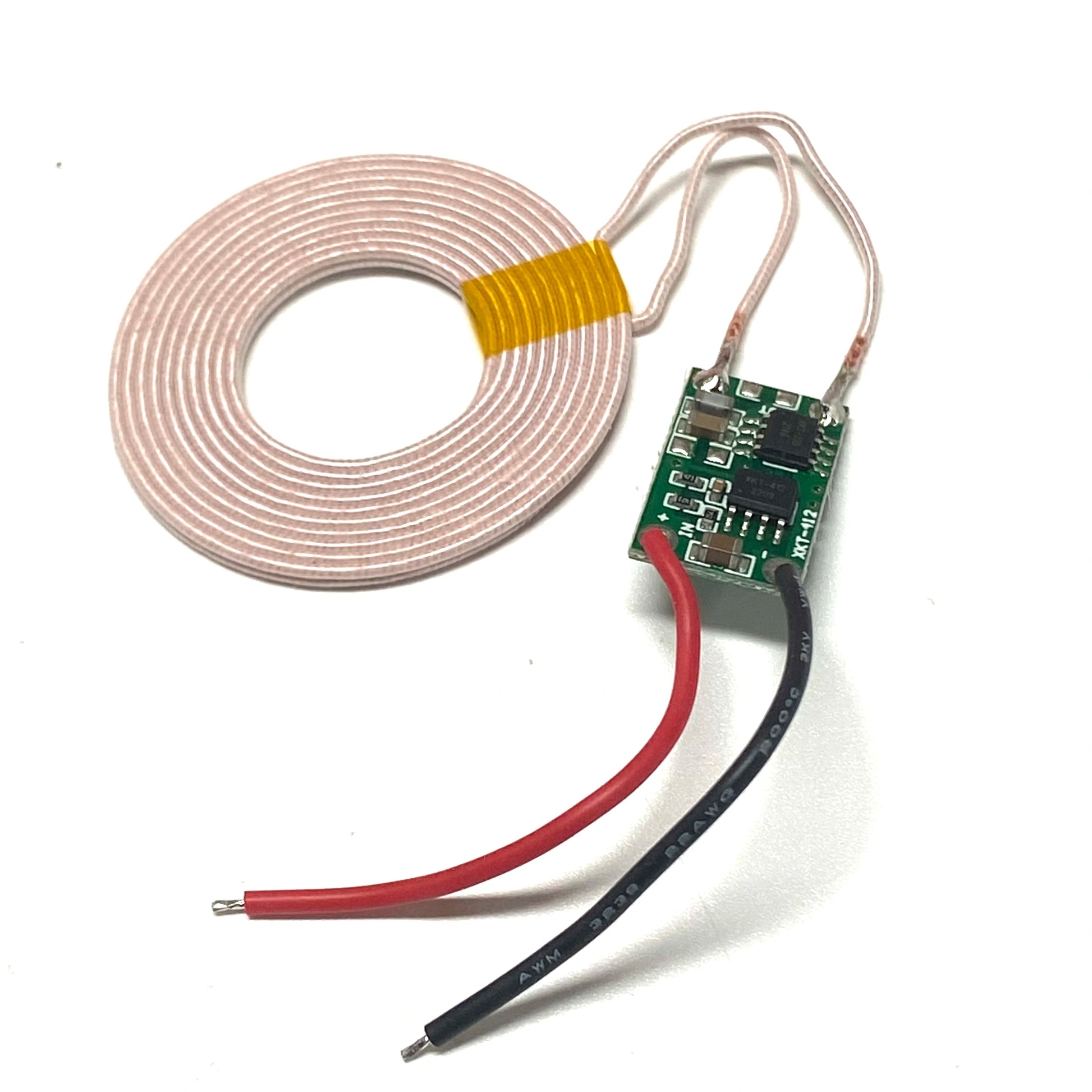

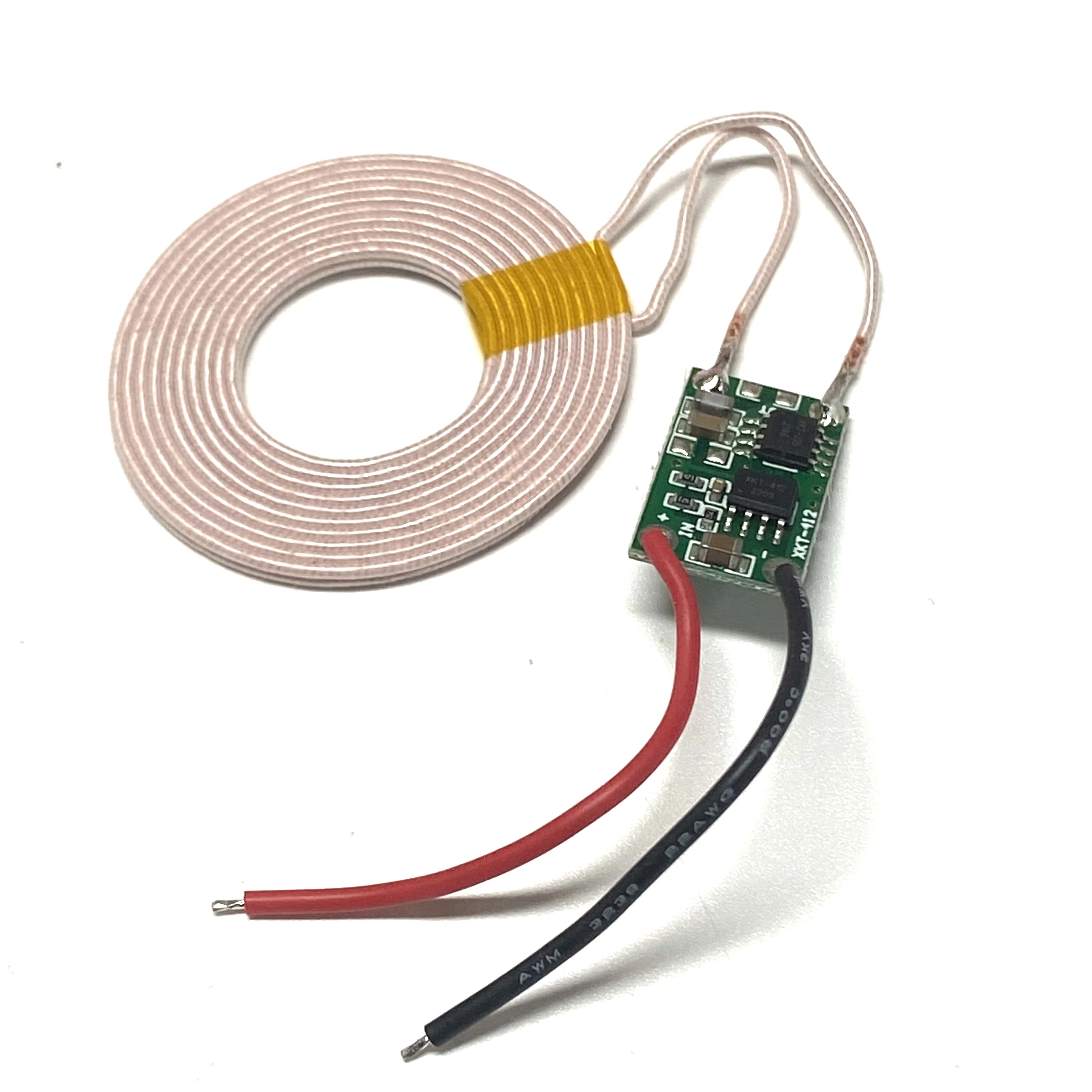

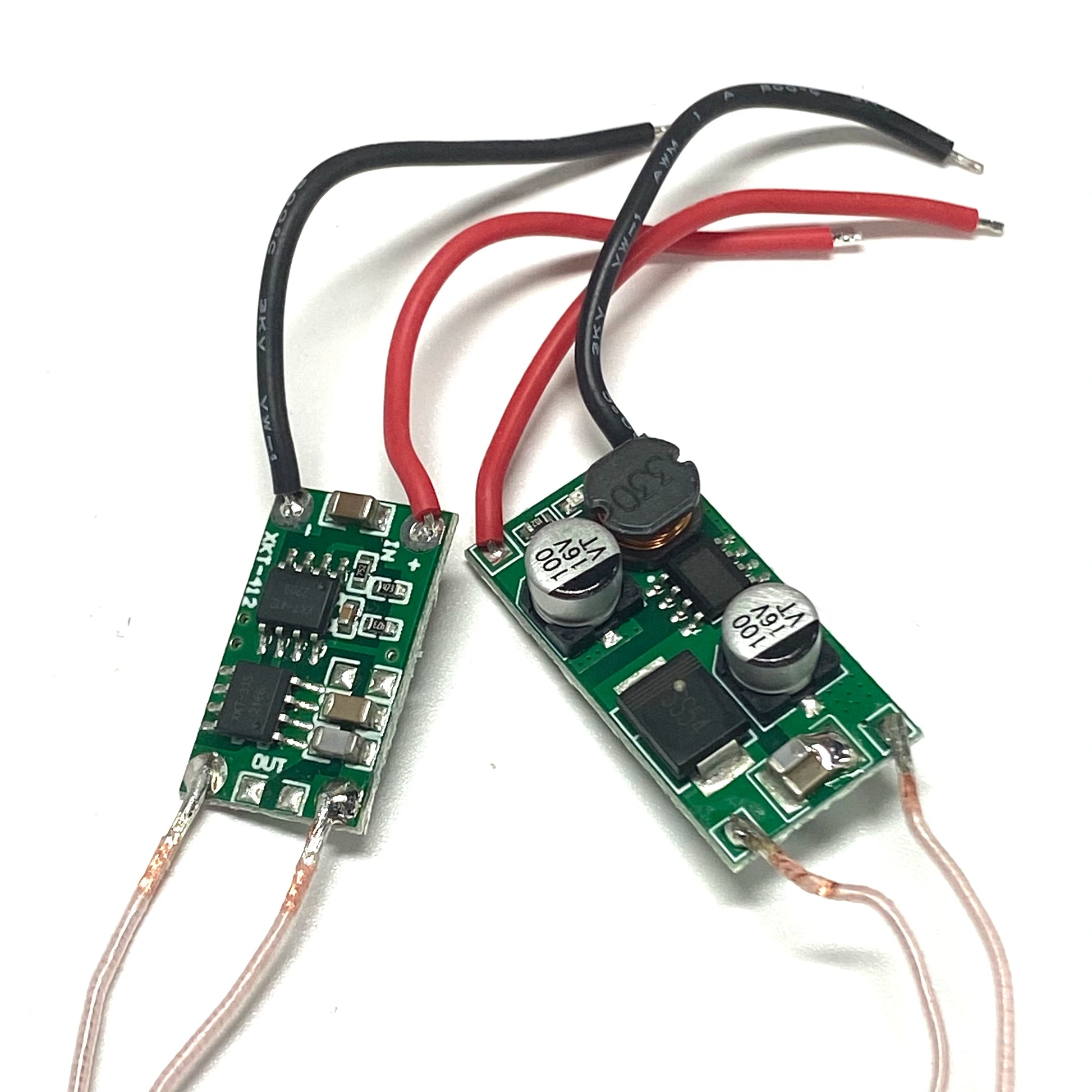

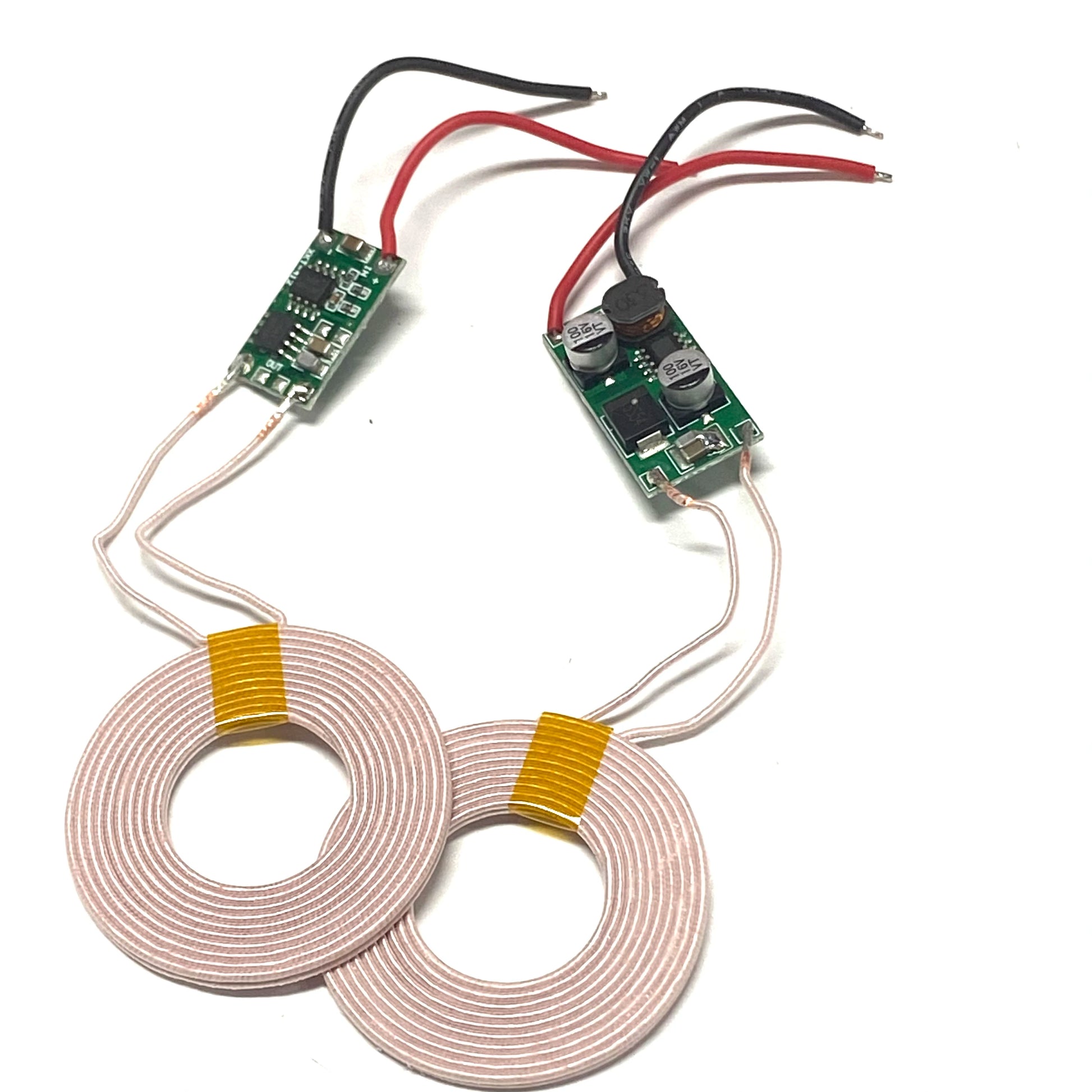

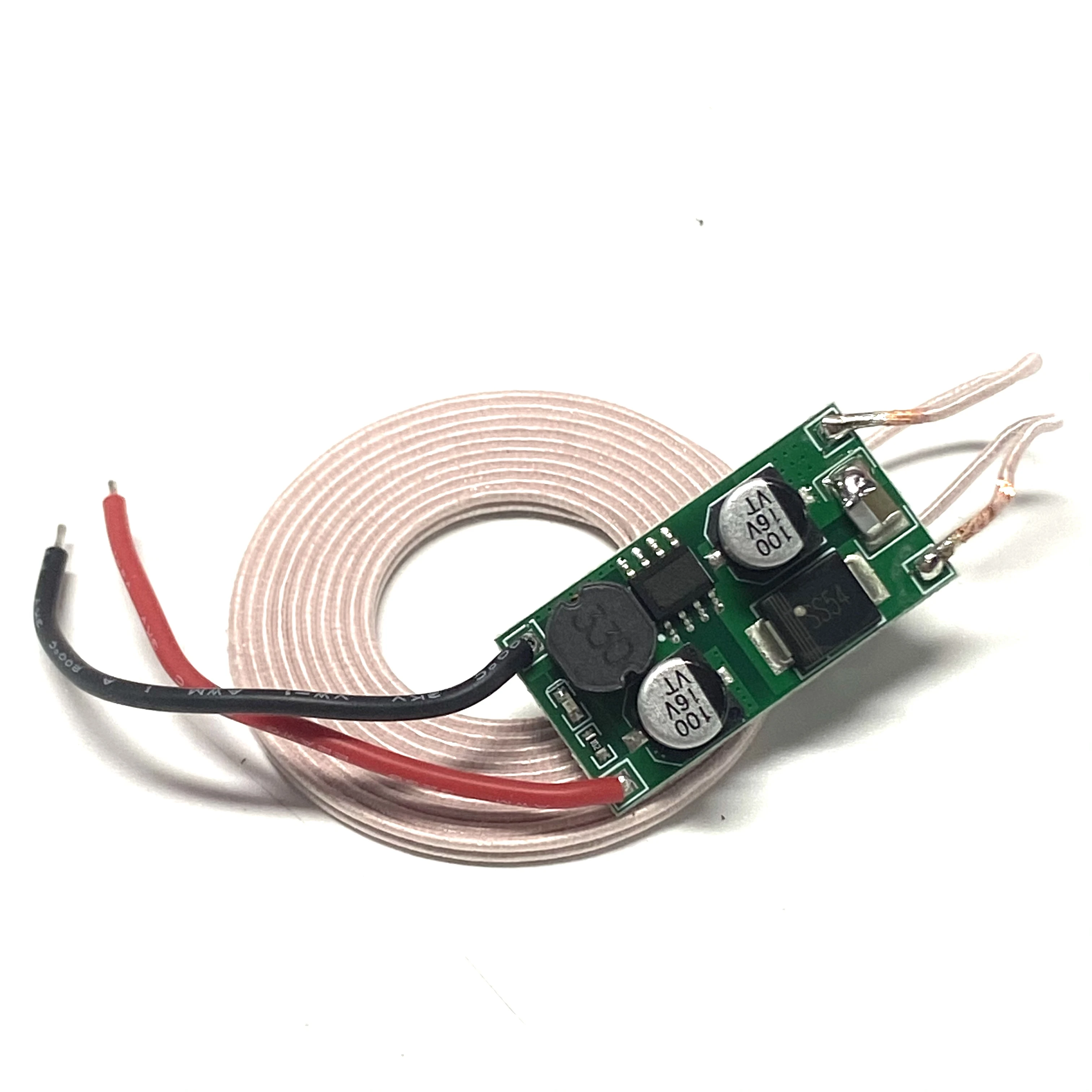

5V2A wireless charging module

---- instructions for use

This product is designed for the wireless charging and power supply development of various series of small electronic products, with a tiny size, extremely easy to use, high efficiency, low price. Mainly applicable to mobile electronic products such as: cell phones, game consoles, fish tanks, MP3, MP4, adult products, digital cameras, electric razors, learning machines, medical, underwater supplies and many other product applications; due to the use of contactless charging power supply, can make the product completely sealed, waterproof and dustproof; increase the service life of the product, more convenient to use

Module main parameters.

Input voltage: 9~12V

Load current: 1.3A

Receiving output voltage and current: 5V/2A,12V/700mA

Transmitting coil size: 43mm outer diameter, 2.3mm thickness

Transmitter module size:18mm*8.5mm*15mm

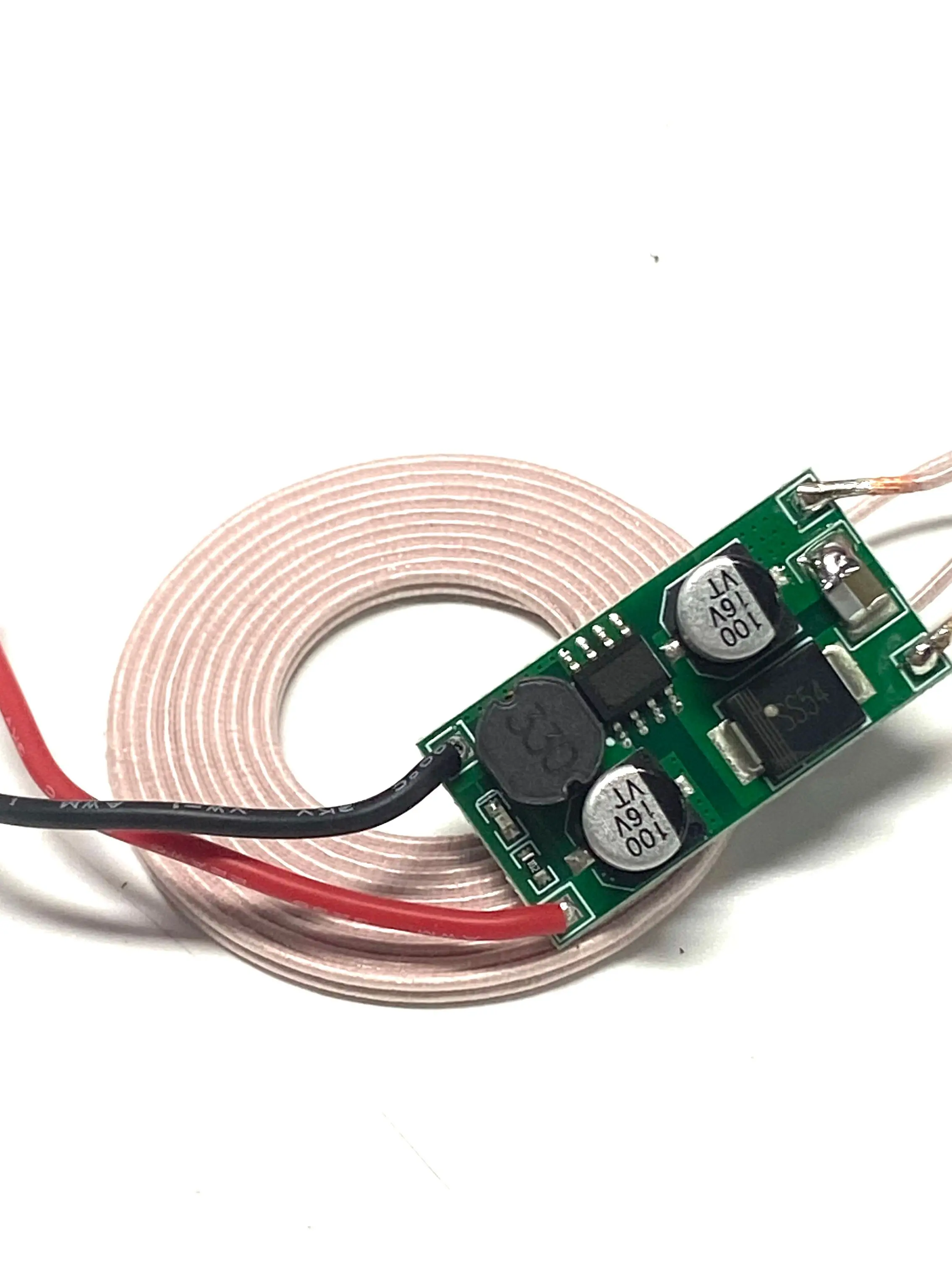

Receiver module size:10mm*25mm*3mm

Receiving coil size:43mm outer diameter, 1.2mm thickness

Receiving good distance:3~6mm

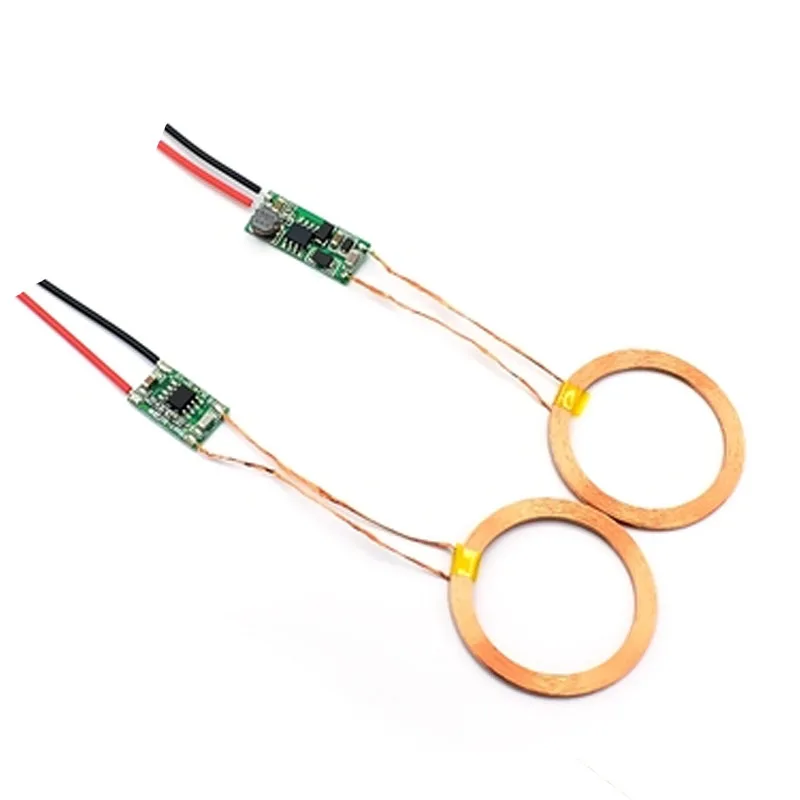

5V1A wireless charging module

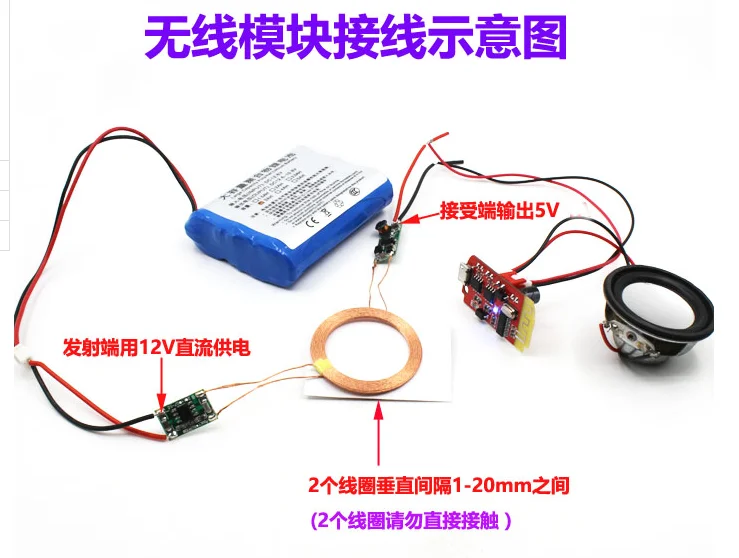

Special Note: Before use, please clearly divide the transmitter and receiver as indicated in the diagram Do not reverse the wiring, two coils do not directly contact the distance between 1-20mm. 12V battery can not be used directly to power the battery nominal voltage of 12V, the normal full output can reach 12.8 ~ 13.5V, must add a voltage regulator module can be used. Wireless charging, the input must be greater than the output, if you want to output 10W, the input must be more than 10 * 1.30W, power to wireless charging, there is power consumption

---- instructions for use

This product is developed and designed for wireless charging and power supply of various series of small electronic products, with the characteristics of tiny size, extremely easy to use, high efficiency and low price. Mainly applicable to mobile electronic products such as: cell phones, game consoles, fish tanks, MP3, MP4, adult products, digital cameras, electric razors, learning machines, medical, underwater supplies and many other product applications; due to the use of contactless charging power supply, the product can be completely sealed, waterproof and dustproof; increase the service life of the product, more convenient to use

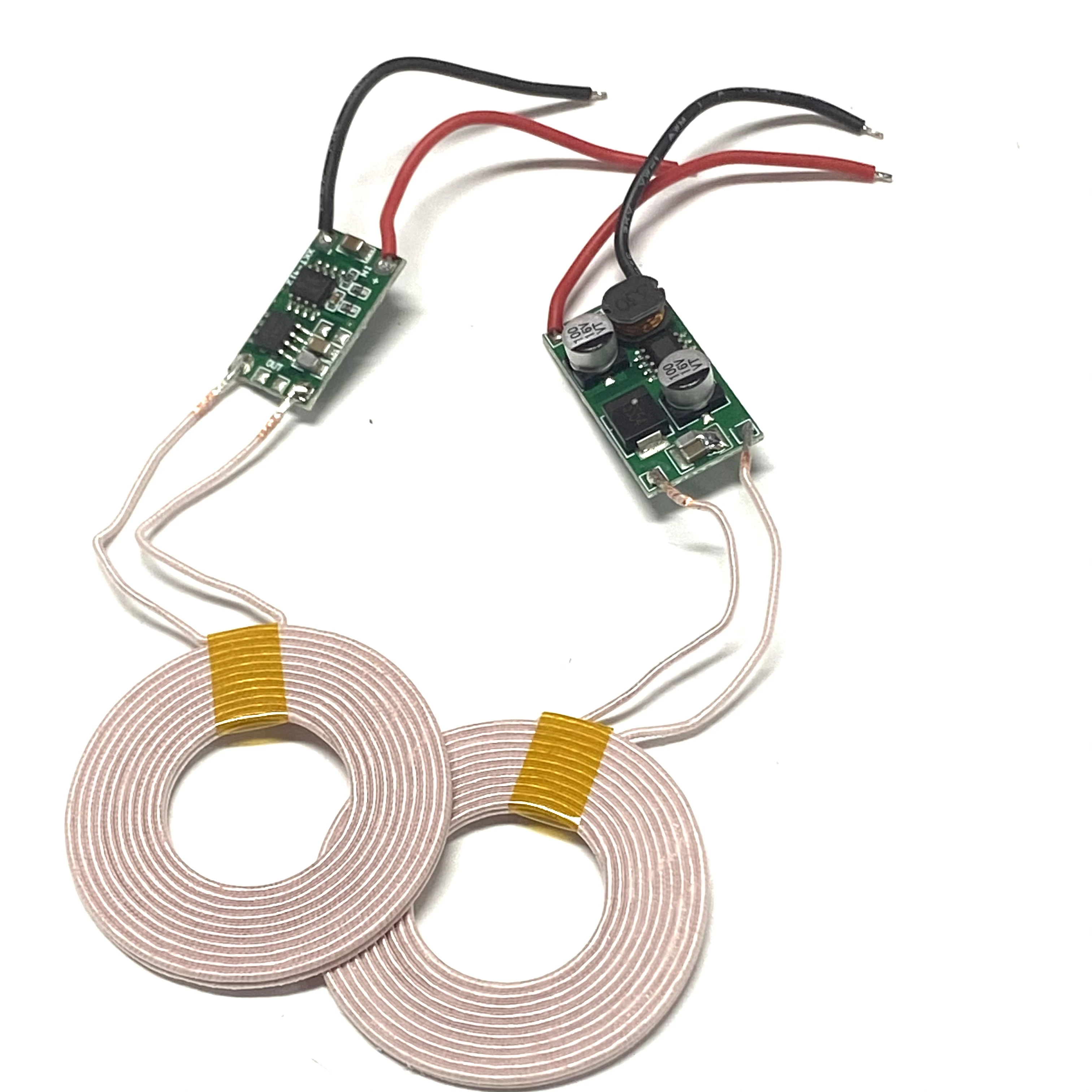

Transmitter module size: length 17mm width 11mm height 2.5mm

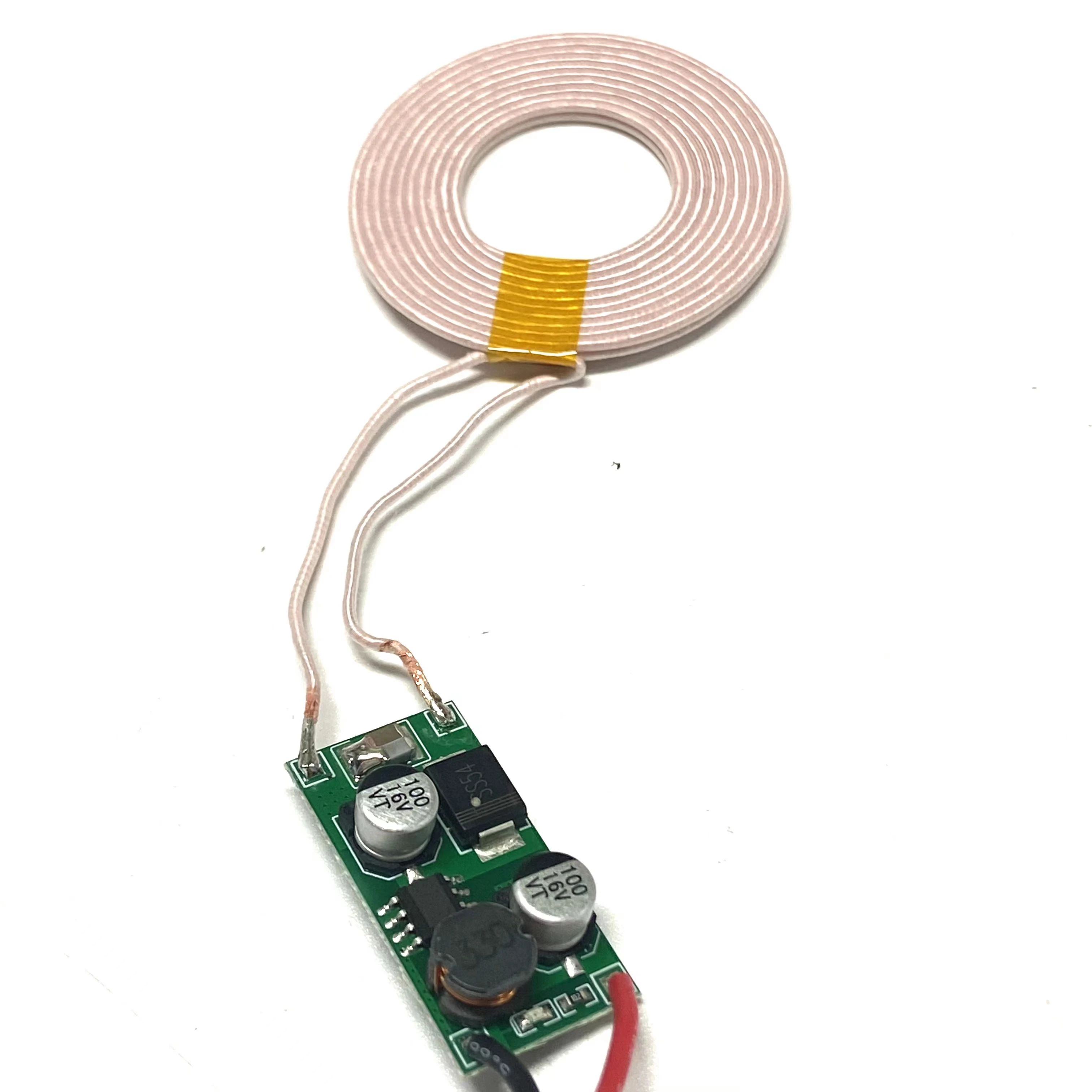

Receiver module size: 24mm long, 10mm wide and 5.5mm high

Transmitting and receiving coil size: 38mm outer diameter, 28mm inner diameter, 1.3mm thickness

Connection: 1 pin to the negative power supply; 2 pins to the positive power supply; 3 and 4 pins to the external transmitter coil

Transmitter module operating voltage: 5V~12V

Transmitter module operating current: automatically increase or decrease with the size of the receiving load current

Receiver module output current value:1A

Receiving and transmitting action distance: 1~20mm

If the small current work can appropriately increase the number of turns of the receiving coil to increase the transmission distance

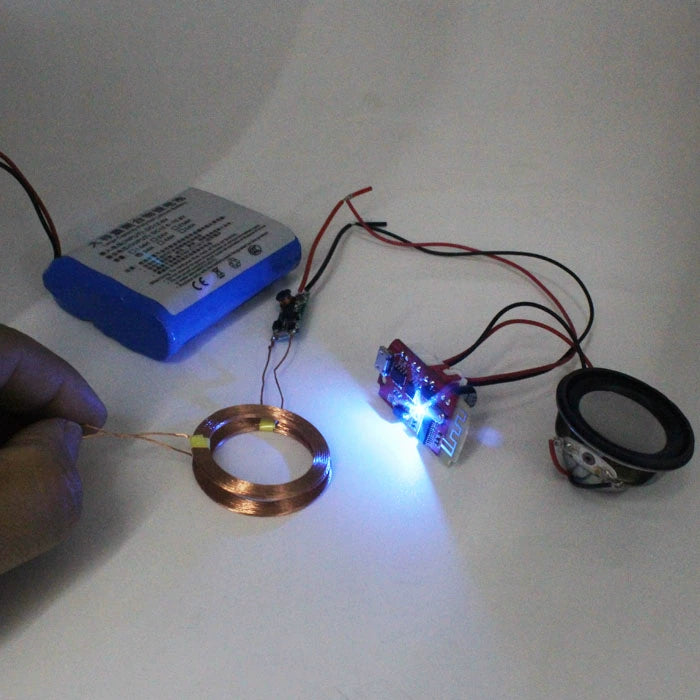

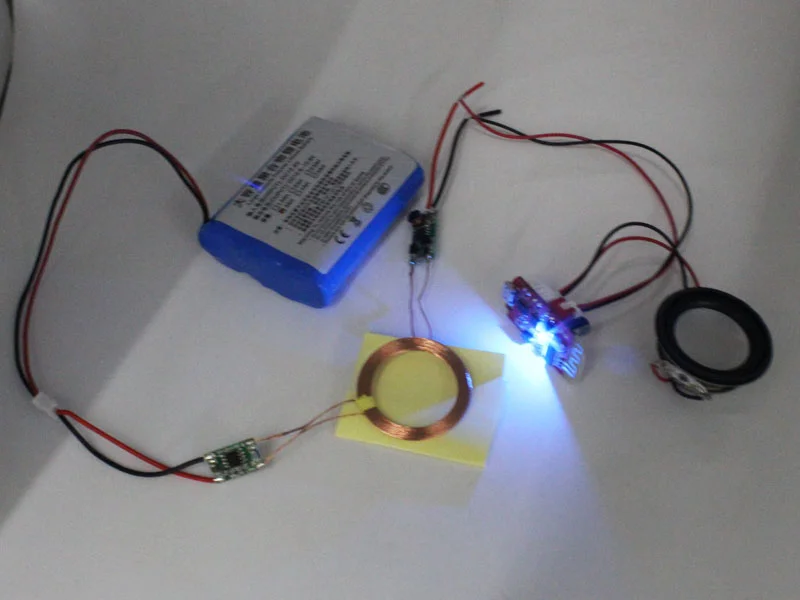

Usage: Access the DC 5-12V power supply at the transmitting end, then connect the 2 coils close to each other between 1mm-20mm vertically, and connect the equipment that needs to be powered at the receiving end, such as LED lights, etc. The output value of the receiver side is 5V/1A.

Precautions for use

1. Do not reverse the positive and negative input power of the transmitter module

2. Do not short-circuit the output load line of the receiver module, positive and negative

3. Do not put a large area of metal near the coil

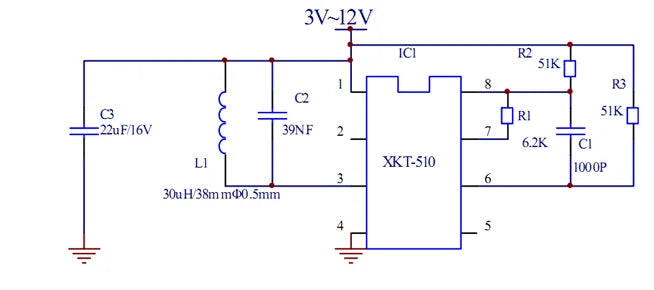

Typical application of the transmitter circuit 1

1, wireless power supply at least 1.3A above the output to have 1A

2, accept the current and the distance between the two coils are related, and the two coils must not touch together, otherwise it will burn the transmitter board.

3, the two coils have a certain direction, if the current is small, you can reverse one of the coils front and back
