SPECIFICATIONS

Application: Computer

Brand Name: EC Buying

Condition: New

Dissipation Power: low

High-concerned chemical: None

Operating Temperature: normal

Origin: Mainland China

Package: Module

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Supply Voltage: 5V

Type: Voltage Regulator

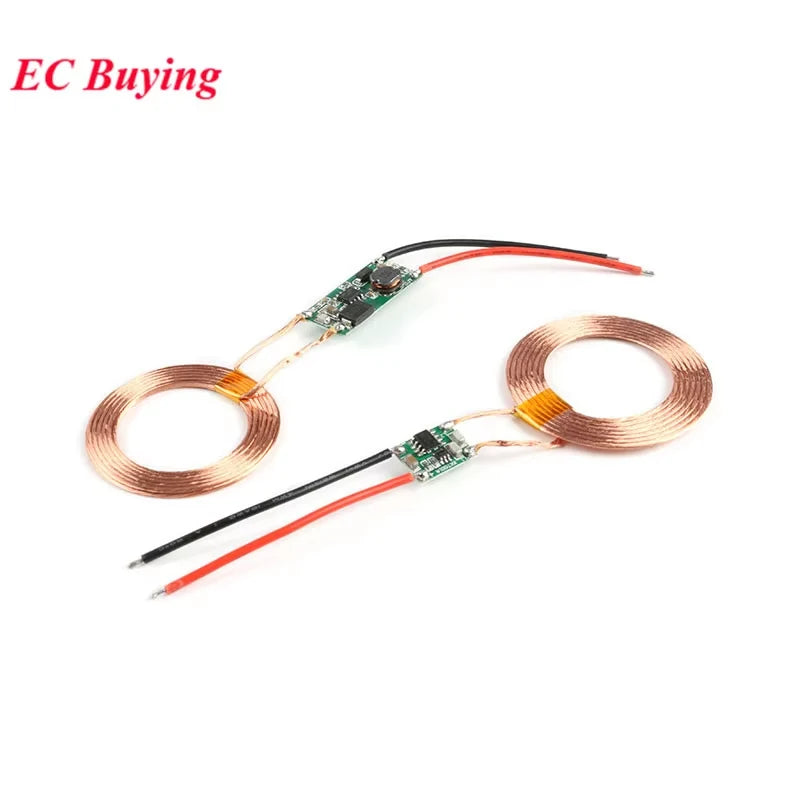

Wireless Charger Module: Charging Transmit Receiving Circuit Board

is_customized: Yes

Product parameters:

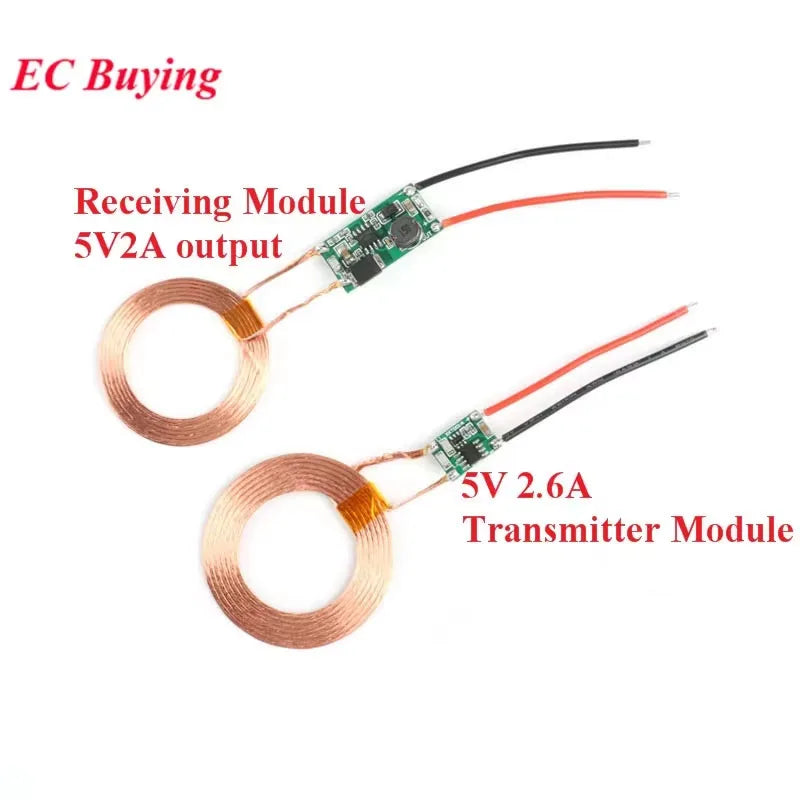

Transmitter module input voltage: 5 V

Transmitting current when receiving full load: 2.6A

Transmitting coil outer diameter: 48mm, inner diameter 30mm, thickness 0.9mm

Launch board size: length 16mm, width 12mm, thickness 2.5mm

Receiving coil outer diameter: 44mm, inner diameter 30mm, thickness 1.9mm

Receiving module: length 30mm, width 16mm, height 4.3mm

Output current: 5V 2A
