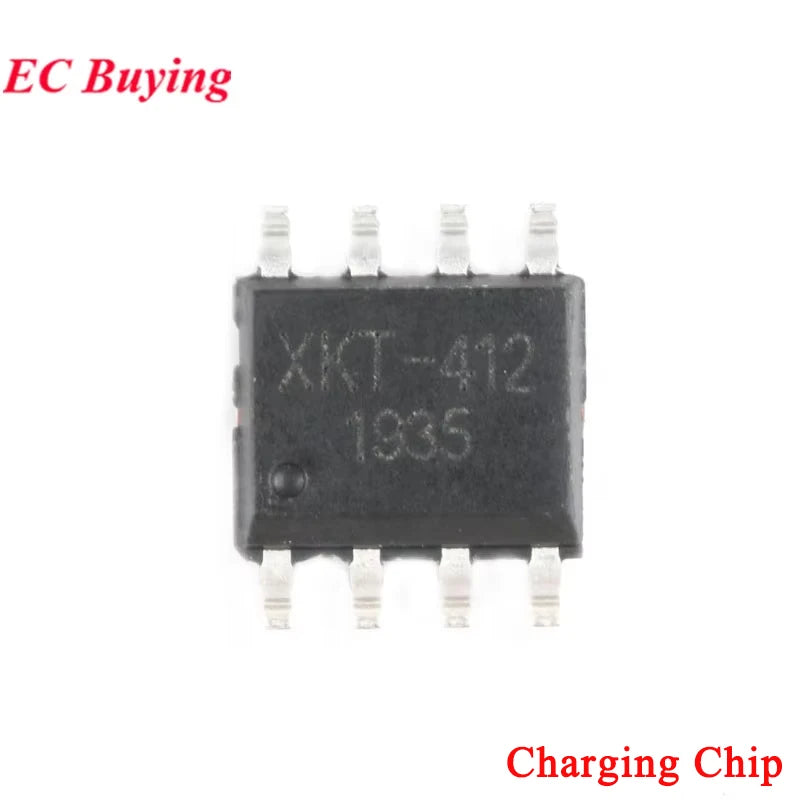

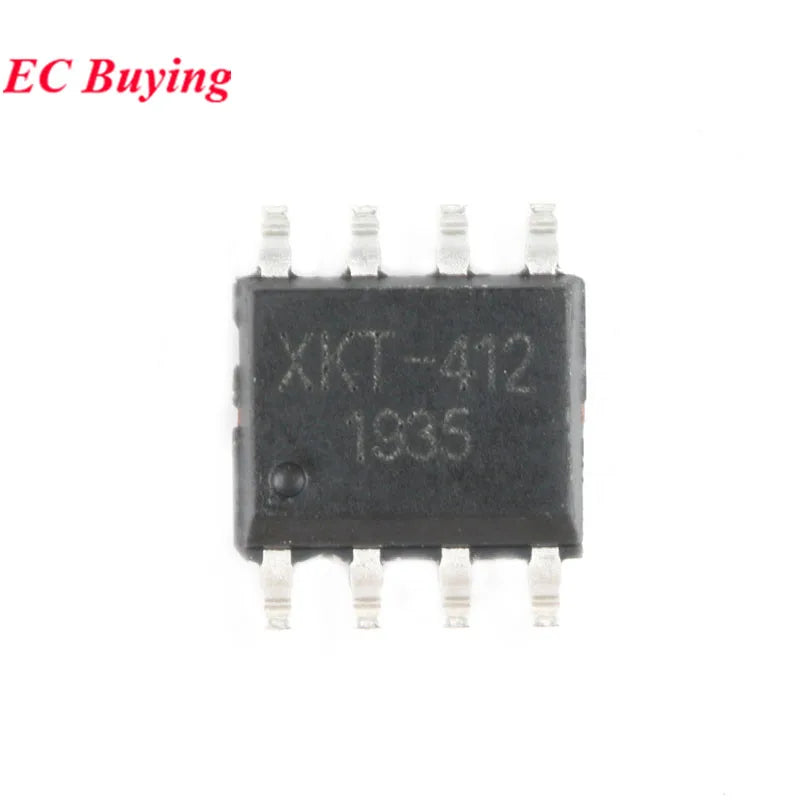

5V 1A/2A 12V/700mA Wireless Charger Power Supply Module Transmitter Receiver Terminal Circuit Board Charging DIY Phone XKT-412

5V 1A/2A 12V/700mA Wireless Charger Power Supply Module Transmitter Receiver Terminal Circuit Board Charging DIY Phone XKT-412

$5.38 USD
$0.00 USD $5.38 USD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

5V 1A/2A Wireless Power Supply Module Wireless Charger Module: Transmitter Receiver Terminal Circuit Board Module for DIY Phone

Application: Computer

Brand Name: EC Buying

Condition: New

Dissipation Power: low

High-concerned chemical: None

Operating Temperature: normal

Origin: Mainland China

Package: Module

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Supply Voltage: 5V/1000mA 5V/2A 12V/700mA

Type: Voltage Regulator

Wifi Wireless Charger Module 5V 1A/2A: Power Supply Transmitter Receiver Board DIY

Wireless Charger Module: Charging Transmit Receiving Circuit Board

is_customized: Yes

Features:

*Automatically adapt to the supply voltage adjustment function

Enables it to work under a wider voltage range

*Automatic frequency locking

*Automatic negative load detection

*Automatic power control

*Intelligent detection system, no debugging

*Working voltage: DC 5~12V

*Working frequency: 0~2MHZ

*Integrated, requires only a few common peripheral components

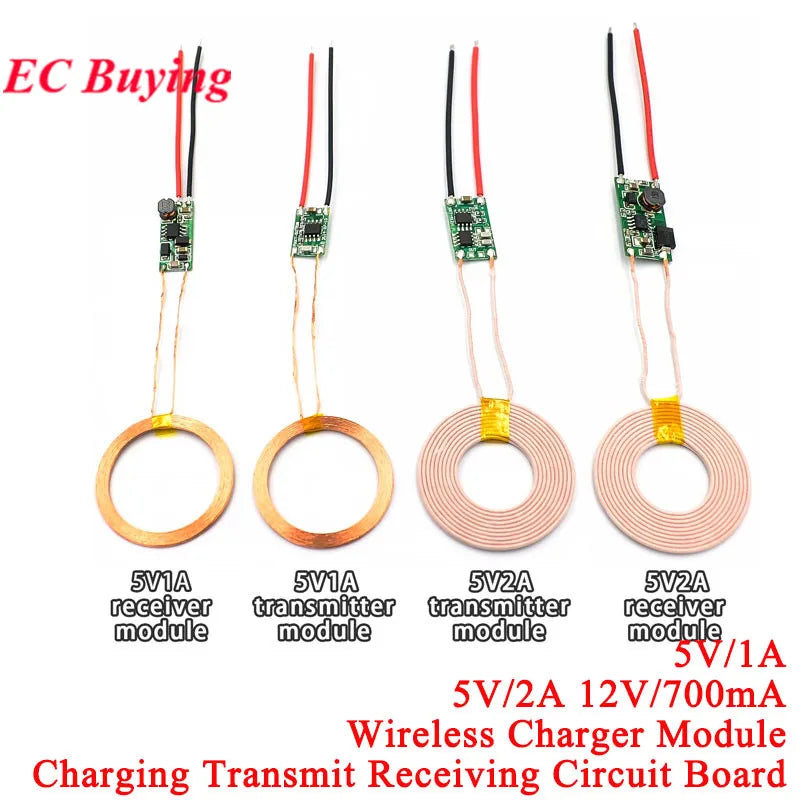

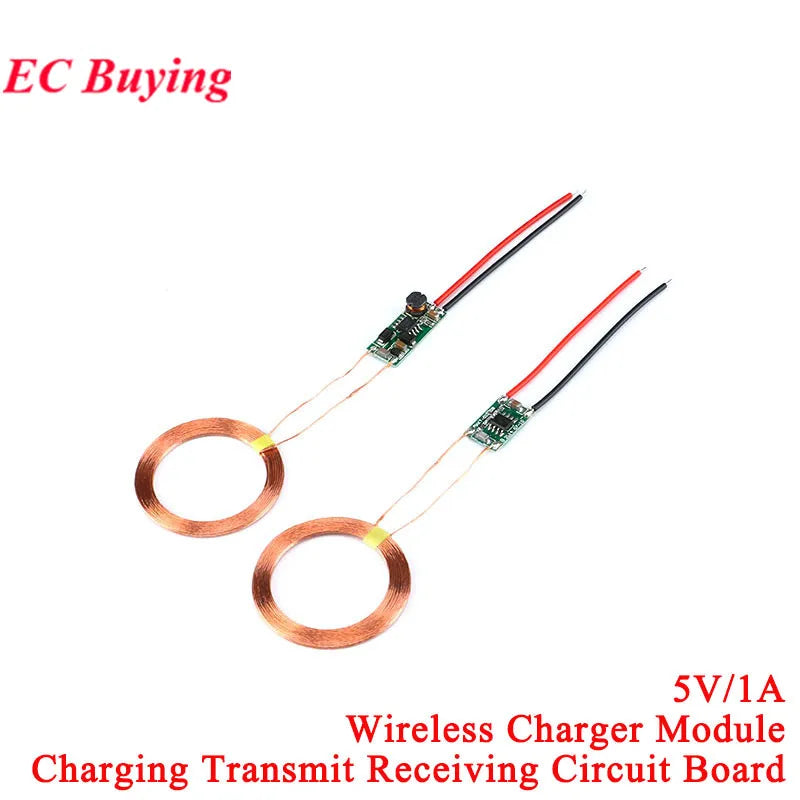

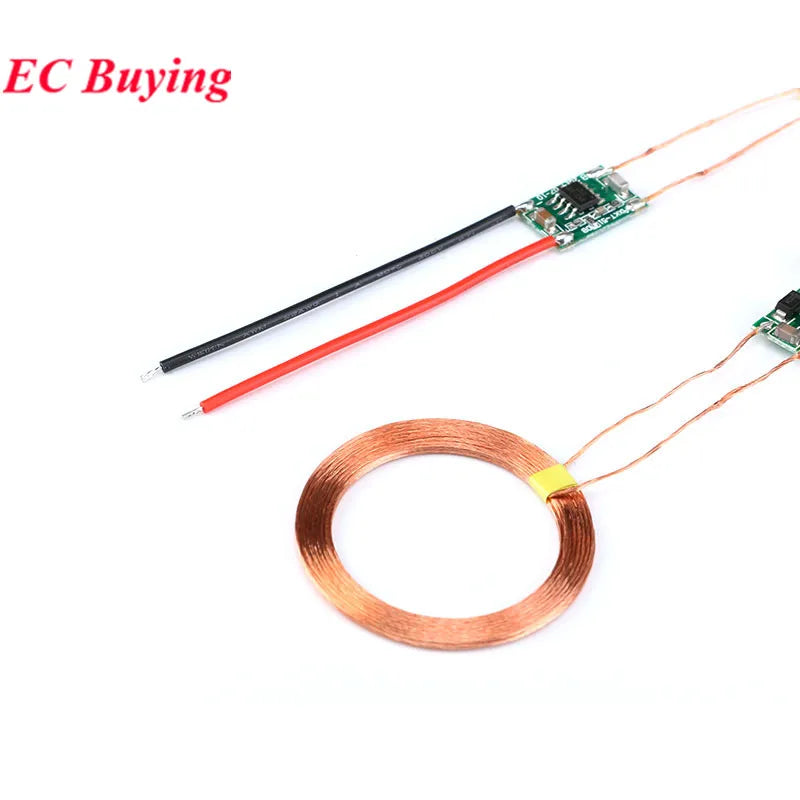

5V 1A Wireless Charger Module:

         This product is designed for wireless charging and power supply development of various series of small electronic products. It has the characteristics of small size, easy to use, high efficiency and low price. It is mainly suitable for mobile electronic products such as mobile phones and game consoles. , fish tank, MP3, MP4, adult products, digital cameras, electric razors, learning machines, medical, underwater supplies and other products; due to the use of contactless charging power supply, the product can be completely sealed, waterproof and dustproof; Increase product life and ease of use.

Module Main Parameters:

  • Transmitter module size: length 17mm width 11mm height 2.5mm

  • Receiver module size: length 24mm width 10mm height 5.5mm

  • Transmitting and receiving coil size: outer diameter 38mm inner diameter 28mm thickness 1.3mm

  • Connection method: 1 pin connected to the negative pole of the power supply; 2 feet connected to the positive pole of the power supply; 3 and 4 feet connected to the external transmitting coil

  • Transmitter module working voltage: 5V~12V

  • Transmitter module operating current: automatically increase or decrease with the receiving load current

  • Maximum output current of the receiving module: 1A

  • Transmitting distance: 1~20mm

  • If the small current works, the number of receiving coil turns can be increased to increase the transmission distance.

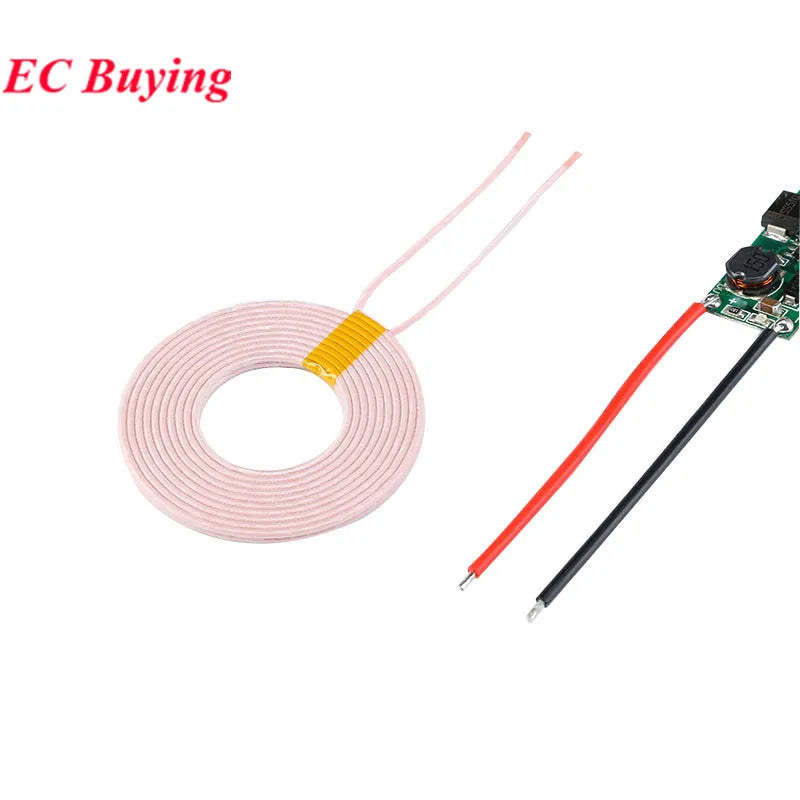

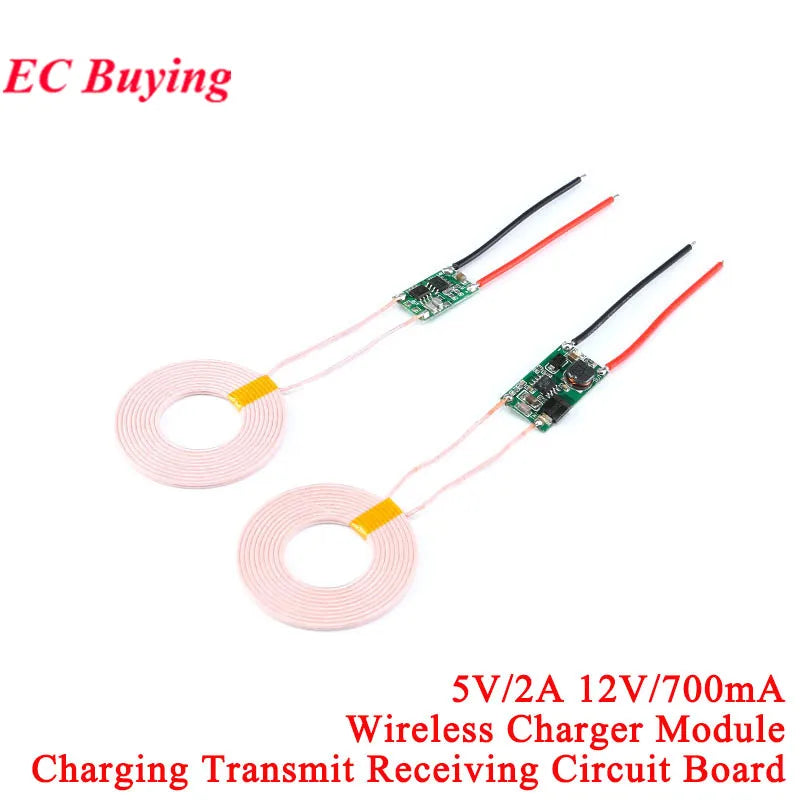

5V 2A Wireless Charger Module:

         This product is designed for wireless charging and power supply development of various series of small electronic products. It has the characteristics of small size, easy to use, high efficiency and low price. It is mainly suitable for mobile electronic products such as mobile phones and game consoles. , fish tank, MP3, MP4, adult products, digital cameras, electric razors, learning machines, medical, underwater supplies and other products; due to the use of contactless charging power supply, the product can be completely sealed, waterproof and dustproof; Increase product life and ease of use.

Module Main Parameters:

  • Input voltage: 9~12V

  • Large load current: 1.1A

  • Receive output voltage and current: 5V/2A, 12V/700mA It is better to work at about 1.5A for a long time

  • Transmitting coil size: outer diameter 43mm, thickness 2.3mm

  • Transmitter module size: 18mm*8.5mm*15mm

  • Receiver module size: 10mm*25mm*3mm

  • Receiver coil size: outer diameter 43mm, thickness 1.2mm

  • Receive common distance: 3~6mm
