SPECIFICATIONS

Brand Name: kebidu

Channel: 1

Choice: yes

Frequency: 433 MHz

High-concerned chemical: None

Model Number: RF Wireless Socket Remote Control for Lamp Fan

Origin: Mainland China

Package: No

Support APP: No

Use: Universal,Lighting,Electric Door,Automated curtains,Switch

Wireless Communication: RF

Relay Receiver Board Parameter

Working Voltage : AC 85~265V

Max current : 15A

Load Current : 4000W

Remote Control Battery : 2*CR2016(Include)

RF frequency : 433MHz

Working temperature : -30~+80 Celsius

Receiving Sensitivity : >97dbm

Amount of storage remote controls : 25 pieces

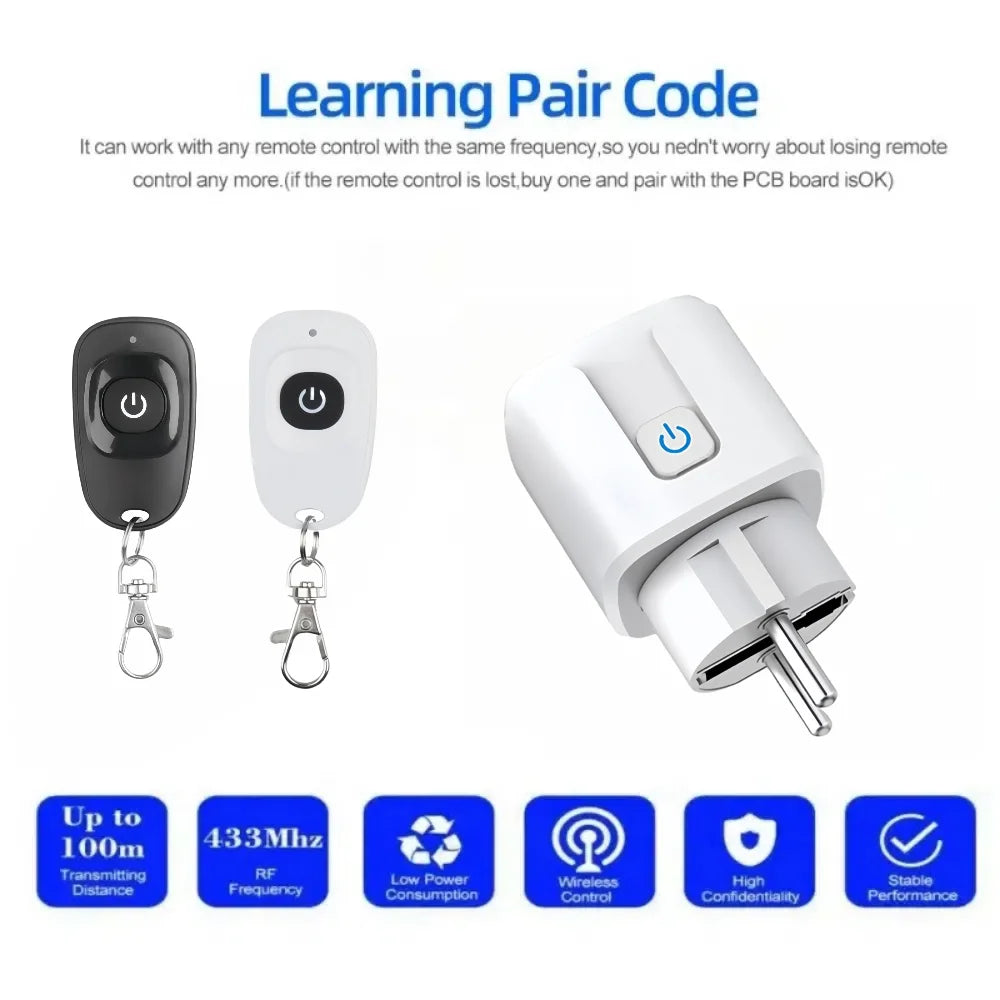

Support encoding :1527 Leaning code /2262 fixed code

RF Operating mode : ASK superheterodyne wireless reception

Receiving range : Open space is more than 50 meters

Remote operating mode : Toggle Mode/Latched Mode

Use: Press *ON* button -> The Home Appliances OR Light will turn ON;

Press *OFF* button ->The Home Appliances OR Light will turn OFF.

Setting: 1.According to the picture above, Press and hold the learning button until the indicator flashing twice .

2.Press the *ON* button, the indicator flashing twice.

3.Press the *OFF* button, the indicator flashing twice.

4.Success

How to clear the signal

Only one step :Press and hold the learning button until the indicator flashing8 Times(about 7 seconds ).

Remote control your home appliances Make your life easier

Remote control multiple sockets through different buttons

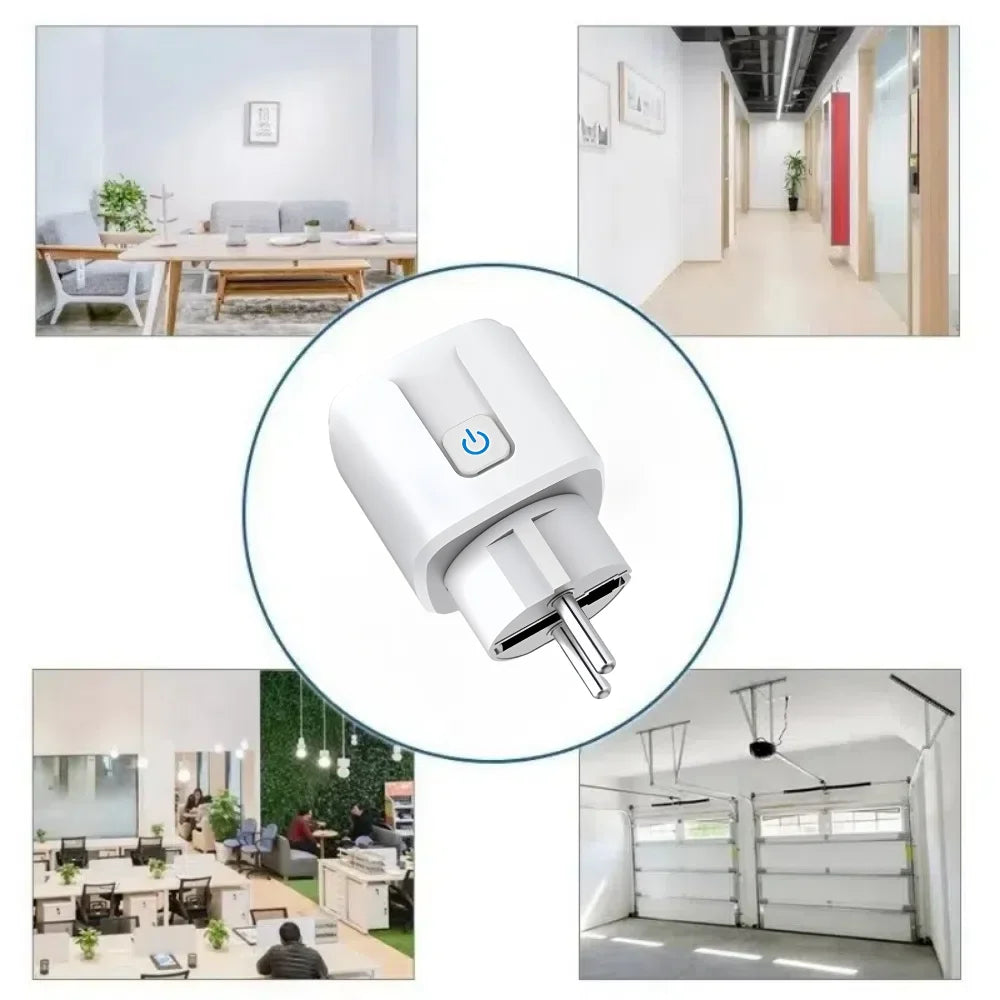

Multi Purpose Remote Control Socket

Suitable for EU and FR Used in various electrical equipment

Easy to use Just plug it into the socket to use
