SPECIFICATIONS

Brand Name: kebidumei

Channel: 1

Choice: yes

Features 1: 220V receiver and transmitter kit

Features 2: AC 110V 220V remote control relay

Features 3: receiver and 2ch transmitter kit

Features 4: rf remote control wireless kit

Features 5: receiver and 2ch transmitter home

Features 6: relay receiver module 433 mhz

Features 7: rf relay switch

Features 8: kit for intelligent home receiver

Features 9: remote control switch 433mhz

Frequency: 433 MHz

High-concerned chemical: None

Model Number: RF Transmitter 433 Mhz Remote Control Switch

Origin: Mainland China

Package: No

Support APP: No

Use: Universal,Lighting,Electric Door,Automated curtains,Switch

Wireless Communication: RF

The relay controller is RF Receivers ,the wall switch is RF only. Wall switch itself cannot control lights on off. It needs to work with rf receiver together.

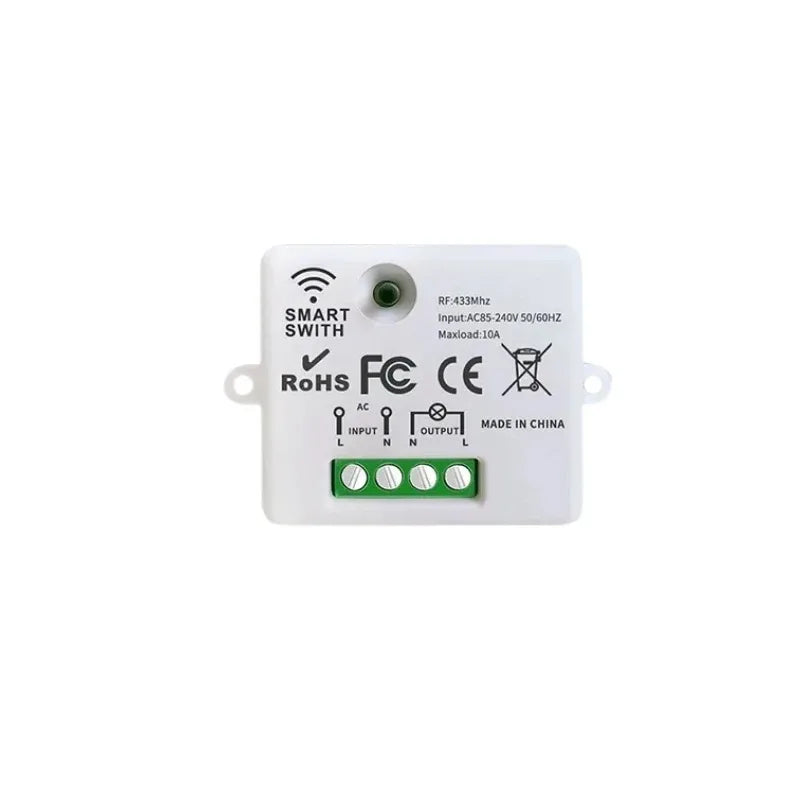

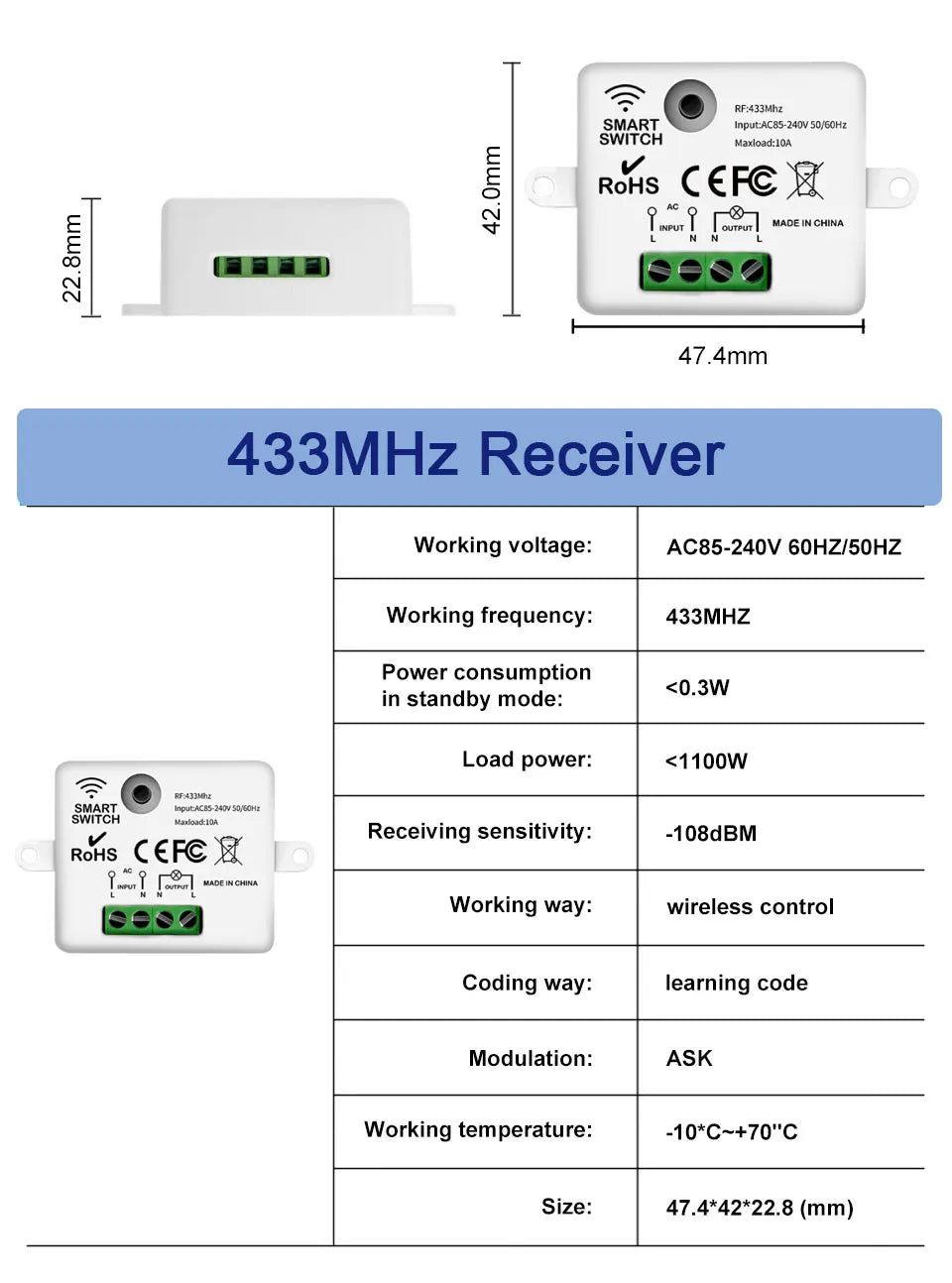

Relay Receiver Board Parameter

Working voltage : AC 85V~240V

Quiescent Current : <5MA

Max current : 10A

Max load: 2200W

Receiver Body Size : 47*42*27mm

Weight:35g

RF frequency : 433MHz

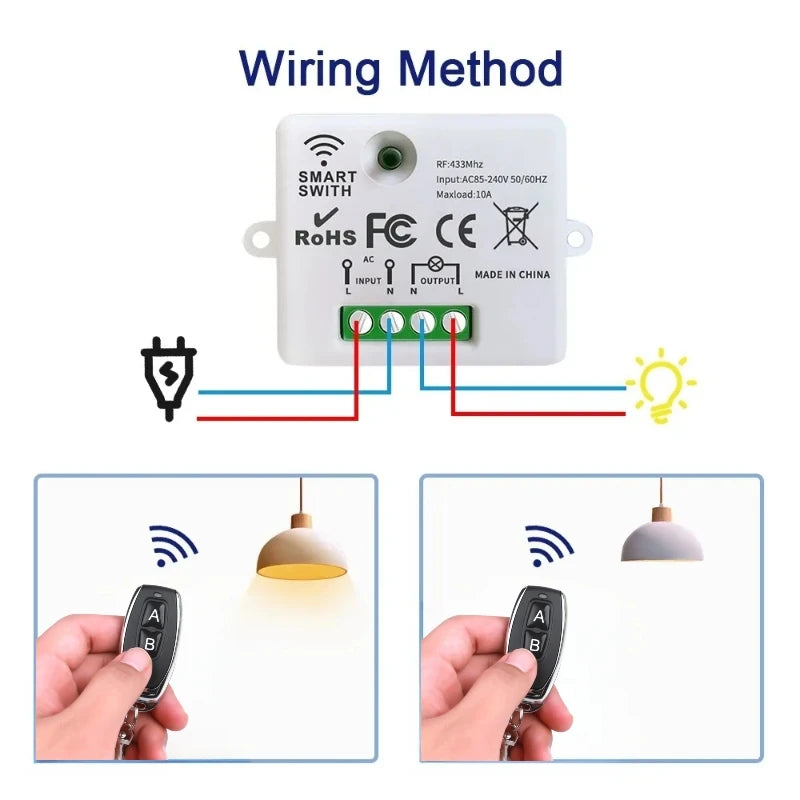

Pin : L \ N

Working temperature : -10~+70 Celsius

Receiving Sensitivity : >97dbm

Amount of storage remote controls : 20 pieces

Support encoding : EV1527 Leaning code

RF Operating mode : ASK superheterodyne wireless reception

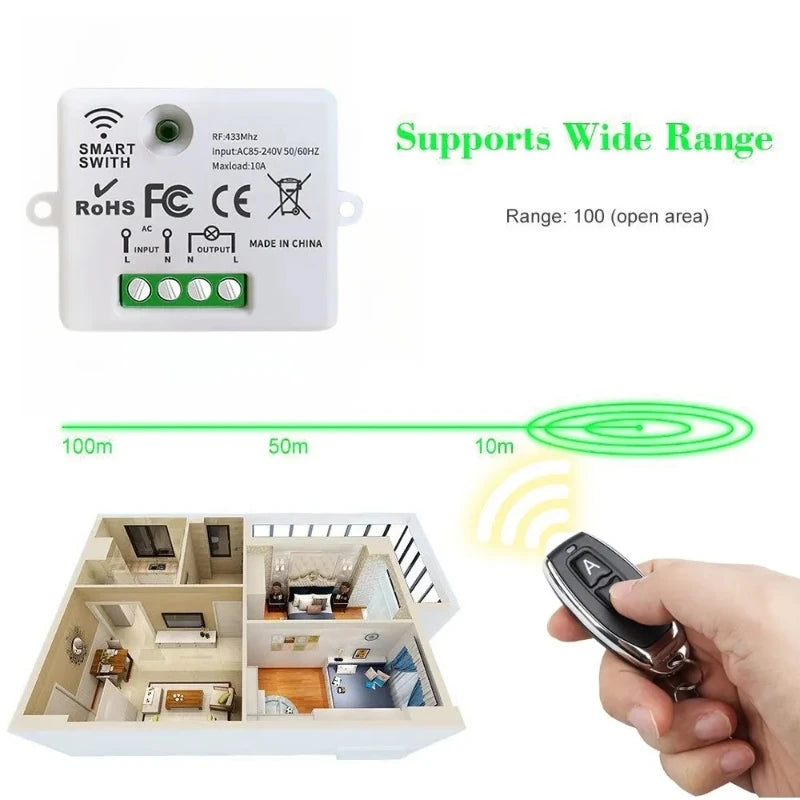

Receiving range : Open space is more than 100 meters

Remote operating mode : Toggle Mode / Latched Mode

strong signal and Long distance control

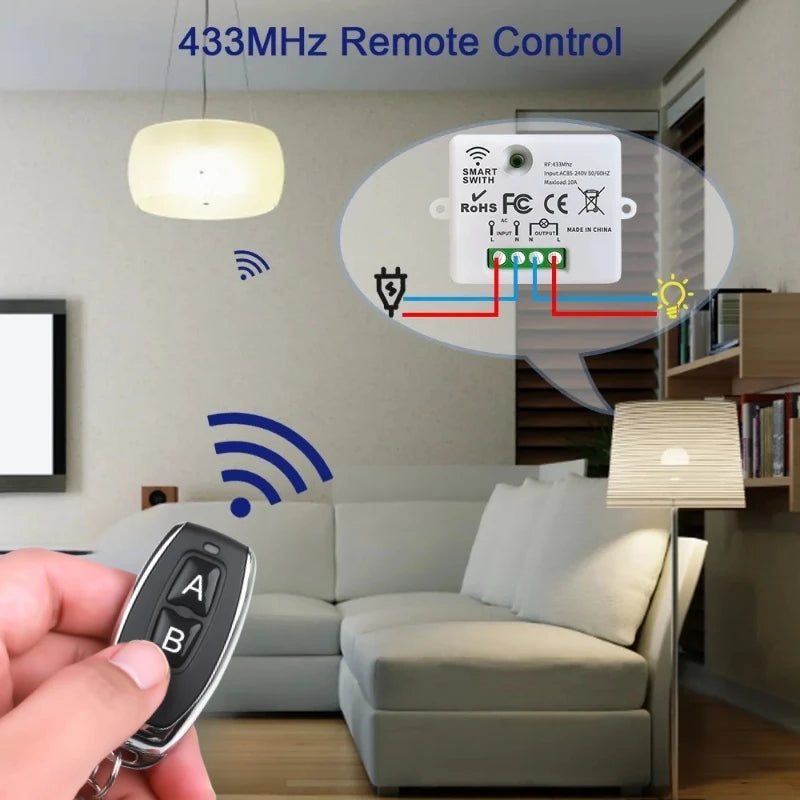

Control the light in the room, even outside the room, The receiver can be remotely controlled up to 100 meters through a wireless switch and the signal can be controlled through the wall

Wide range of application

Products can be used in homes, farms, factories, offices, laboratories, supermarkets, and so on

Remote control Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device\ Exhaust system, Kettle, water heaters \ Signal transmission \ Electrical equipment

\Factory Home Office Ventilation Pump LED Light

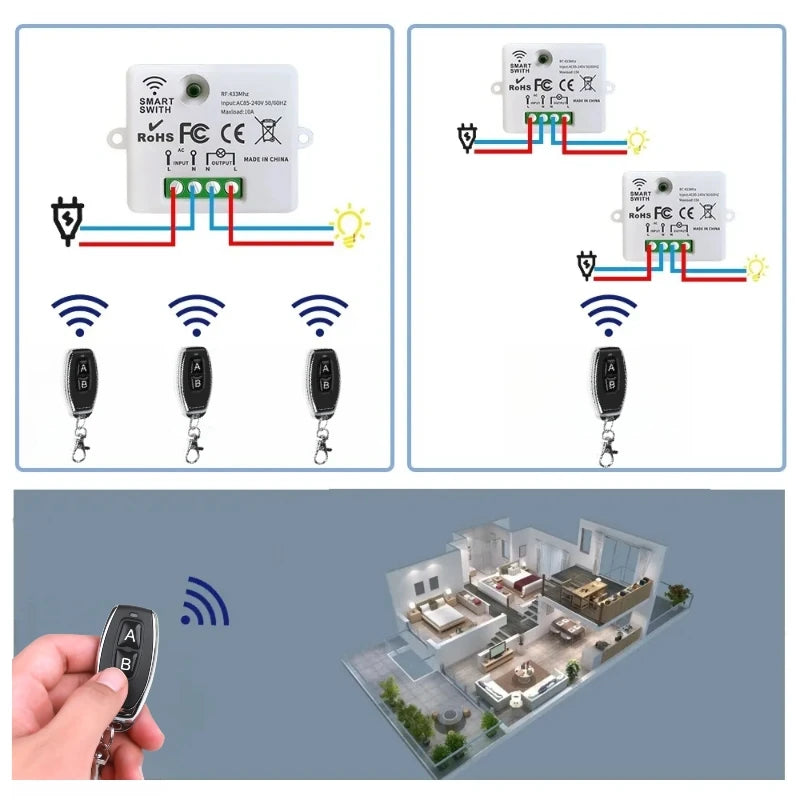

Smart Home, Feel free to use it together

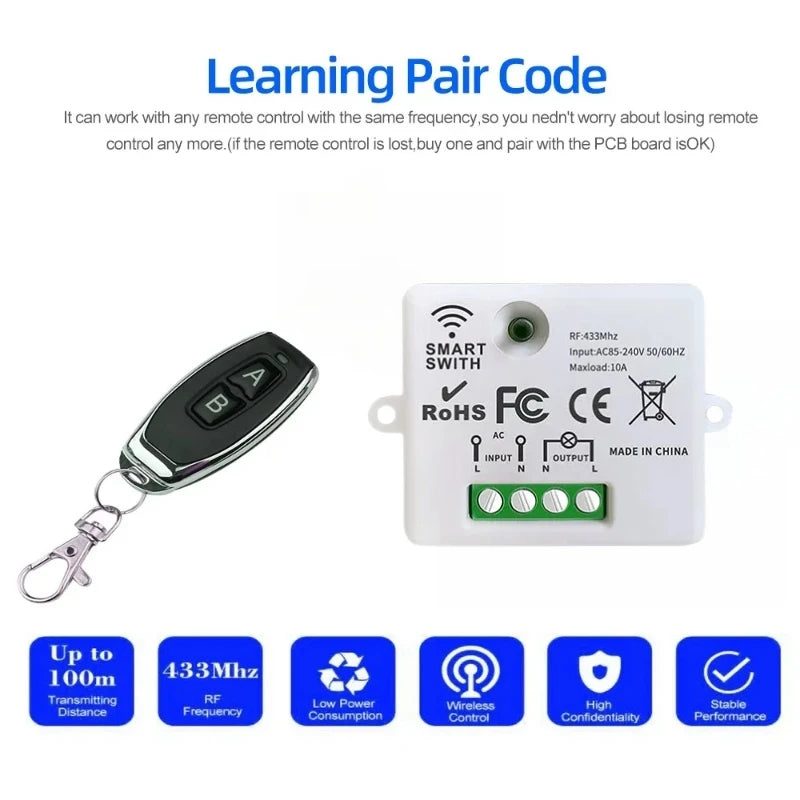

Learning Pair Code

it can work with any remote control with the same frequency, so you needn't worry about losing remote

control any more.(if the remote control is lost, buy one and pair with the PCB board is Ok )

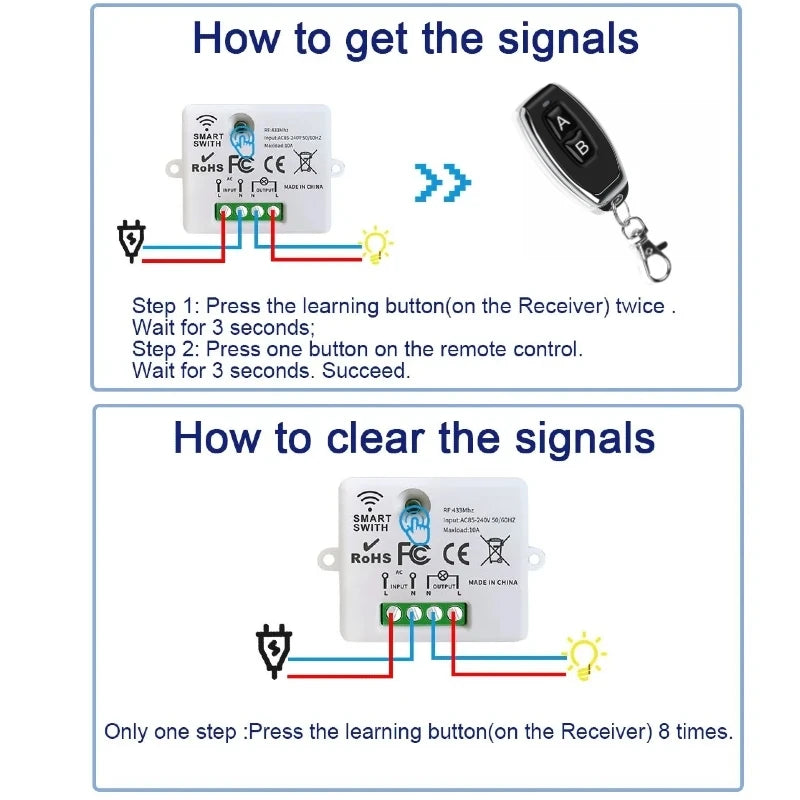

How to get the signal

Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;

Step 2: Press one button on the remote control or wall panel. Wait for 3 seconds. Succeed.

How to clear the signal

Only one step: Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;

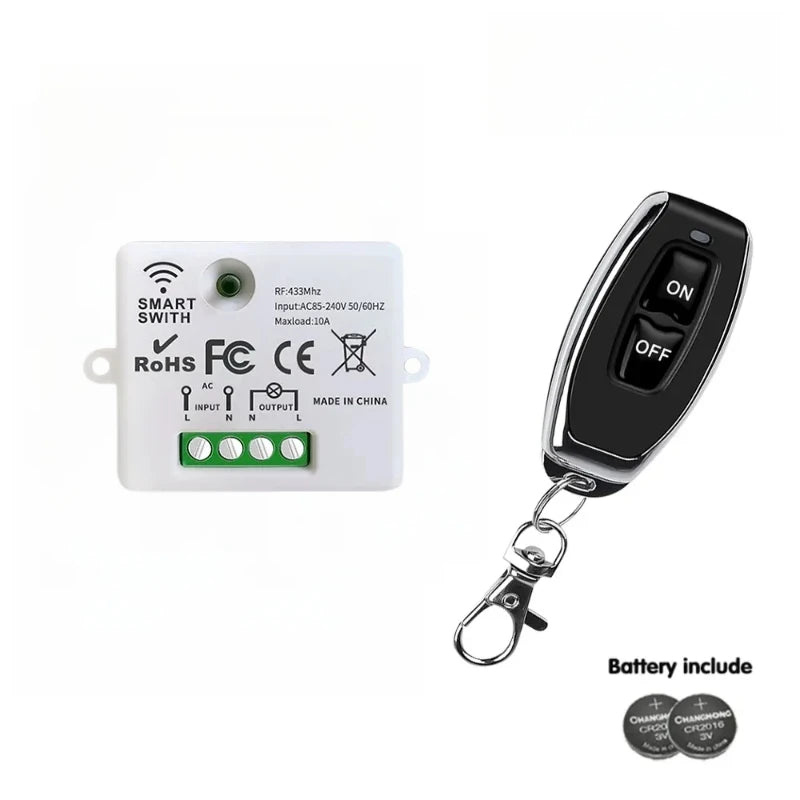

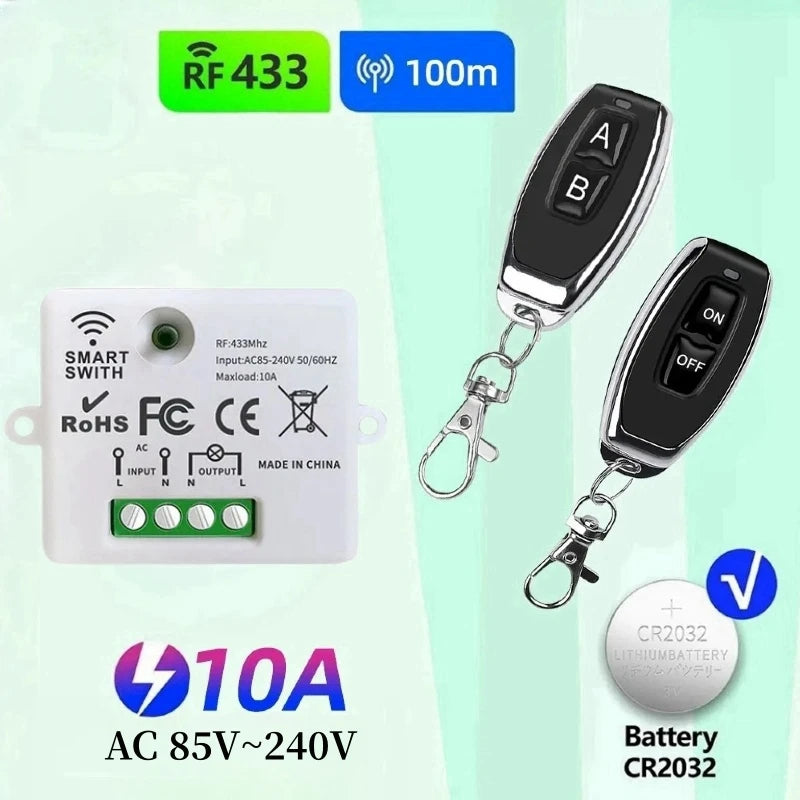

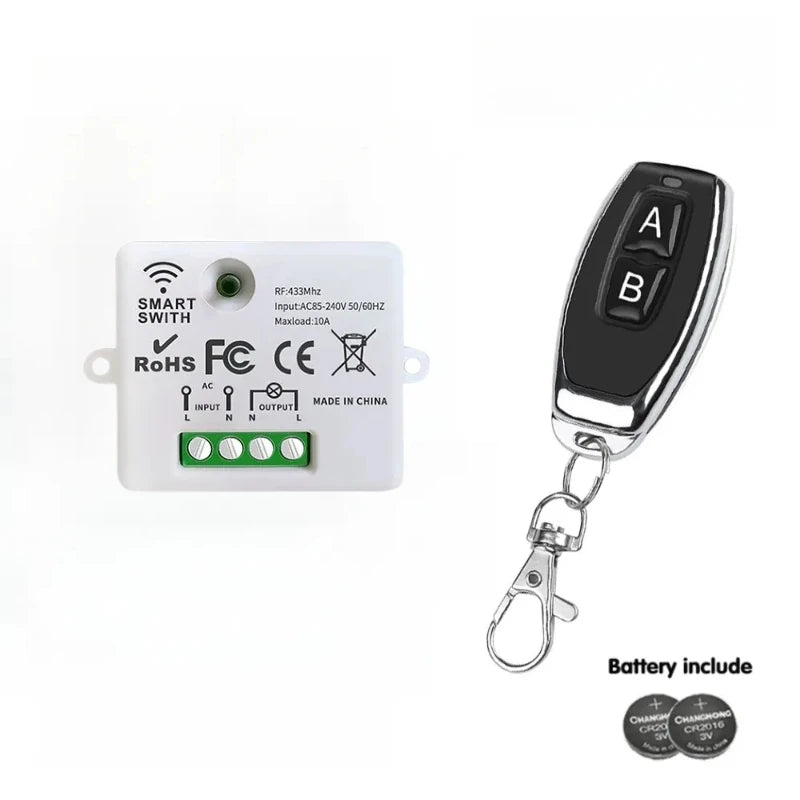

Package including

1*Remote Control+1*Receiver / Only 1*Receiver / Only 1*Remote Control

(It depends on the model you choose)
