SPECIFICATIONS

Base Type: None

Body Material: ABS

Brand Name: LTOON

Certification: ce,ROHS

High-concerned chemical: None

Installation Method: Assembly

Is Batteries Included: Yes

Is Bulbs Included: Yes

Is Dimmable: No

Item number: UFO solar wall lamp

Life: 30000

Light Source: LED bulbs

Light source type: LED

Machining customization: yes

Model: UFO solar wall lamp

Model Number: LRT-SU360

Order number: UFO solar wall lamp

Origin: Mainland China

Outline size: 14*6*18

Place of Origin: China

Power Source: Solar

Protection Level: IP65

Solar Cell Type: Lithium Battery

Style: Contemporary

Use: EMERGENCY

Voltage: 5V,3.7

Warranty: 1

purpose: Courtyard lighting

the protection grades: IP65

type: solar wall light

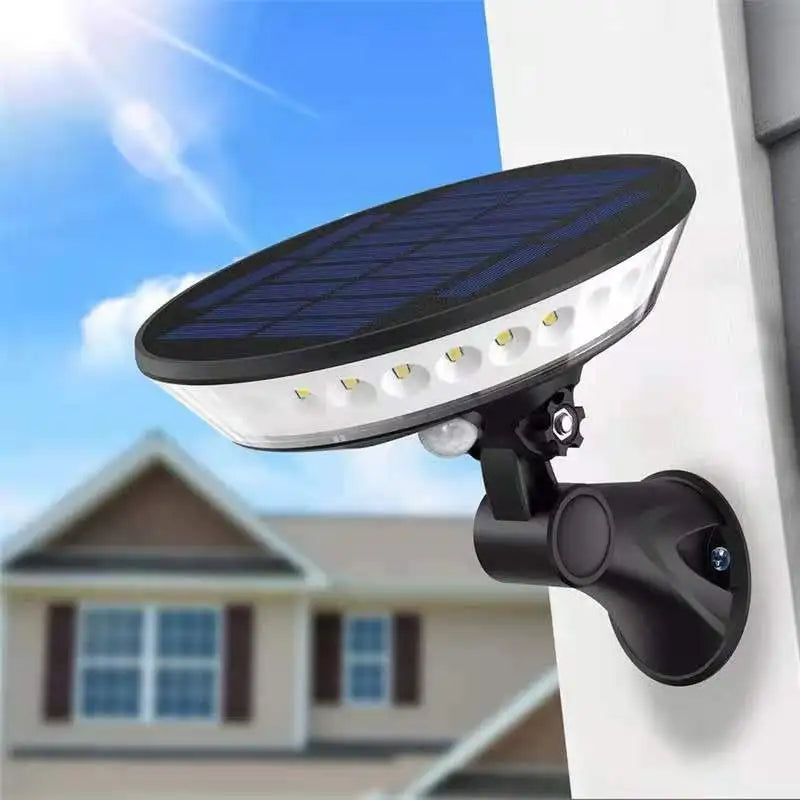

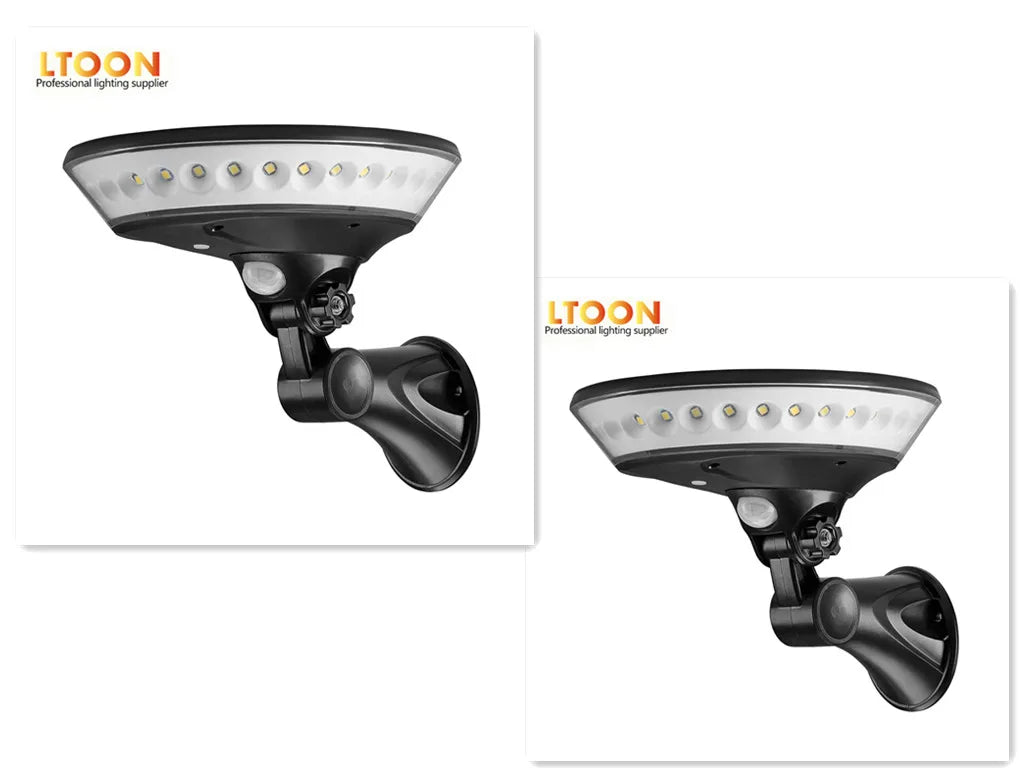

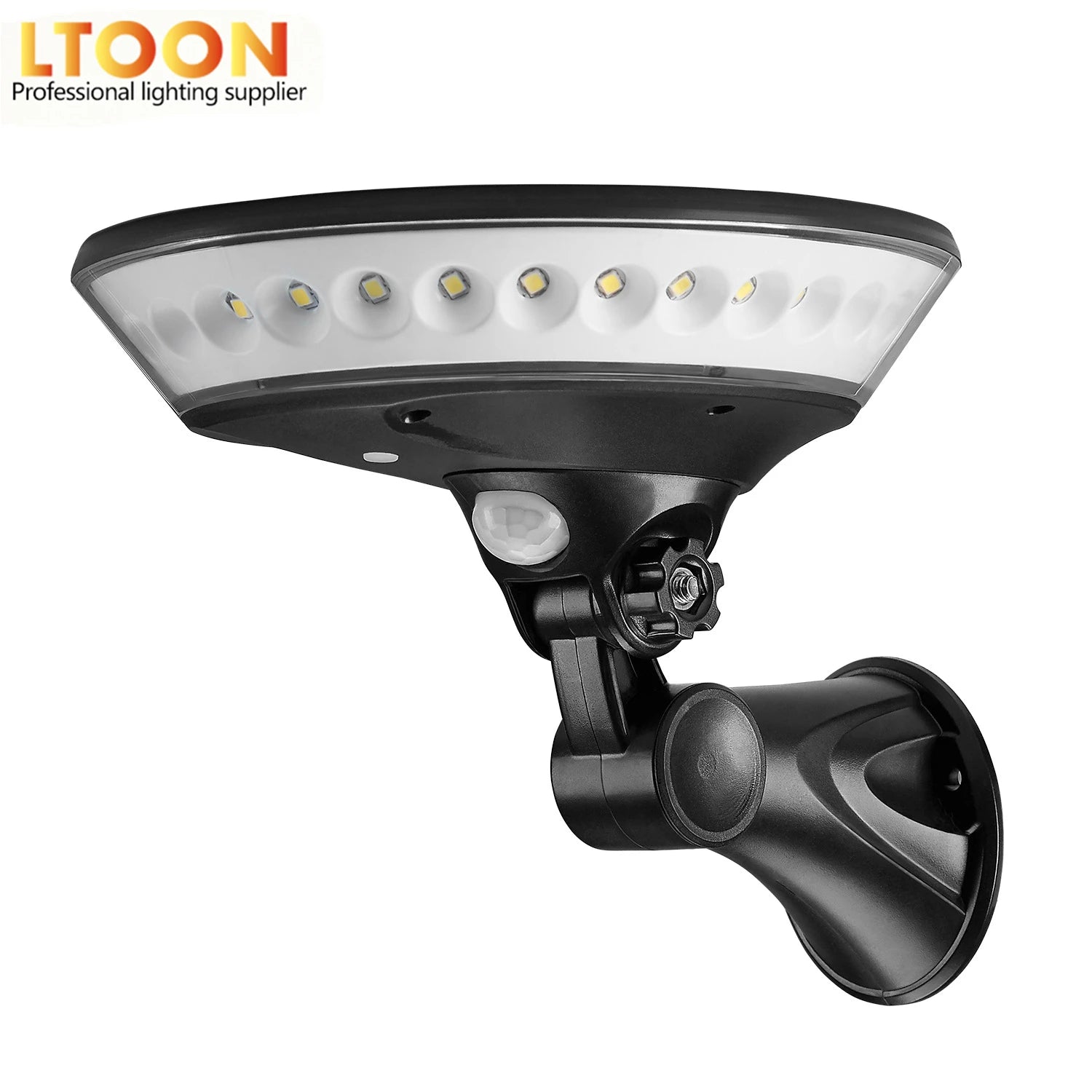

LTOON 360 degree lighting outdoor solar light PIR motion sensor solar garden light energy saving street lamp wall lamp Three modes

 Specifications:

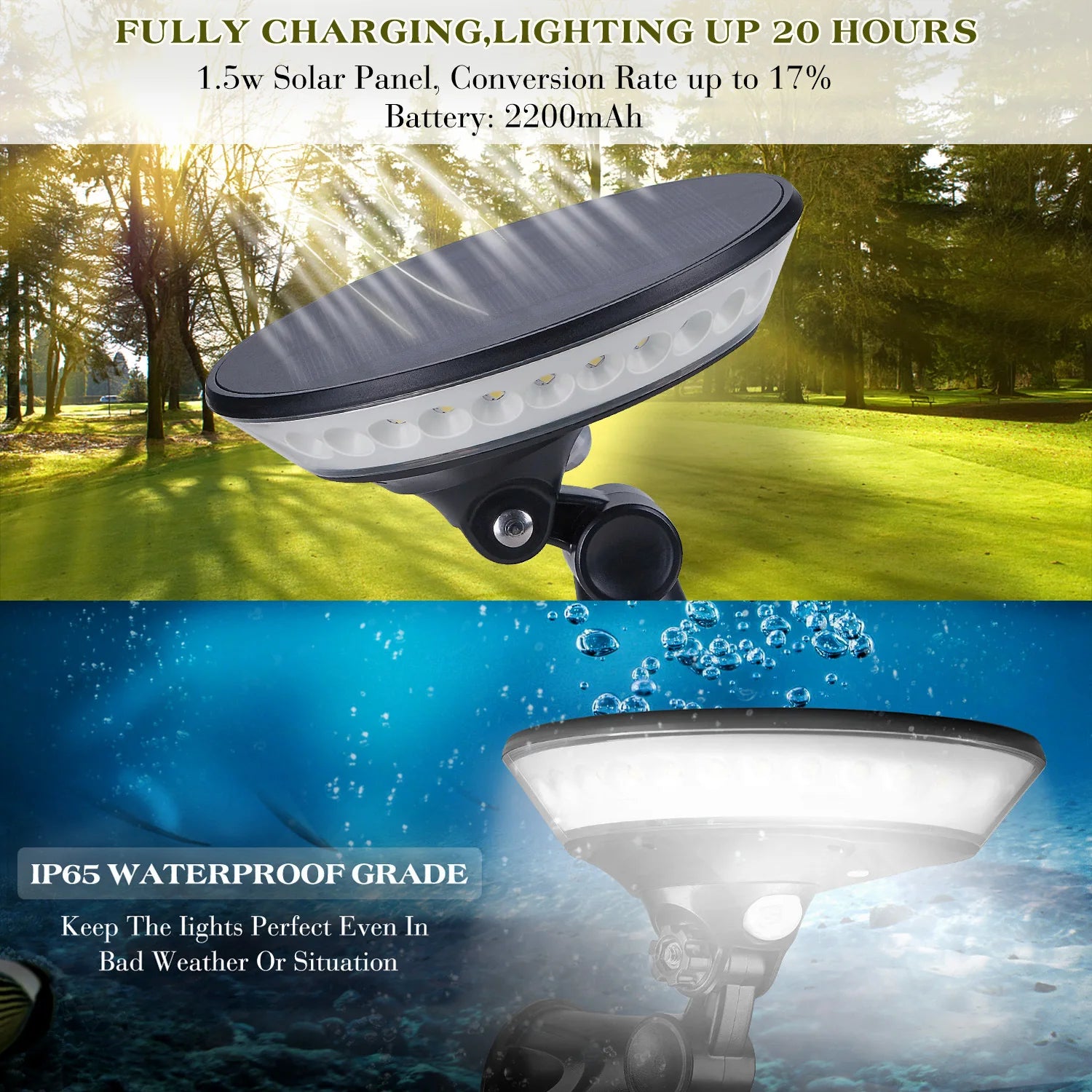

1. Solar panel: 1.5W; 5.5V
2. Battery: 2200mAh; 3.7V
3. Sensing distance and angle: 3-8 meters and 120°
4. Light effect: Highlight 450lm; Medium bright 80lm
5. Material: ABS
6. Color temperature: 6000±355k

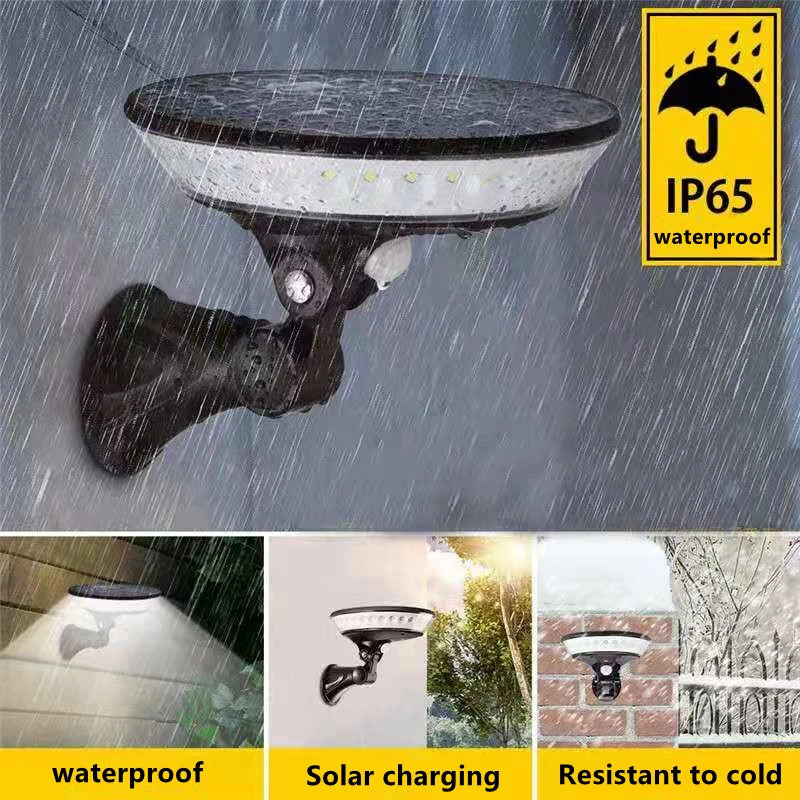

7. Waterproof rating : IP65
8. 3 sensing modes

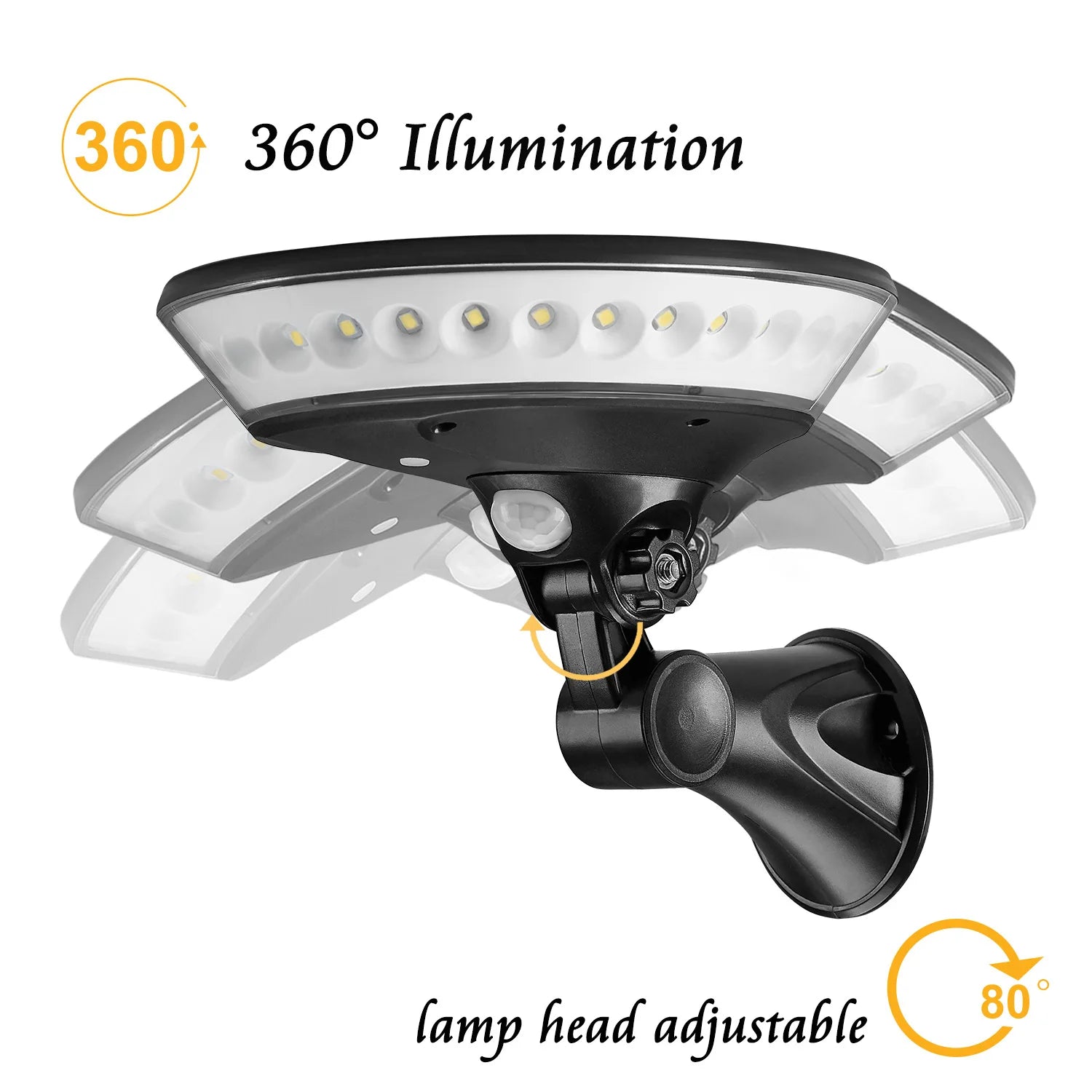

9. 360 degree lighting design: enhance the beauty of the product and the lamp
10. Product weight: 0.35kg; Packing specification: 14.8*7.6*16.6cm



How to use:

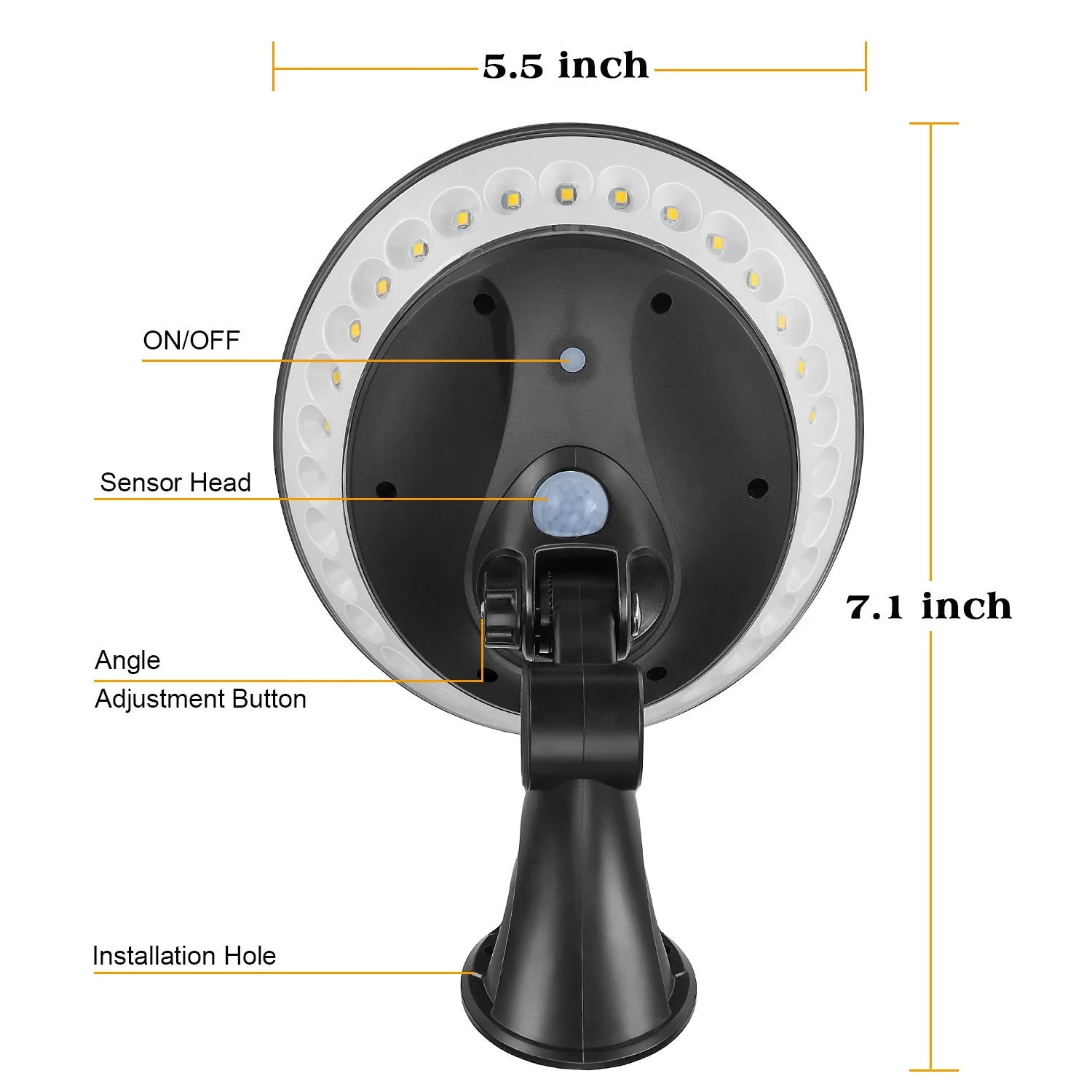

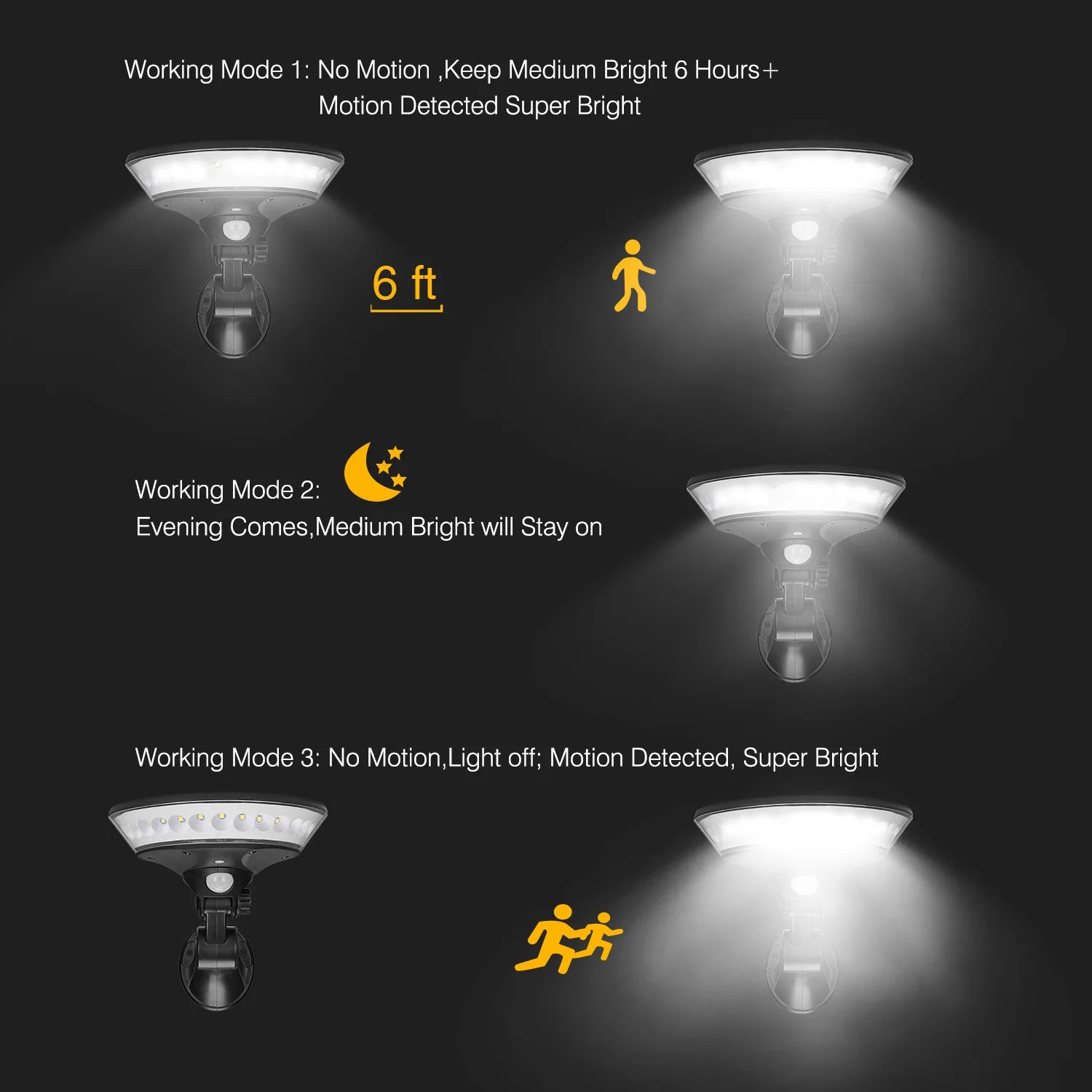

1. Frist,install in a place exposed to direct sunlight and charge for 8 hours or more.2. Press the ON/OFF switch for 2 to 3 seconds to turn on the power.3. Short press ON/OFF botton to switch 3 modes (DIM mode -- always on -- sensor mode -- off )Please note: Because it does not light in day time or bright places,You can cover the panel and try it.

Advantages

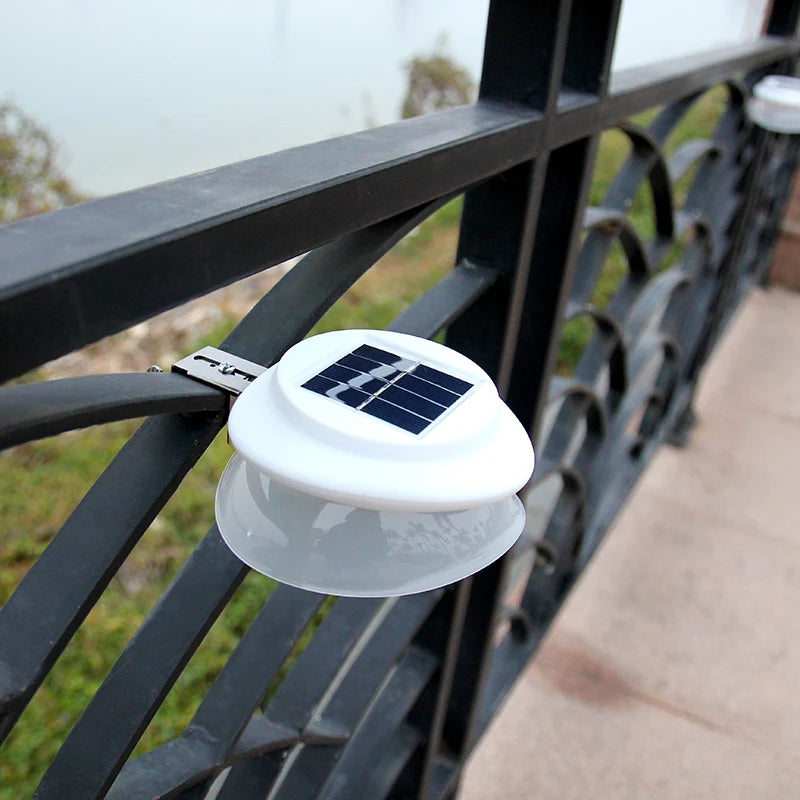

1.Parameter With solar charging, it is no need for arranging wires. The working life is long and it is no need to replace batteries; it is

suitable for outdoor fence wall lamp and garden fence lamp.

2.The product passed the CE,ROHS,FCC Certification.

3.Good water-proof for all weather usage outside; the concealed wall-mounting design contributes to convenient installation

and fashionable appearance.

Light control function

1.Light source:SMD2835*9LED 100LM

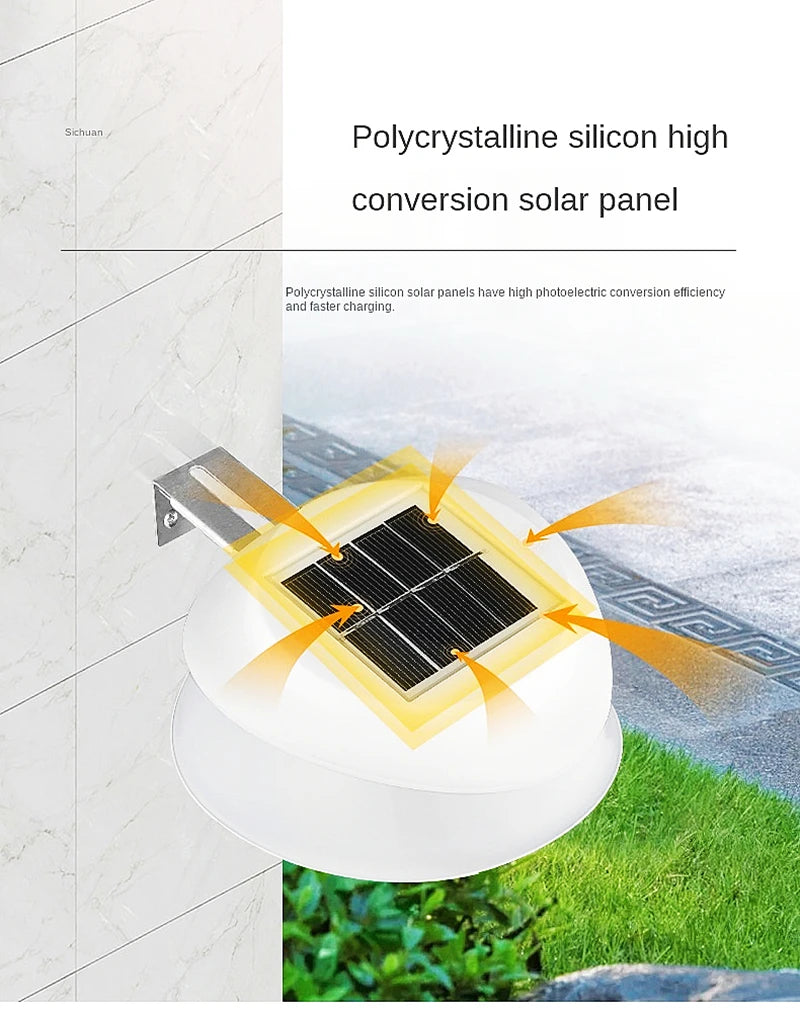

2.Solar plate:poly-silicon 2V/250mA

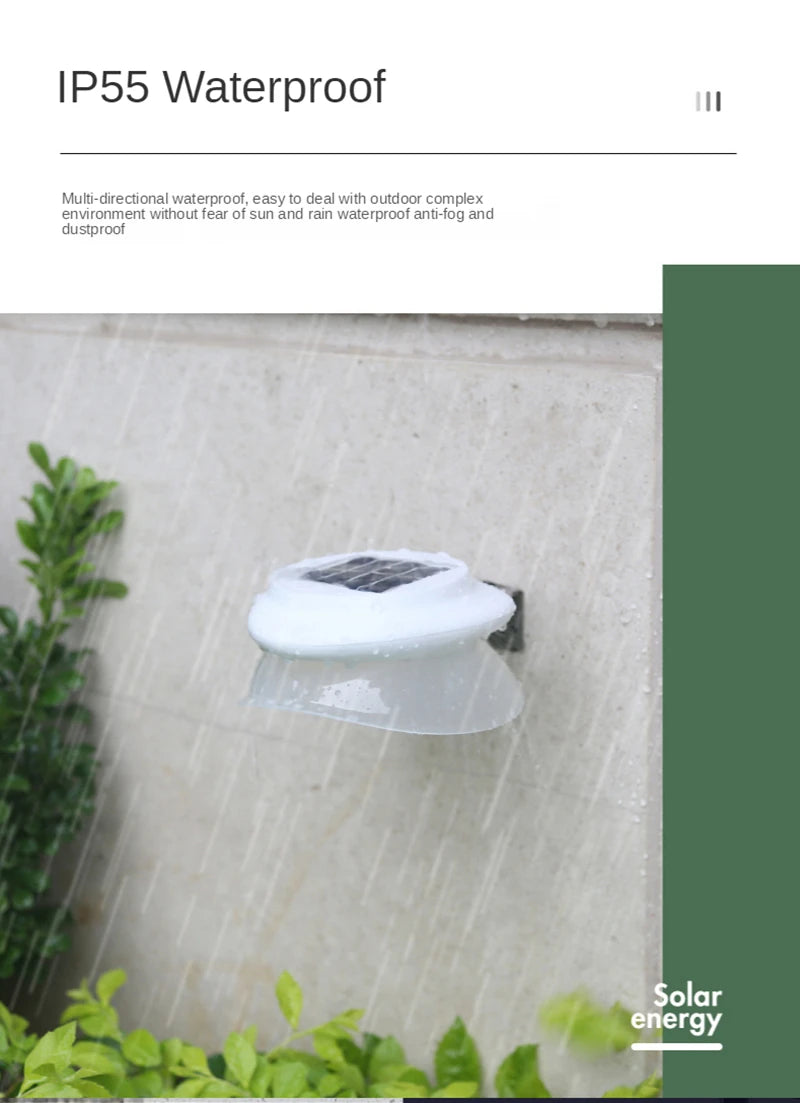

3.Waterproof:Ip55

4.Material:ABS,acrylic

5.Charge time:6~8H

6.Using time:>8H

7.Accumulator:Ni-MH/AA/1.2V*1600mA

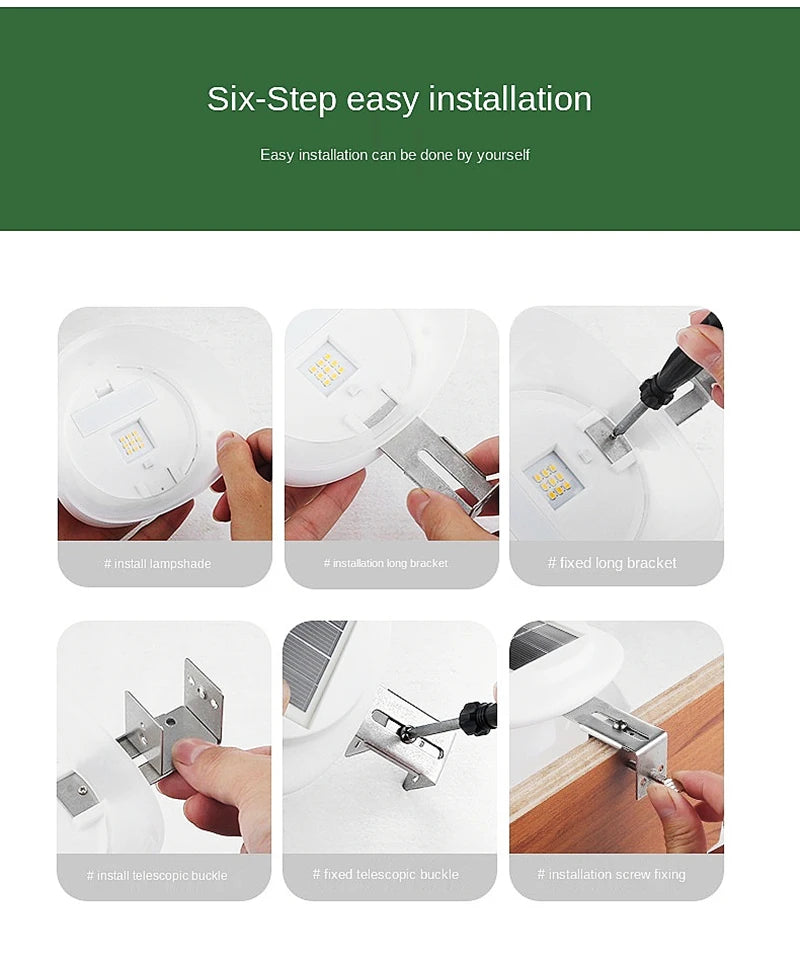

Installation and Operation Instructions (attached figure)

LInstall the plastic lamp cover on the lamp body(as figure step 1)

2.Leave the switch to "ON"position,place the solar light under the direct sunlight to be full charged (about 8-12hours)

before you install it for use

3.Take out the expansion particle in the installation package, hit it into the per-drilled hole in the wall ,lock the product in the wall

with screw though the screw holes in the product with a screw driver, if the mounting surface is wooden, the expansion particie

is no necessary.(as figure A & B)

4Inset the mounting bracket into mounting slot in the lamp, and then with racket sharp screw to securely fix the bracket in the

the gutter or fence (as figure C&D)

5After the installation,the product turns into automatically light-operated mode. In the daytime, it turns off and charges

automatically; in the nights, it turns on automatically.

Product Description Details

Components:

③Long Mounting Bracket (1 Pc)

⑧LED Lights(9pcs)

② Short Mounting Bracket (1pc)

⑨Battery Compartment

③Mounting Slot (insertion Bracket)

⑩ Solar Panel

④Screw Hole For Flush Mounting

⑪ Solar Lamp Body

⑤Plastic Lamp Cover

@Installation Package:

a:Expansion particle 2pcs

⑥Rechargeable Battery(1pc)

b:Ø3*14mm tapping screws 2pcs

⑦ON-OFF Switch

c:Ø2*6mm tapping screws 1pc

d:Ø5*6mm machine screws 1pc

e:Ø5*25mm racket screws 1pc

Attention

1.Please keep the surface of solar panel clean ,to make sure the solar panel absorb sunlight effectively

2.Far from fire source , otherwise the accumulator may be explosive.

3.Please take out the battery if you plan to stop using the product for a long time,and charge the battery every 3 months,otherwise

accumulator life performance would be effected adversely.

4.Avoid usage in high temperature,humidity and corrosive environment ,otherwise parts may be damaged.

5. Install the solar product in an area where it can get direct sunlight.

6. Select an outdoor location away from other light source at night such as street lights. It may cause the product not to

turn on automatically at night.

7. Duration of light depends on solar product' s level of sunshine exposure,geographical locations,weather conditions

and the hours of daylight.
