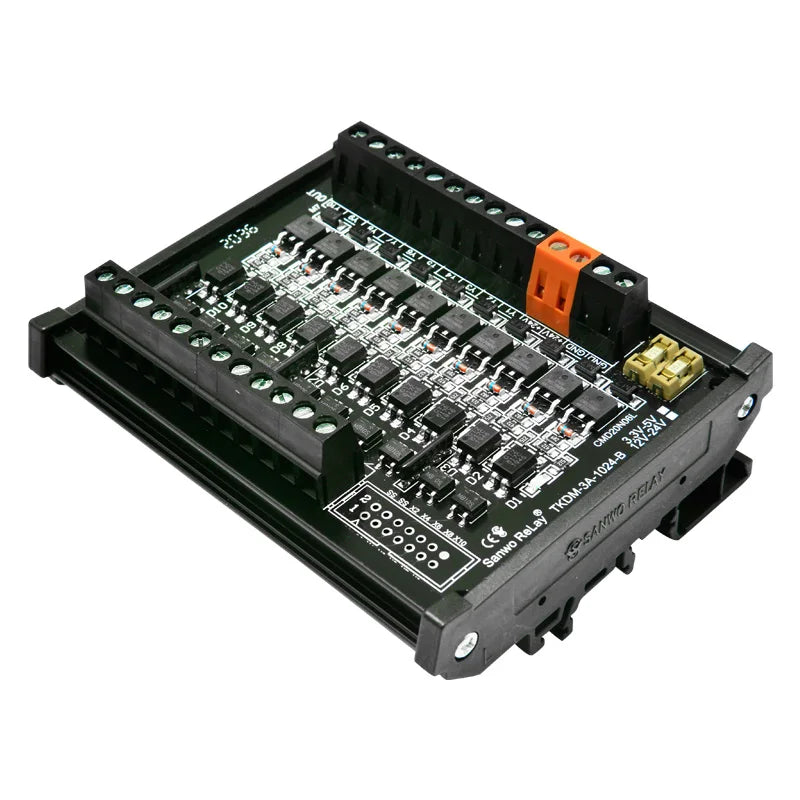

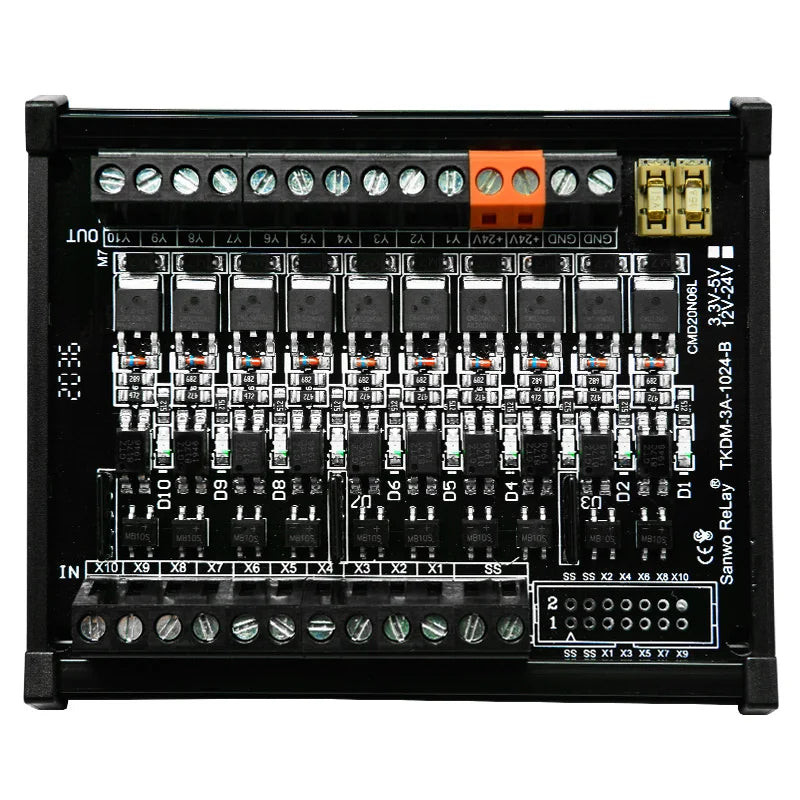

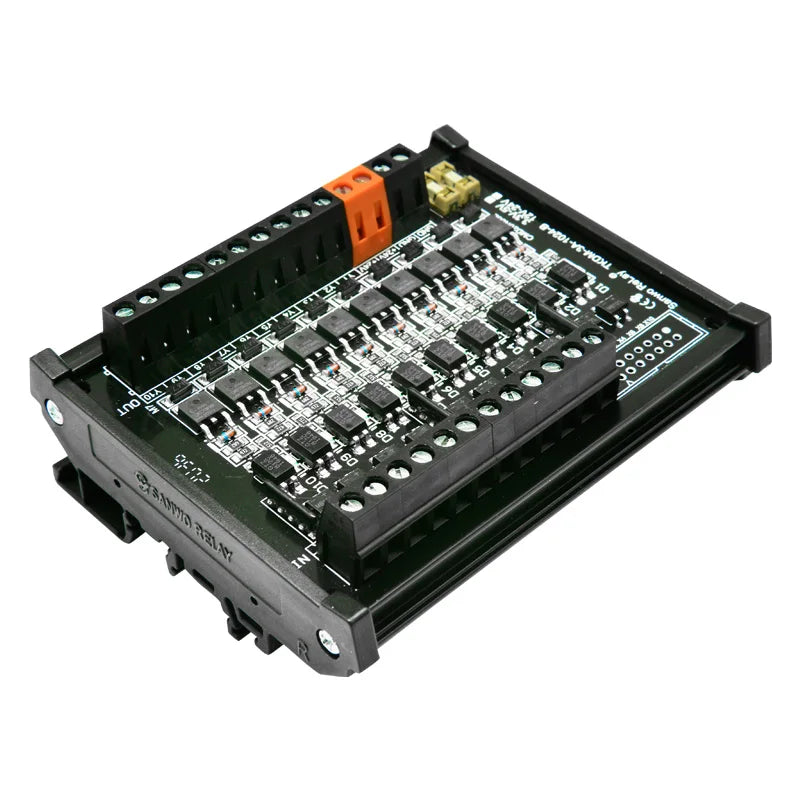

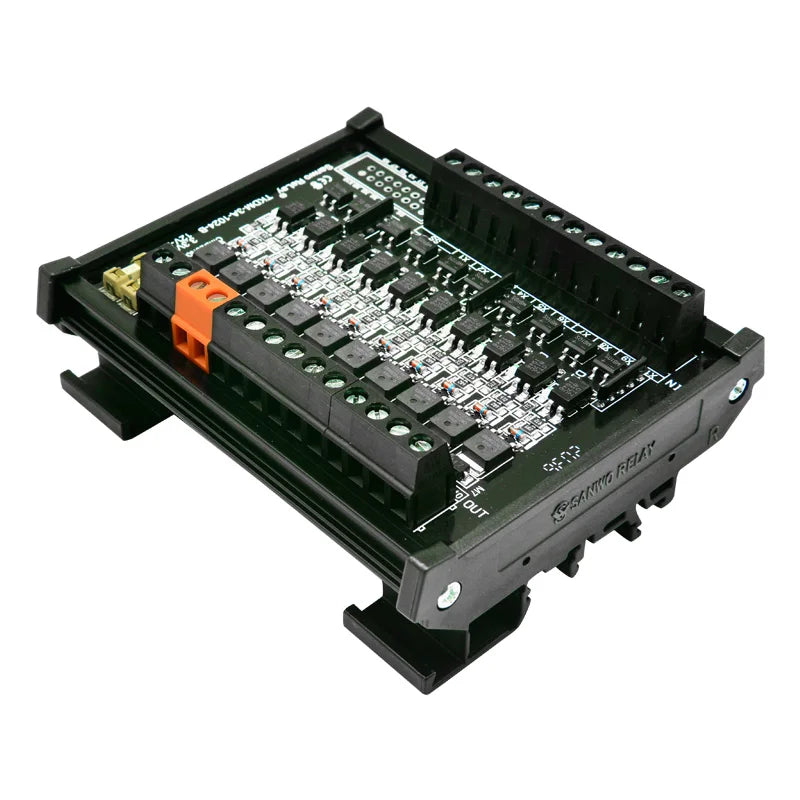

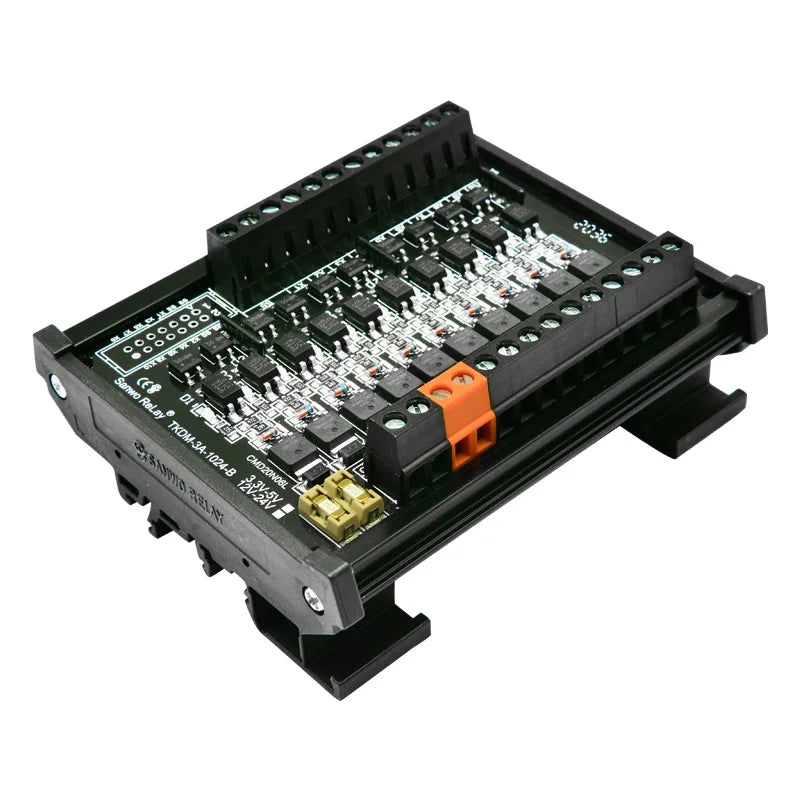

10 channels 3A Optocoupler Isolation Amplifier Relay Module with Safety Tube Solenoid Valve Single Chip Microcomputer Control Bo
10 channels 3A Optocoupler Isolation Amplifier Relay Module with Safety Tube Solenoid Valve Single Chip Microcomputer Control Bo
Regular price
$24.00 USD
Regular price
$36.00 USD
Sale price
$24.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Application: Put the signal on
Brand Name: SANWO RELAY
Model Number: TKDM-3A
Place of Origin: Guangdong, China
Type: Operational Amplifiers

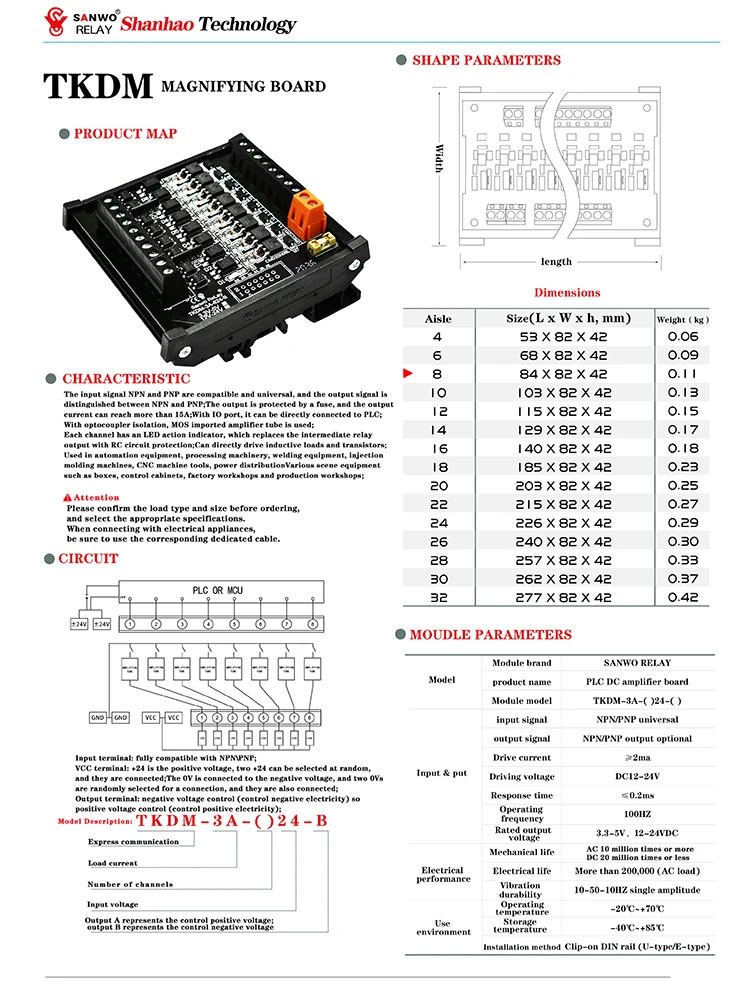

| Product name | PLC DC 3A amplifier board |
| Product model | TKDM-3A-()24() |
| Input signal | NPN / PNP universal |
| output signal | NPN / PNP output optional |
| Driving current | ≥2ma |
| driving voltage | DC12V~24V |
| Corresponding time | ≤0.2ms |
| switching frequency | 100HZ |
| Output rated current | 3.3V~5V,12~24VDC |
| working temperature | -20°C~+70°C |
| Storage temperature | -40°C~+85°C |
| Installation mode | C45 guide rail installation |
